2805415
Official DistributorSKU
PHX2805415
MPN
FLT-CP-1S-BE
Weight
0.348 kg
Series FLT-CP

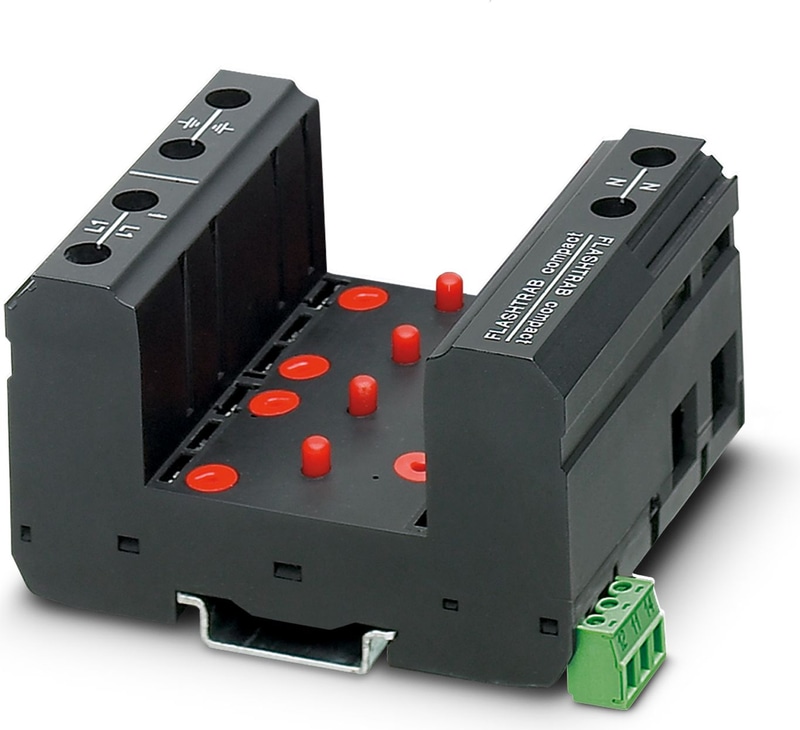

FLT-CP-1S-BE - Base element
Base element for type 1+2 arrester combinations of the FLASHTRAB compact series of products. Version for 1-phase power supply units with separate cable routing of N and PE.
Technical Specifications
Product properties
| IEC test classification | I + II |
| IEC test classification | T1 + T2 |
| Surge protection fault message | Remote indication contact |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
| Nominal voltage UN | 240 V AC |
Indicator/remote signaling
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact |
| Operating Voltage | 12 V AC ... 250 V AC |
| Operating Voltage | 125 V DC (200 mA DC) |
| Operating current | 10 mA AC ... 1 A AC |
| Operating current | 1 A DC (30 V DC) |
Connection data
| Connection Method | Screw terminal blocks |
| Screw thread | M5 |
| Tightening torque | 4.5 Nm |
| Stripping length | 18 mm |
| Conductor cross section flexible | 2.5 mm² ... 25 mm² |
| Conductor cross section rigid | 2.5 mm² ... 35 mm² |
| Conductor cross section AWG | 13 ... 2 |
Remote fault indicator contact
| Connection Method | Plug-in/screw connection via COMBICON |
| Screw thread | M2 |
| Tightening torque | 0.25 Nm |
| Stripping length | 7 mm |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
Material specifications
| Flammability rating according to UL 94 | V - 0 |
| CTI value of material | 600 |
| Insulating material | PBT |
| Material group | I |
| Housing Material | PBT |
Protective circuit
| Direction of action | 1L-N/PE |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous operating voltage UC (L-N) | 350 V AC |
| Maximum continuous operating voltage UC (N-PE) | 350 V AC |
| Rated load current IL | 125 A (< 55 °C) |
| Short-circuit current rating ISCCR | 25 kA |
| Max. backup fuse with V-type through wiring | 125 A (gG) |
| Max. backup fuse with branch wiring | 315 A (gG) |
Ambient conditions
| Degree of Protection | IP20 (only when all terminal points are used) |
| Ambient Temperature (Operation) | -40 °C ... -80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (asml) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g |
| Vibration (Operation) | 5g (10 ... 500 Hz) |
UL specifications
| Maximum continuous operating voltage MCOV (L-N) | 264 V AC |
| Maximum continuous operating voltage MCOV (N-G) | 264 V AC |
| Nominal frequency | 50/60 Hz |
UL indicator/remote signaling
| Operating Voltage | 125 V AC |
| AC operating current | 1.5 A AC |
UL connection data
| Tightening torque | 40 lbf-in. |
| Conductor cross section AWG | 12 ... 2 |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | DIN rail: 35 mm |
