3071400
Official DistributorSKU
PHX3071400
MPN
CGS 50
Weight
0.432 kg

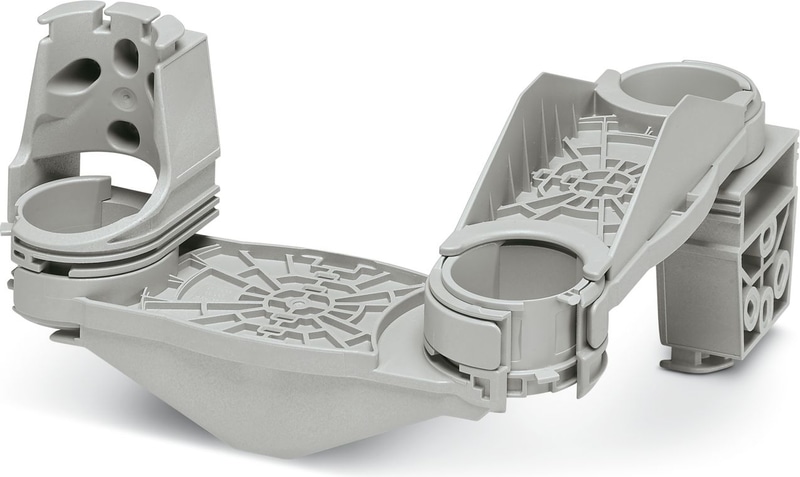

CGS 50 - Cable guiding system
Cable guiding system, with closed swivel joint, depth: 140.5 mm, width: 68 mm, height: 218 mm, diameter: 42 mm, color: gray
- High-grade elastic and mechanically resilient plastic, certified according to UL 94 for flammability rating: V0
- Mechanical cable protection and bundling, thanks to protective covers that can be attached without tools
- Integrated flanges with strain relief make assembly quick and easy
- Easily plan cable harnesses: the cable length is predefined through the swivel arm
- Cable routing for the control cabinet door can be planned in the CAD system, thanks to the defined installation space and swivel range
- Route preassembled cables and wires easily, thanks to the patent-pending swivel joint
Technical Specifications
Notes
| General | Cable binders can be used up to a width of 4 mm and from a length of 40 mm |
Product properties
| Number of cables | 100 for 1.5 mm² |
Dimensions
| Width | 68 mm |
| Height | 218 mm |
| Depth | 140.5 mm |
| Cable Length | 700 mm ... 460 mm |
| Drill hole distance, horizontal | 25 mm |
| Drill hole distance, vertical | 25 mm |
| Diameter | 42 mm |
| Hole diameter | 5.5 mm |
Material specifications
| Color | gray |
| Material | PC |
| Flammability rating according to UL 94 | V0 |
| Components | halogen-free |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Accessories
CGS-AH 50 SET - Cover, packed in pairs, depth: 54.5 mm, width: 63 mm, height: 214 mm, color: gray
Why Proax for Phoenix Contact 3071400?
Proax is an authorized distributor of Phoenix Contact 3071400 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
