3034441
Official DistributorSKU
PHX3034441
MPN
C-ME 6/1
Weight
0.001 kg
Series C-ME

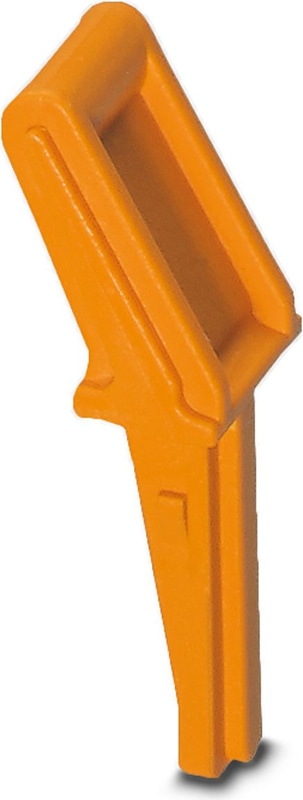

C-ME 6/1 - Operating lever
Operating lever, for switching test disconnect terminal blocks on and off
Technical Specifications
Product properties
| Number of Positions | 1 |
Dimensions
| Width | 8.1 mm |
| Height | 7.7 mm |
| Depth | 23.1 mm |
Material specifications
| Color | orange |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
