2908679
Official DistributorSKU
PHX2908679
MPN
VAL-MS 3+V-BE-FM/10
Weight
0.264 kg
Series VAL-MS

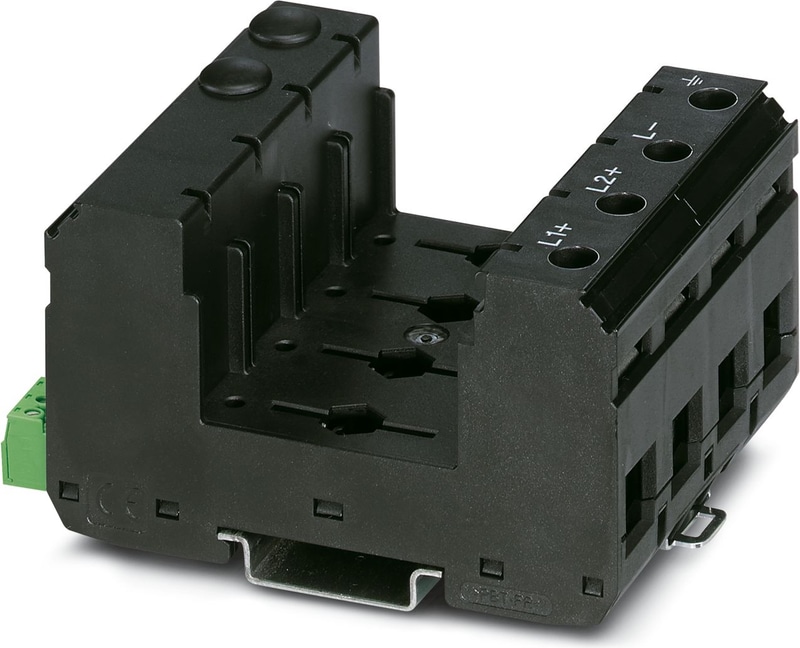

VAL-MS 3+V-BE-FM/10 - Surge protection base-element
Base element for surge protective devices, for isolated 1000 V DC voltage systems, for DIN rail mounting, 4-pos. base element with remote indication contact, for protecting two parallel strings/MPP trackers.
Technical Specifications
General
| Note | The device is intended for touch proof installation in a housing. Ensure that there is a gap of at least 8 mm between the active and grounded parts in the connection area. |
Product properties
| Product family | VALVETRAB MB |
| IEC test classification | PV T1 |
| IEC test classification | PV T2 |
| EN type | T2 |
| Type | Base element, DIN rail mounting |
| Distance between live and grounded parts | 8 mm |
| Number of Positions | 3 |
| Installation location | Interior |
| Installation location of the disconnect device | Internal |
| Accessibility | Accessible |
| Connection configuration | Y configuration |
| SPD failure behavior | OCFM (Only in combination with VAL-MS...DC-PV-ST) |
| Surge protection fault message | Remote indication contact |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Indicator/remote signaling
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact |
| Operating Voltage | 5 V AC ... 250 V AC |
| Operating Voltage | 30 V DC |
| Operating current | 5 mA AC ... 750 mA AC |
| Operating current | 1 A DC |
Connection data
| Connection Method | Screw connection |
| Screw thread | M5 |
| Tightening torque | 3 Nm (1.5 mm² ... 16 mm²) |
| Tightening torque | 4.5 Nm (25 mm² ... 35 mm²) |
| Stripping length | 16 mm |
| Conductor cross section flexible | 1.5 mm² ... 25 mm² |
| Conductor cross section rigid | 1.5 mm² ... 35 mm² |
| Conductor cross section AWG | 15 ... 2 |
| Connection Method | Fork-type cable lug |
| Conductor cross section flexible | 1.5 mm² ... 16 mm² |
Remote fault indicator contact
| Connection Method | Plug-in/screw connection via COMBICON |
| Screw thread | M2 |
| Tightening torque | 0.25 Nm |
| Stripping length | 7 mm |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
Dimensions
| Width | 71.2 mm |
| Height | 98.7 mm |
| Depth | 51.5 mm (incl. DIN rail 7.5 mm) |
| Horizontal pitch | 4 Div. |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PBT |
| Material group | I |
| Housing Material | PBT |
Mechanical data
| Open side panel | No |
Protective circuit
| Mode of protection | (L+) - (L-) |
| Mode of protection | (L+) - PE |
| Mode of protection | (L-) - PE |
| Rated load current IL | 80 A |
PV protective circuit
| Connection configuration | Y configuration |
| SPD failure behavior | OCFM (Only in combination with VAL-MS...DC-PV-ST) |
Protective circuit DC voltage side (DC)
| Rated load current IL | 80 A |
| Maximum continuous operating voltage UCPV | 1170 V DC |
Ambient conditions
| Degree of Protection | IP20 (only when all terminal points are used) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (Operation) | 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
EN 61643-31
| Standards/specifications | EN 61643-31 |
| Note | 2019 |
| Standards/specifications | IEC 61643-31 |
| Note | 2018 |
Mounting
| Mounting Type | DIN rail: 35 mm |
Why Proax for Phoenix Contact 2908679?
Proax is an authorized distributor of Phoenix Contact 2908679 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
