2906944
Official DistributorSKU
PHX2906944
MPN
UM-D37SUB/M/HC3/DI24V/MR/SI/MT
Weight
1.094 kg
Series UM-D

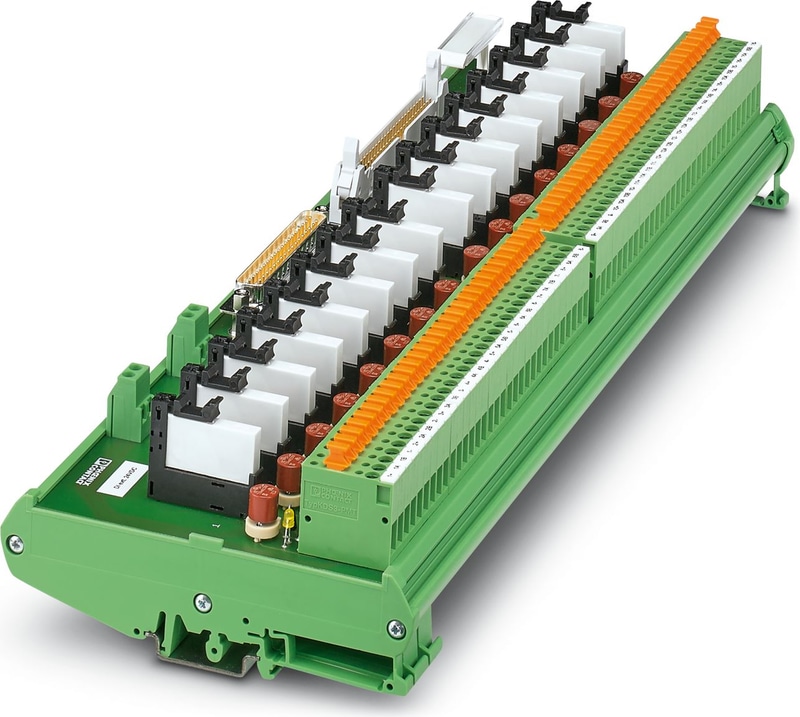

UM-D37SUB/M/HC3/DI24V/MR/SI/MT - Active module
16-channel relay module for Honeywell C300 input modules. The module is controlled by the control system via 37-pos. D-SUB or 50-pos. FLK. A screw connection with knife disconnection is available in the field. Module width: 343 mm
Documents
Technical Specifications
Product properties
| No. of channels | 16 |
| Operating mode | 100% operating factor |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Rated surge voltage | 0.6 kV |
Supported controller HONEYWELL Experion PKS C300/C-Series
| Suitable I/O card | TDIL01 (non-redundant) |
| Suitable I/O card | TDIL11 (redundant) |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.85 ... 1.1 |
| Input voltage range | 20.4 V DC ... 26.4 V DC |
| Typical input current at UN | 6.5 mA |
| Typical response time | 5 ms |
| Typical release time | 7 ms |
| Protective circuit | Fuse |
| Protective circuit | Freewheeling diode |
| Protective circuit | Reverse polarity protection |
| Status display/channel | Yellow LED |
Switching
| Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact |
| Contact Material | Ag alloy, hard gold-plated |
| Maximum Switching Voltage | 36 V DC |
| Minimum Switching Voltage | 100 mV (12 V DC with damaged gold coating) |
| Limiting Continuous Current | 50 mA (500 mA with damaged gold coating) |
| Min. switching current | 1 mA (10 mA with damaged gold coating) |
| Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) |
Controller level
| Connection Method | D-SUB pin strip |
| Number of Connections | 1 |
| Number of Positions | 37 |
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Pitch | 2.54 mm |
Field level
| Connection Method | Screw connection with disconnect knife |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display present | Yes |
Dimensions
| Width | 343.5 mm |
| Height | 125.5 mm |
| Depth | 65.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -15 °C ... 50 °C |
| Ambient temperature (storage/transport) | -15 °C ... 50 °C |
Standards and Regulations
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly note | in rows with zero spacing |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Accessories
VF-SI/TR5/0,05AT - Fuse set, number: 8 Pcs., fuse type: Fuse (TR5), nominal current: 0.05 A, tripping characteristic: slow-blow (T)
