UM-D37M/DS/FU/LED/AID16/C300/L

Weight

0.641 kg

Series UM-D

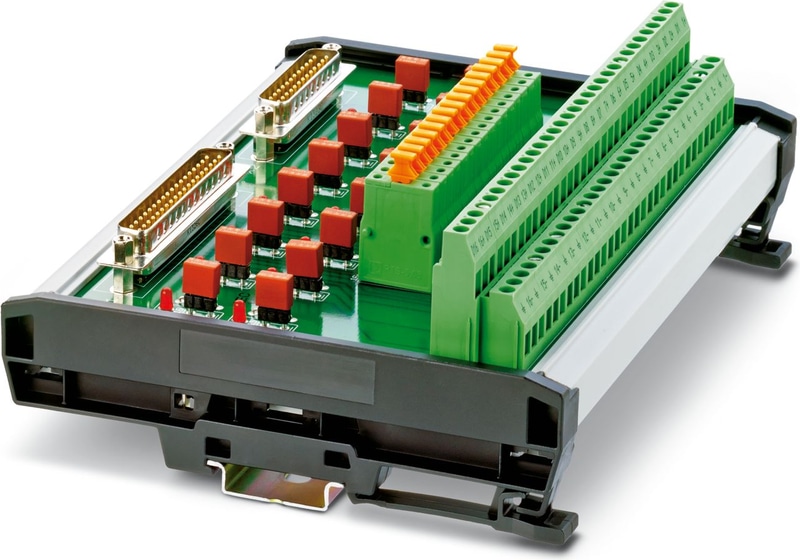

UM-D37M/DS/FU/LED/AID16/C300/L - Interface module

VARIOFACE module intended for use with Honeywell Experion C300 16-channel analog input cards. Channels 1 to 16 feature differential inputs.

These VARIOFACE modules are used in combination with the relevant front adapters
UM-PRO housing
DIN rail mounting, includes grounding foot
LED blown fusing indication
Per channel shield connection
Per channel disconnects with test points
Per channel pluggable 500 mA fusing

Product properties

Number of Positions	37
No. of channels	16

Electrical properties

Nominal voltage U_N	24 V DC
Max. current carrying capacity per branch	500 mA (fuse limited)

Supported controller HONEYWELL Experion PKS C300/C-Series

Suitable I/O card	TAID01 (non-redundant)
Suitable I/O card	TAID11 (redundant)

Supported controller HONEYWELL Experion LX Series 8

Suitable I/O card	8X-TAIDA1
Suitable I/O card	8X-TAIDB1

Field level

Connection Method	Screw connection with disconnect knife
Stripping length	8 mm
Screw thread	M 3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12

Controller level

Connection Method	D-SUB pin strip
Number of Connections	1
Number of Positions	37
Connection Method	D-SUB pin strip
Number of Connections	1
Number of Positions	25

Signaling

Status display present

Yes, if the fuse fails

Item dimensions

Width	184 mm
Height	142.3 mm
Depth	65.6 mm

Ambient conditions

Ambient Temperature (Operation)	-40 °C ... 60 °C
Ambient temperature (storage/transport)	-40 °C ... 75 °C

Standards and Regulations

Standards/regulations

DIN EN 50178

Mounting

Mounting Type	DIN rail mounting
Assembly instructions	in rows with zero spacing
Mounting Position	any

Notes

Notes on operation

For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

2305509
Cable - CABLE-D37SUB/B/B/ 100/KONFEK/S
2305512
Cable - CABLE-D37SUB/B/B/ 200/KONFEK/S
2305525
Cable - CABLE-D37SUB/B/B/ 300/KONFEK/S
2900759
Cable - CABLE-D37SUB/B/B/ 400/KONFEK/S
2900760
Cable - CABLE-D37SUB/B/B/ 600/KONFEK/S
2900761
Cable - CABLE-D37SUB/B/B/ 800/KONFEK/S
2900762
Cable - CABLE-D37SUB/B/B/1000/KONFEK/S
2900763
Cable - CABLE-D37SUB/B/B/1500/KONFEK/S
2900764
Cable - CABLE-D37SUB/B/B/2000/KONFEK/S
2902074
CABLE-D37SUB/B/B/2500/KONFEK/S - Assembled shielded round cable; connection 1: D-SUB socket strip (1x 37-position); connection 2: D-SUB socket strip (1x 37-position); cable length: 25 m
2902075
CABLE-D37SUB/B/B/3000/KONFEK/S - Assembled shielded round cable; connection 1: D-SUB socket strip (1x 37-position); connection 2: D-SUB socket strip (1x 37-position); cable length: 30 m
2902076
CABLE-D37SUB/B/B/3500/KONFEK/S - Assembled shielded round cable; connection 1: D-SUB socket strip (1x 37-position); connection 2: D-SUB socket strip (1x 37-position); cable length: 35 m
2902077
CABLE-D37SUB/B/B/4000/KONFEK/S - Assembled shielded round cable; connection 1: D-SUB socket strip (1x 37-position); connection 2: D-SUB socket strip (1x 37-position); cable length: 40 m
2908516
Cable - CABLE-D37SUB/B/B/HF/S/ 1,0M
2908517
Cable - CABLE-D37SUB/B/B/HF/S/ 2,0M
2908518
Cable - CABLE-D37SUB/B/B/HF/S/ 3,0M
2908522
Cable - CABLE-D37SUB/B/B/HF/S/10,0M
2908523
Cable - CABLE-D37SUB/B/B/HF/S/15,0M
2908525
Cable - CABLE-D37SUB/B/B/HF/S/20,0M
2908526
Cable - CABLE-D37SUB/B/B/HF/S/25,0M
2305473
Cable - CABLE-D25SUB/B/B/100/KONFEK/S
2305486
Cable - CABLE-D25SUB/B/B/200/KONFEK/S
2305499
Cable - CABLE-D25SUB/B/B/300/KONFEK/S
1066657
Cable - CABLE-D25SUB/B/B/HF/S/ 1,0M
1066660
Cable - CABLE-D25SUB/B/B/HF/S/ 2,0M
1066664
Cable - CABLE-D25SUB/B/B/HF/S/ 3,0M
