2906324
Official DistributorSKU
PHX2906324
MPN
VAL-MS TE-AR/75X350/3EQP/FM
Weight
0.222 kg
Series VAL-MS-TE-AR

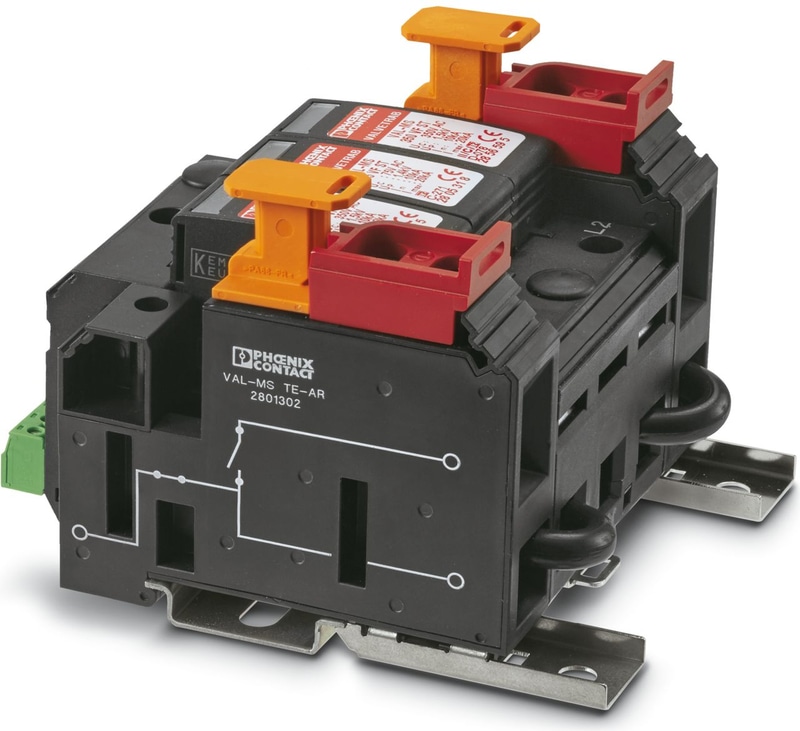

VAL-MS TE-AR/75X350/3EQP/FM - Type 2 surge protection base element
Equalizer surge protective device assembly, 3-mode, type 2 arresters for 2-wire signals up to 75 V with field disconnect terminals and form-C field monitor contact. Pass through layout separates field and house wires
- With floating remote indication contact
- Zero leakage current
- 3-Mode equalizer protection
- Field wire disconnect
- Pass-through for field-to-house isolation
Technical Specifications
Product properties
| Product family | VALVETRAB MS |
| IEC test classification | II |
| IEC test classification | T2 |
| EN type | T2 |
| EN type | T2 |
| Type | DIN rail module, one-piece |
| Number of Positions | 3 |
| Surge protection fault message | Optical, remote indicator contact |
Electrical properties
| Nominal voltage UN | 48 V AC/DC |
| Nominal voltage UN | 5 V AC ... 48 V AC |
| Nominal current IN | 76 A |
Indicator/remote signaling
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact, 1-pos. |
| Maximum operating voltage Umax. AC | 250 V AC |
| Maximum operating voltage Umax DC | 30 V DC |
| Max. operating current Imax | 1.5 A AC (250 V AC) |
| Max. operating current Imax | 1.5 A DC (30 V DC) |
| Operating Voltage | 5 V AC ... 250 V AC |
| Operating Voltage | 125 V AC (UL) |
| Operating Voltage | 30 V DC |
| Operating current | 5 mA AC ... 1.5 A |
| Operating current | 1 A (UL) |
| Operating current | 1 A |
House (L0)
| Connection Method | Screw terminal block |
| Tightening torque | 3 Nm ... 4.5 Nm (Ground) |
| Tightening torque | 1.5 Nm ... 1.8 Nm (House) |
| Tightening torque | 2.5 Nm ... 3 Nm (Field) |
| Conductor cross section flexible | 1.5 mm² ... 35 mm² (16 mm strip length) |
| Conductor cross section flexible | 0.5 mm² ... 15 mm² (10 mm strip length) |
| Conductor cross section flexible | 1.5 mm² ... 25 mm² (14 mm strip length) |
| Conductor cross section rigid | 1.5 mm² ... 35 mm² (16 mm strip length) |
| Conductor cross section rigid | 0.5 mm² ... 15 mm² (10 mm strip length) |
| Conductor cross section rigid | 1.5 mm² ... 25 mm² (14 mm strip length) |
| Conductor cross section AWG | 15 ... 2 (16 mm strip length) |
| Conductor cross section AWG | 20 ... 6 (10 mm strip length) |
| Conductor cross section AWG | 12 ... 4 (14 mm strip length) |
Remote fault indicator contact
| Connection Method | MC 1,5/3 |
| Screw thread | M2 |
| Tightening torque, min | 0.25 Nm |
| Tightening torque | 2 lbf-in. ... 4 lbf-in. (UL) |
| Stripping length | 7 mm |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section, rigid min. | 0.14 mm² |
| Conductor cross section, rigid max. | 1.5 mm² |
Dimensions
| Width | 89 mm |
| Height | 114 mm |
| Depth | 78 mm |
| Horizontal pitch | 5 Div. |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PBT/PA |
Protective circuit
| Direction of action | (L+)-PE & (L-)-PE & (L+)-(L-) |
| Nominal voltage UN | 5 V AC ... 48 V AC |
| Maximum continuous voltage UC | 60 V |
| Maximum continuous operating voltage UC (L-L) | 60 V |
| Maximum continuous operating voltage UC (L-PE) | 230 V |
| Maximum continuous operating voltage UC (L-PE) | 230 V |
| Rated load current IL | 80 A (Serial through wiring at 16 mm²) |
| Residual current IPE | ≤ 5 µA |
| Nominal discharge current In (8/20) µs (L-L) | 10 kA |
| Nominal discharge current In (8/20) µs (L-PE) | 10 kA |
| Maximum discharge current Imax (8/20) µs | 20 kA |
| Maximum discharge current Imax (8/20) µs (L-L) | 20 kA |
| Maximum discharge current Imax (8/20) µs (L-PE) | 20 kA |
| Short-circuit current rating ISCCR | 10 kA (L-L) |
| Short-circuit current rating ISCCR | 25 kA (L-PE) |
| Voltage protection level Up (L-L) | ≤ 1.4 kV |
| Voltage protection level Up (L-PE) | ≤ 1.5 kV |
| Response time tA | ≤ 25 ns |
| Total surge current (10/350) µs | 6 kA |
| Total surge current (8/20) µs | 50 kA |
| Max. backup fuse with V-type through wiring | 80 A (gL/gG) |
| Max. backup fuse with branch wiring | 200 A (gL/gG) |
Ambient conditions
| Degree of Protection | IP20 (Only when all disconnects are closed) |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Altitude | max. 3000 m |
| Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 5 % ... 95 % |
| Shock (operation) | 10g |
| Vibration (Operation) | 2g (0 Hz ... 200 Hz) |
Air clearances and creepage distances
| Standards/regulations | EN 60664-1 / EN 61643-1 |
Mounting
| Mounting Type | DIN rail mounting with additional retaining screw |
Accessories
FBS 2-18 - Plug-in bridge for cross-connections in the VAL-MS BE-AR terminal center, 2-pos., color: Red- FBS 2-18 - Plug-in bridge for cross-connections in the VAL-MS BE-AR terminal center, 2-pos., color: Red
Why Proax for Phoenix Contact 2906324?
Proax is an authorized distributor of Phoenix Contact 2906324 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
