2905652
Official DistributorSKU
PHX2905652
MPN
VAL-MS-T1/T2 BE/O-FM
Weight
0.101 kg
Series VAL-MS-T1

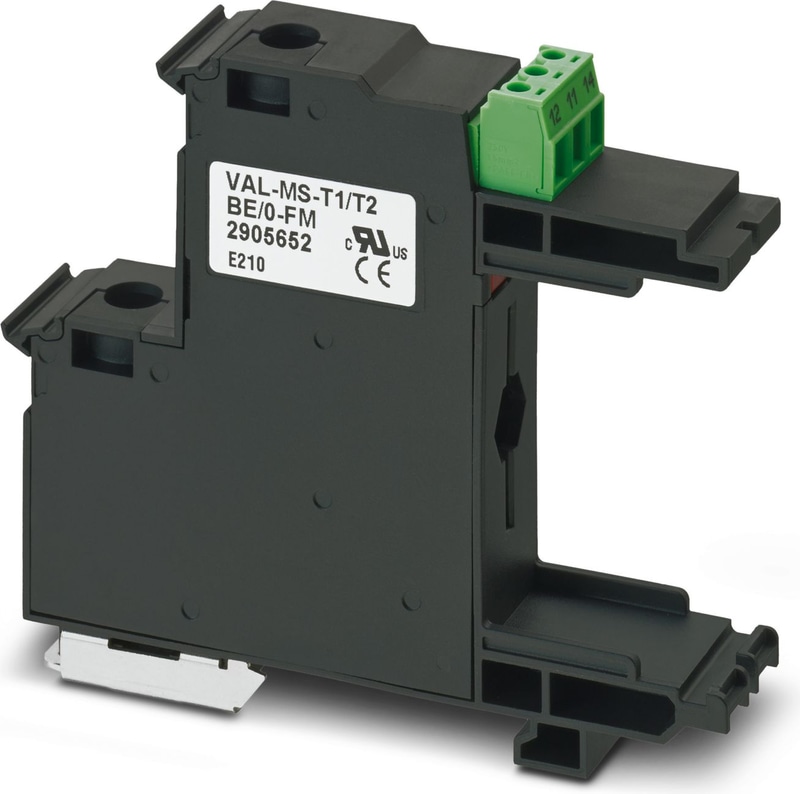

VAL-MS-T1/T2 BE/O-FM - Type 2 surge protection base element
Base element for type 1/2 arresters from the VALVETRAB MS T1/T2 product range, with remote indication contact. Version: 1-channel
- Rack-mount 2U panel applications
- Plug-in direction parallel to the conductor axis
- Versions with and without floating remote indication contact
- DIN rail mounting
- Accepts Type 1 and Type 2 VAL-MS plugs
- Coding when protective plug is inserted for the first time
Technical Specifications
General
| Note | For installation into a touch protected cabinet. For applications with UC > 500 V distances at the side and distances at the connection area must be minimum of 5 mm between different active parts including earthed parts. |
Product properties
| Product family | VALVETRAB MS |
| IEC test classification | I / II |
| IEC test classification | T1 / T2 |
| EN type | T1 / T2 |
| Type | Base element, DIN rail mounting |
| Number of Positions | 1 |
| Surge protection fault message | Remote indication contact |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
| Nominal voltage UN | 500 V AC |
Indicator/remote signaling
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact |
| Operating Voltage | 5 V AC ... 250 V AC |
| Operating Voltage | 125 V AC (UL) |
| Operating Voltage | 30 V DC |
| Operating current | 5 mA AC ... 1 A |
| Operating current | 1 A (UL) |
| Operating current | 1 A |
Connection data
| Connection Method | Biconnect terminal blocks |
| Screw thread | M5 |
| Tightening torque | 3 Nm ... 4.5 Nm (UL) |
| Tightening torque | 27 lbf-in. ... 40 lbf-in. (UL) |
| Stripping length | 16 mm |
| Conductor cross section flexible min. | 1.5 mm² |
| Conductor cross section flexible max. | 25 mm² |
| Conductor cross section, rigid min. | 1.5 mm² |
| Conductor cross section, rigid max. | 35 mm² |
| Conductor cross section AWG | 15 ... 2 (IEC) |
| Conductor cross section AWG | 10 ... 2 (UL) |
Remote fault indicator contact
| Connection Method | Screw connection |
| Screw thread | M2 |
| Tightening torque, min | 0.25 Nm |
| Tightening torque | 0.25 Nm |
| Stripping length | 7 mm |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section, rigid min. | 0.14 mm² |
| Conductor cross section, rigid max. | 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 (IEC) |
Dimensions
| Width | 17.6 mm |
| Height | 77.1 mm |
| Depth | 89.2 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PBT |
Mechanical data
| Open side panel | No |
Protective circuit
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 600 V AC |
| Rated load current IL | 80 A (with serial 16mm² through wiring) |
| Rated load current IL | 80 A (with serial 16mm² through wiring) |
| Short-circuit current rating ISCCR | 25 kA |
| Max. backup fuse with V-type through wiring | 80 A AC (gL/gG) |
| Max. backup fuse with branch wiring | 160 A (gL/gG) |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Altitude | max. 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g |
| Vibration (Operation) | 5g |
UL specifications
| SPD Type | 4 (for Type 2 applications) |
Standards and Regulations
| Standards/specifications | IEC 61643-1 |
| Note | 2005 |
| Standards/specifications | EN 61643-11/A11 |
| Note | 2007 |
Mounting
| Mounting Type | DIN rail: 35 mm |
| Mounting Position | Horizontal, flat-mounted DIN rail, NS 35 |
Accessories
MPB 18/1- 7 BU - Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 7-pos., color: Blue
MPB 18/1- 8 BU - Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 8-pos., color: Blue
MPB F200X16/ 1GS - Wiring bridge flexible, diameter 16 mm2, with a fork-type cable lug on one side, length: 200 mm- MPB F400X16/ 1GS - Wiring bridge flexible, diameter 16 mm2, with a fork-type cable lug on one side, length: 400 mm
- MPB F600X16/ 1GS - Wiring bridge flexible, diameter: 16 mm2, with a fork-type cable lug on one side, length: 600 mm
- MPB F600X16/ 1GS - Wiring bridge flexible, diameter: 16 mm2, with a fork-type cable lug on one side, length: 600 mm
- MPB F400X16/ 1GS - Wiring bridge flexible, diameter 16 mm2, with a fork-type cable lug on one side, length: 400 mm
- MPB F200X16/ 1GS - Wiring bridge flexible, diameter 16 mm2, with a fork-type cable lug on one side, length: 200 mm
Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 10 pitches with contact sequence 1-0-0
MPB 18/1-20/1.2.5 - Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 20 pitches with contact sequence 1-2-0-0-5
Why Proax for Phoenix Contact 2905652?
Proax is an authorized distributor of Phoenix Contact 2905652 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 12 |
