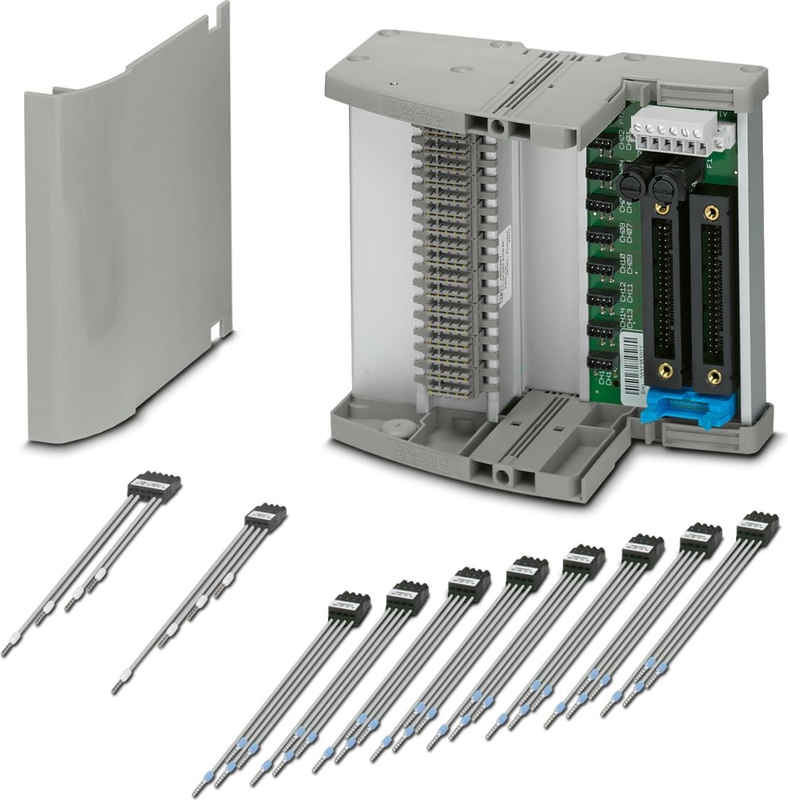

TC-2KS40-AI16-M-PRH-CS - Module carrier
Termination Carrier for redundantly connecting 16 MINI Analog signal conditioners to analog input cards of the Yokogawa Centum VP controller, via KS40 connector, 40-pos. Suitable for Yokogawa AAI143 cards.
- Mechanically decoupled, passive PCB
- Redundant system connection, 40-pos. (KS/AKB-compatible)
- Simple or redundant supply (decoupled from diode, protected against polarity reversal) and monitoring function implemented via separate DIN rail module
- FLK26 high-density HART connection
- Robust aluminum profile with integrated DIN rail
- Side parts with integrated end clamps
- Cable sets for signal connection are supplied as standard and do not have to be ordered separately
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Insulation characteristics
| Insulation | Basic insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Basic insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. permissible current | 23 mA (Signal/channel) |
| Nominal voltage UN | < 30 V DC (Per signal/channel) |
Air clearances and creepage distances
| Rated Insulation Voltage | 50 V |
| Rated surge voltage | 0.5 kV |
Supported controller YOKOGAWA CENTUM VP
| Suitable I/O card | AAI143 |
Supply
| Designation | Power module |
| Note | Power supply via 2902958 MINI MCR-SL-PTB-FM power terminal and 2902961 MINI MCR-SL-FM-RC-NC error signaling module. |
| Fuse | 2x 2.5 A on PCB, slow-blow (replaceable) |
| Input Voltage | 24 V DC |
| Input voltage range | 19.2 V DC ... 30 V DC |
| Input Current | ≤ 2 A |
| Redundant supply | yes, decoupled from diodes |
| Polarization and surge protection | Yes |
| Output name | Switching output |
| Contact switching type | 1 N/C contact (alarm = open) |
| Maximum Switching Voltage | 30 V DC (50 mA) |
Power supply
| Connection Method | Screw connection |
| Stripping length | 7 mm |
| Number of Connections | 1 |
| Number of Positions | 6 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Controller level
| Connection Method | Yokogawa KS-compatible |
| Number of Connections | 2 |
| Number of Positions | 40 |
Signaling
| Status display | 2 x red LED (error) |
| Status display | 2x green LEDs (PWR1 and PWR2) |
Dimensions
| Width | 147 mm |
| Height | 170 mm |
| Depth | 159.5 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C (Please observe module specifications) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (Operation) | 2g, according to IEC 60068-2-6 |
UL, USA/Canada
| Identification | UL 61010 Listed |
| Identification | Class I, Div. 2, Groups A, B, C, D T4 |
| Identification | Class I, Zone 2, Group IIC |
Air clearances and creepage distances
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | No end clamp |
| Mounting Position | vertical, horizontal |
