2904113
Official DistributorSKU
PHX2904113
MPN
TC-2KS50-DO16-ESD-AR-RS
Weight
1.447 kg
Series TC

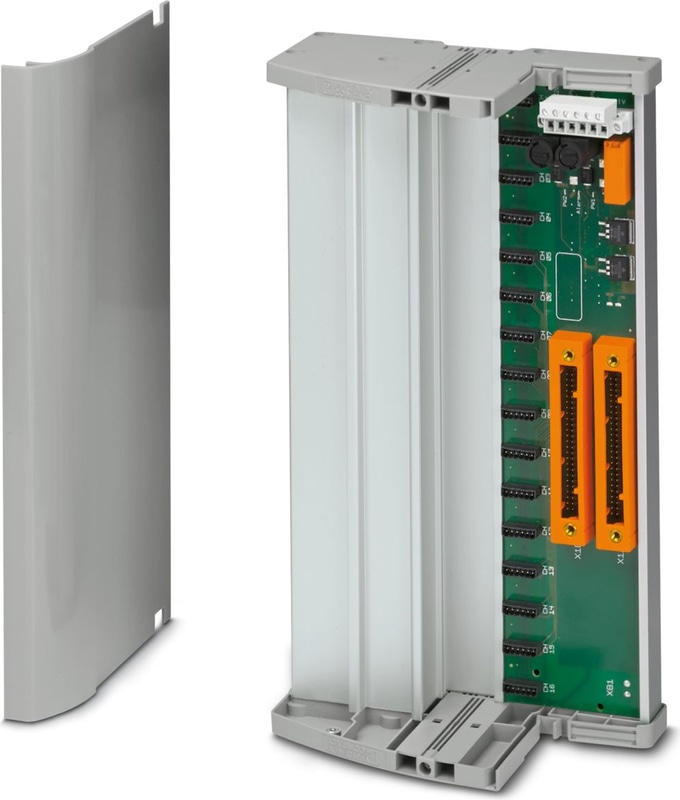

TC-2KS50-DO16-ESD-AR-RS - Module carrier
Termination carrier for redundantly connecting 16 PSR-FSP modules to digital output cards of the Yokogawa ProSafe-RS controller, via two KS50 connectors, 50-pos. Solution for Emergency Shut Down (ESD) applications. Suitable for Yokogawa SDV541 card.
- Mechanically decoupled PCB
- Robust aluminum profile with integrated DIN rail
- Side parts with integrated end clamps
- Redundant system connection, 50-pos. (KS/AKB-compatible)
- Simple or redundant supply, decoupled from diode, protected against polarity reversal
- Error message in the event of power supply failure or fuse fault
- Relay output (N/O contact, floating) and flashing LED for error message
- Undervoltage monitoring at input at < 18 V DC
- Suitable for safe state off applications
- Cable sets for signal connection are not supplied as standard and must be ordered separately
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Insulation characteristics
| Insulation | Basic insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Basic insulation |
Electrical properties
| Max. permissible current | 1 A (Per signal/channel) |
| Nominal voltage UN | 24 V DC (21.1 V ... 26.4 V) |
Air clearances and creepage distances
| Rated Insulation Voltage | 50 V |
| Rated surge voltage | 0.5 kV |
Supported controller YOKOGAWA ProSafe-RS
| Suitable I/O card | SDV541 |
Supply
| Designation | Device supply |
| Fuse | 2.5 A on PCB, slow-blow (replaceable) |
| Input voltage range | 21.1 V ... 26.4 V |
| Input Current | ≤ 2 A |
| Redundant supply | yes, decoupled from diodes |
| Polarization and surge protection | Yes |
| Output name | Switching output |
| Contact switching type | 1 N/C contact (alarm = open) |
Power supply
| Connection Method | Screw connection |
| Stripping length | 7 mm |
| Number of Connections | 1 |
| Number of Positions | 6 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Controller level
| Connection Method | Yokogawa KS-compatible |
| Number of Connections | 2 |
| Number of Positions | 50 |
Signaling
| Status display | 2 x red LED (error) |
| Status display | 2x green LEDs (PWR1 and PWR2) |
Dimensions
| Width | 304 mm |
| Height | 170 mm |
| Depth | 159.5 mm |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (Operation) | 2g, according to IEC 60068-2-6 |
UL, USA/Canada
| Identification | UL 61010 Listed |
| Identification | Class I, Div. 2, Groups A, B, C, D T4 |
| Identification | Class I, Zone 2, Group IIC |
Air clearances and creepage distances
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | No end clamp |
| Mounting Position | vertical, horizontal |
Why Proax for Phoenix Contact 2904113?
Proax is an authorized distributor of Phoenix Contact 2904113 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
