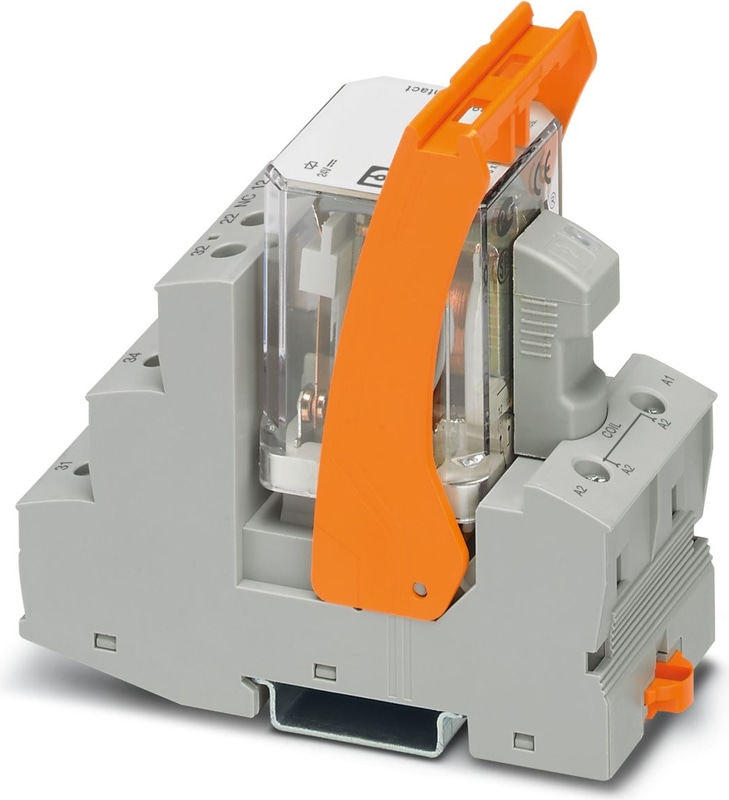

RIF-4-RSC-LDP-24DC/3X1 - Relay Module

Preassembled relay module with screw connection, consisting of: relay base, power contact relay, and retaining bracket. Contact switching type: 3 N/O contacts. Input voltage: 24 V DC

RIF

The Phoenix Contact RIF Series is part of the RIFLINE complete industrial relay system, designed to provide universal and efficient relay solutions for various industrial applications. This series offers preassembled relay modules that facilitate quick installation and reliable performance in control systems.

Key Features:

✅ Preassembled Relay Modules: The RIF Series includes modules that come preassembled with relay bases, power contact relays, and retaining brackets, simplifying the installation process.

✅ Connection Technology: Modules are available with both Push-in and screw connection methods, providing flexibility to suit different wiring preferences.

✅ Compact Design: With widths as narrow as 6.2 mm, these relay modules are designed to save space in control cabinets.

✅ Mechanical Durability: The relays in this series offer a mechanical service life of approximately 20 million cycles, ensuring long-term reliability.

Technical Specifications

Product properties

Product family	RIFLINE complete
Application	Universal
Operating mode	100% operating factor
Mechanical service life	approx. 10⁷ cycles

Insulation characteristics

Insulation	Basic insulation
Insulation	Basic insulation
Overvoltage category	III
Pollution degree	2

Electrical properties

Maximum power dissipation for nominal condition	1.68 W
Test voltage (Winding/contact)	2.5 kVrms (50 Hz, 1 min., winding/contact)
Test voltage (Contact/contact)	2.5 kVrms (50 Hz, 1 min., contact/contact)
Rated Insulation Voltage	250 V AC
Rated surge voltage	4 kV

Coil side

Nominal input voltage U_N	24 V DC
Input voltage range	20.4 V DC ... 26.4 V DC (20 °C)
Input voltage range in reference to U_N	see diagram
Drive and function	monostable
Typical input current at U_N	70 mA
Typical response time	20 ms
Typical release time	20 ms
Coil Voltage	24 V DC
Protective circuit	Freewheeling diode
Operating voltage display	Yellow LED

Switching

Contact switching type	3 N/O contacts
Type of switch contact	Single contact
Contact Material	AgNi
Maximum Switching Voltage	440 V AC
Maximum Switching Voltage	250 V DC
Minimum Switching Voltage	10 V (24 mA)
Limiting Continuous Current	10 A (see diagram)
Maximum Inrush Current	50 A (20 ms, N/O contacts)
Min. switching current	10 mA (24 V)
Interrupting rating (ohmic load) max.	240 W (24 V DC)
Interrupting rating (ohmic load) max.	480 W (48 V DC)
Interrupting rating (ohmic load) max.	600 W (60 V DC)
Interrupting rating (ohmic load) max.	660 W (110 V DC)
Interrupting rating (ohmic load) max.	183 W (220 V DC)
Interrupting rating (ohmic load) max.	2500 VA (250 V AC)
Interrupting rating (ohmic load) max.	4000 VA (440 V AC)
Motor load according to UL 508	1/3 HP, 120 V AC (single-phase AC motor)
Motor load according to UL 508	1/2 HP, 240 V AC (single-phase AC motor)
Motor load according to UL 508	1/2 HP, 240 V AC (three-phase induction motor)
Utilization category CB Scheme (IEC 60947-5-1)	AC15, 1.5 A/240 V (N/O contact)
Utilization category CB Scheme (IEC 60947-5-1)	DC13, 2 A/240 V (N/O contact)

Connection data

Connection Method	Screw connection
Stripping length	8 mm
Conductor cross section rigid	0.5 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)	0.5 mm² ... 2.5 mm²
Conductor cross section flexible	0.5 mm² ... 4 mm²
Conductor cross section flexible	0.5 mm² ... 4 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)	0.5 mm² ... 2.5 mm²
Conductor cross section flexible (2 conductors with same cross section)	0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG	20 ... 10 (solid)
Conductor cross section AWG	20 ... 12 (flexible)
Tightening torque	0.5 Nm ... 0.6 Nm

Dimensions

Width	44 mm
Height	96 mm
Depth	91 mm

Material specifications

Color	gray (RAL 7042)
Flammability rating according to UL 94	V2 (Housing)

Ambient conditions

Degree of protection (Relay base)	IP20 (Relay base)
Degree of protection (Relay)	RT I (Relay)
Ambient Temperature (Operation)	-40 °C ... 60 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C

Corrosive gas test

Identification	ISA-S71.04. G3 Harsh Group
Identification	EN 60068-2-60

Standards and Regulations

Standards/regulations

DIN EN 50178

Mounting

Mounting Type	DIN rail mounting
Assembly instructions	in rows with zero spacing
Mounting Position	any

Accessories

3030336
FBS 2-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: red
3036932
Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: blue
3032237
FBS 2-6 GY - Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: gray
0800967
Marker carriers - STP 5-2
0819217
Marker for terminal blocks - UC-TM 16
0819262
Marker for terminal blocks - UC-TMF 16
0801733
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0801681
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1204119
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1204122
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
0801704
NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206421
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206434
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
0801762
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206560
NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
1201730
NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1201714
NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0806602
NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
1204135
NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1201756
NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206599
NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206586
NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1201895
NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206573
NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
1201798
NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
3022218
CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
3022276
CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
0800886
E/NS 35 N - End clamp, width: 9.5 mm, color: gray
0201744
Test plugs - MPS-MT
0201663
MPS-IH WH - Insulating sleeve, color: white
0201676
MPS-IH RD - Insulating sleeve, color: red
0201689
MPS-IH BU - Insulating sleeve, color: blue
0201692
MPS-IH YE - Insulating sleeve, color: yellow
0201702
MPS-IH GN - Insulating sleeve, color: green
0201728
MPS-IH GY - Insulating sleeve, color: gray
0201731
MPS-IH BK - Insulating sleeve, color: black
1050004
Zack marker strip - ZB 5 :UNBEDRUCKT
1050017
1050017 -
1050020
Zack marker strip - ZB 5,QR:FORTL.ZAHLEN
1050033
Zack marker strip - ZB 5,LGS:GLEICHE ZAHLEN
1050415
Zack marker strip - ZB 5,LGS:L1-N,PE
0818108
Marker for terminal blocks - UC-TM 5
0824581
Marker for terminal blocks - UC-TM 5 CUS
0828734
Marker for terminal blocks - UCT-TM 5
0811972
Zack marker strip - ZB 15:UNBEDRUCKT
0824945
Zack marker strip - ZB 15 CUS
0811998
0811998 -
