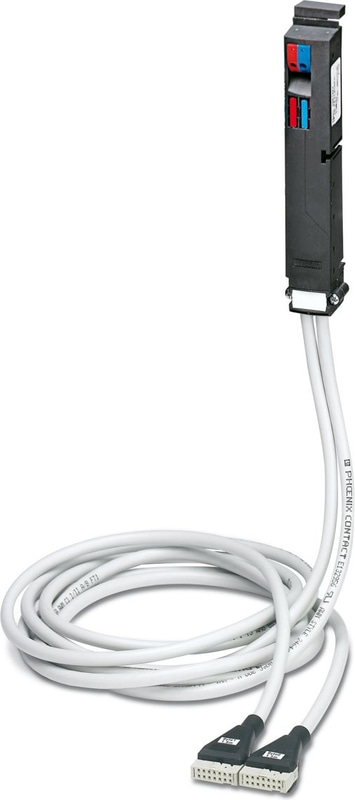

VIP-PA-FLK14/FS/ 2,0M/S7 - Front adapter
VIP VARIOFACE front adapter, with connected system cables with 180° punched-on connector for SIMATIC S7-300, 2 x 8 channels can be connected, cable length: 2 m
Technical Specifications
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 25 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Nominal operating mode | 100% operating factor |
| Current (Per path) | ≤ 1 A |
| Current (per connection) | ≤ 8 A (Feed-in via separate power supply) |
| Current (Total current per byte) | ≤ 2 A (during supply via a separate bridged power supply) |
Air clearances and creepage distances
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV |
Control side
| Connection Method | Plug-in connection |
| Note | Can be plugged onto 20-pos. I/O modules |
Field level
| Connection in acc. with standard | IEC 60603-13 |
| Connection Method | IDC/FLK socket strip |
| Number of Connections | 2 |
| Number of Positions | 14 |
| Pitch | 2.54 mm |
Supply
| Connection Method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
Cable
| Length | 2 m |
14X0.14 [PVC]
| UL AWM style | 2464/1061 |
| Number of Positions | 14 |
| Shielded | no |
| Cable Type | 14X0.14 [PVC] |
| Conductor type | Round cable set |
| Conductor structure signal line | 7x 0.16 mm |
| AWG Signal Line | 26 |
| Conductor Cross Section | 14x 0.14 mm² |
| Wire diameter incl. insulation | 1 mm ±0.03 mm |
| External Cable Diameter | 6.40 mm ±0.4 mm |
| Outer sheath, material | Semi-rigid PVC |
| External sheath, color | gray |
| Conductor material | Tin-plated Cu litz wires |
| Cable resistance | ≤ 145 Ω/km (20 °C) |
| Insulation resistance | ≥ 20 MΩ*km (20 °C) |
| Smallest bending radius, fixed installation | 55 mm |
| Smallest bending radius, movable installation | 104 mm |
| Max. bending cycles | 5000 (at a radius of ≥ 15x outside diameter) |
| Halogen-free | no |
| Flame resistance | IEC 60332-1-2 (raw cable) |
| Flame resistance | VDE 0842, Part 332-1-2 (raw cable) |
| Flame resistance | IEC 60332-3-22 (raw cable) |
| Flame resistance | UL VW-1 |
| Flame resistance | CSA FT-1 |
| Resistance to Oil | can withstand occasional splashes (raw cable) |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Air clearances and creepage distances
| Standards/regulations | DIN EN 50178 |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
