Official DistributorSKU
MPN
IB STME 24 AO 4/EF
Weight
0.249 kg
Series IB-STME

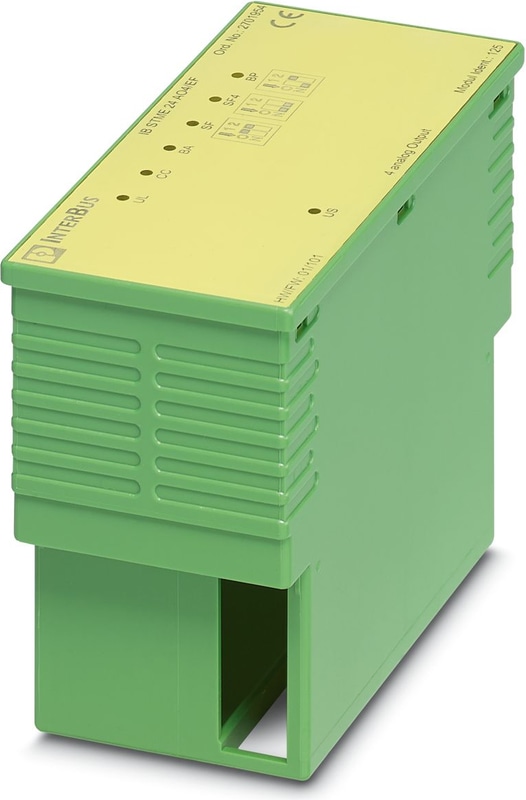

IB STME 24 AO 4/EF - Replacement electronics module
INTERBUS-ST analog output module, 4 outputs, 0 - 10 V, ±10 V, 0 - 20 mA, 4 - 20 mA, comprising: Module electronics only
Technical Specifications
ST local bus
| Connection Method | ST local bus connector |
| Transmission Speed | 500 kbps |
| Transmission physics | Copper |
Module
| ID code (dec.) | 125 |
| ID code (hex) | 7D |
| Length code (hex) | 4 |
| Length code (dec) | 4 |
| Input address area | 0 Byte |
| Output address area | 8 Byte |
| Register length | 8 Byte |
Analog:
| Output name | Analog outputs |
| Connection technology | 2, 3-conductor |
| Number of Outputs | 4 (Voltage or current) |
| D/A conversion time | max. 1 ms (incl. slew rate) |
| D/A converter resolution | 12 bit |
| Protective circuit | Transient protection; Suppressor diode |
| Representation of output values | 16 bit two's complement |
| Current Output Signal | 0 mA ... 20 mA (SF and SF4 mode) |
| Current Output Signal | 4 mA ... 20 mA (Mode SF4) |
| Load/Output Load Current Output | to 500 Ω |
| Voltage output signal | -10 V ... 10 V (Mode BP) |
| Voltage output signal | 0 V ... 10 V (SF and SF4 mode) |
| Load/output load voltage output | > 2 kΩ |
Product properties
| Type | modular |
| Type | INTERBUS Smart Terminal |
| Operating mode | Process data mode with 4 words |
| Diagnostics messages | Failure of the internal I/O supply I/O error message sent to the bus coupler |
| Diagnostics messages | F1 fuse failure I/O error message sent to the bus coupler |
| Diagnostics messages | I/O supply failure I/O error message sent to the bus coupler |
Supply: Module electronics
| Connection Method | ST local bus connector |
| Designation | Communications power |
| Supply Voltage | 9 V DC (from the ST local bus) |
| Current consumption | typ. 54 mA |
| Current consumption | max. 80 mA |
| Power consumption | typ. 0.5 W |
Supply:
| Designation | US |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.5 V DC ... 30.2 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 48 mA (Mode BP) |
| Current consumption | typ. 130 mA (SF and SF4 mode) |
Electrical isolation/isolation of the voltage ranges
| Test voltage: Bus/Outputs | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Supply voltage/Outputs | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Supply voltage/Ground conductor | 500 V AC, 50 Hz, 1 min. |
| Test voltage: I/O voltage/Ground conductor | 500 V AC, 50 Hz, 1 min. |
Connection data
| Connection Method | Snap on |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Degree of Protection | IP20 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | DIN rail mounting |
