2316417
Official DistributorSKU
PHX2316417
MPN
FB2-S1-12SP-T-0-16-00-0-0
Series FB2-S1

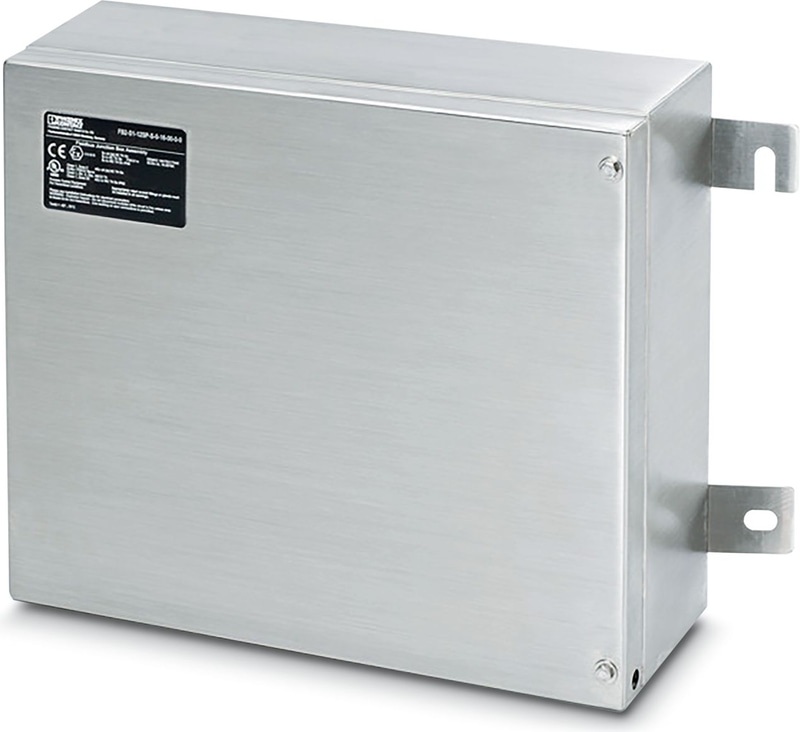

FB2-S1-12SP-T-0-16-00-0-0 - Junction box
Stainless steel field junction box with 16 ports for use in hazardous locations. Includes 12-spur block device coupler (FB-12SP) for Foundation Fieldbus or PROFIBUS PA, three terminal blocks for trunk cable connection (+, –, S).
- Single-sided plug configuration eliminates cable bend radius issues
- Provides current limiting short-circuit protection per spur
- Connect up to 12 Foundation Fieldbus or PROFIBUS PA field devices
- Terminator preinstalled
Accessories
FB-PS-MB-25DSUB/EX - Four-channel, redundant fieldbus power supply base. Host connection is a D-SUB 25 socket connector.
FB-PS-MB-Y/EX - Four-channel redundant fieldbus power supply base. Host connections are for two Yokogawa AKB336 20-pin cables.
FB-PS-MB-I/EX - Four-channel, redundant fieldbus power supply base. Host connection is for an Invensys® D-SUB 25 cable.
G-ESS-M20-S66L-NTES-S - Cable gland, material for screw connection: Brass, nickel-plated, application: Ex, external cable diameter 6.5 mm ... 14 mm, shielding: no, connecting thread: M20 x 1.5, color: silver
A-EXB-20-66L-N-S - Pressure compensation element, application: Ex, connecting thread: M20 x 1.5, color: silver- G-ESS-M20-S66L-STES-S - Cable gland, material for screw connection: Stainless steel 316L, application: Ex, external cable diameter 6.5 mm ... 14 mm, shielding: no, connecting thread: M20 x 1.5, color: silver
A-EXSH-M20-68L-S-S - Screw plug, material for screw connection: Stainless steel 316L, application: Ex, connecting thread: M20 x 1.5, color: silver
Why Proax for Phoenix Contact 2316417?
Proax is an authorized distributor of Phoenix Contact 2316417 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
Recommended
FB2-S1-12SP-S-0-16-00-0-0 - Stainless steel field junction box with 16 ports for use in hazardous locations. Includes 12-spur block device coupler (FB-12SP) for Foundation Fieldbus or PROFIBUS PA, trunk cable (+, -, S) is connected to a Plugtrab surge base (PT 4+F-BE).
