1411105
Official DistributorSKU
PHX1411105
MPN
A-EXSH-M20-68L-S-S
Weight
0.056 kg
Series A-EXSH-M

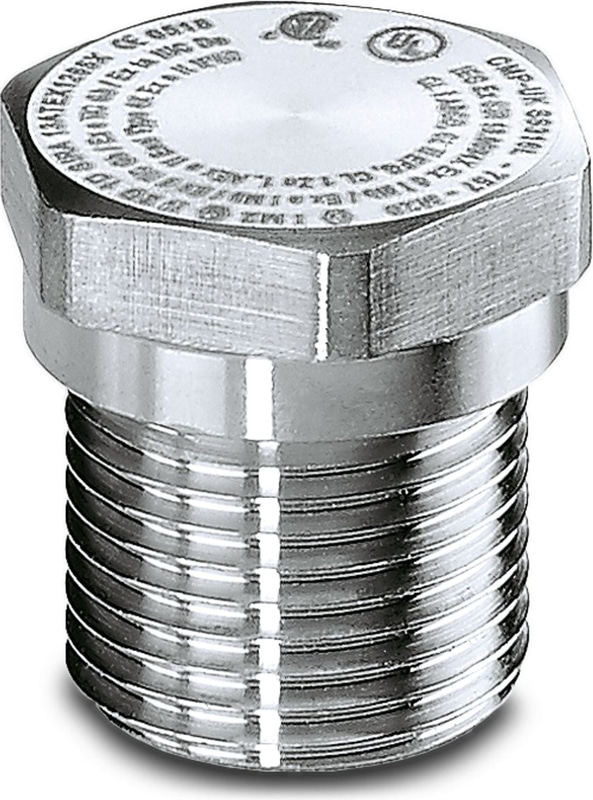

A-EXSH-M20-68L-S-S - Screw plug
Screw plug, material for screw connection: Stainless steel 316L, application: Ex, connecting thread: M20 x 1.5, color: silver
Technical Specifications
Notes
| Note on Ex protection | This item must only be used with counter nut 1411249 A-INL-M20-S-S for the Ex e type of protection. |
Product properties
| Application | Ex |
| Manufacturer | CMP |
| Manufacturer Designation | 757 M20 Exd/Exe HEX HEAD STOP S/STEEL |
| Manufacturer product number | 757DM24 |
Ex data
| Suited for EX-applications | yes |
Dimensions
| Length | 24 mm |
| Length of the connecting thread | 15 mm |
| Length without connecting thread | 9 mm |
| Diameter | 20 mm |
| Connecting thread diameter | 20 mm |
| Wrench size, union nut | 24 mm |
| Hexagon angular dimension | 26.4 mm |
| Thread type connection side | M20 x 1.5 |
| Thread pitch | 1.5 mm |
Material specifications
| Material for screw connection | Stainless steel 316L |
Ambient conditions
| Degree of Protection | IP66 (using the corresponding A-SEW-...P-W flat gasket) |
| Degree of Protection | IP68 (using the corresponding A-SEW-...P-W flat gasket) |
| Ambient Temperature (Operation) | -60 °C ... 130 °C |
Approvals
| ATEX | Sira 01ATEX1284U |
| ATEX | Sira 02ATEX1003X |
| ATEX | Ex II 2 GD Ex d IIC & Ex e II, Ex IM2 Ex d I, Ex e I |
| IECEx | IECEx SIR 07.0056X |
| IECEx | Ex d I / Ex e I / Ex d IIC / Ex e II, Ex tD A21 IP6X |
EN Ex
| Standards/specifications | EN 60079-0, -1, -7 |
IEC Ex
| Standards/specifications | IEC 60079-0, -1, -7 |
EN Ex
| Standards/specifications | EN 61241-0, -1 |
IEC Ex
| Standards/specifications | IEC 61241-0, -1 |
Mounting
| Assembly instructions | Sealed to IP66/IP68 thanks to the use of the A-SEW-20-P-W flat gasket (item 1411283) |
Accessories
Why Proax for Phoenix Contact 1411105?
Proax is an authorized distributor of Phoenix Contact 1411105 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 20 |
