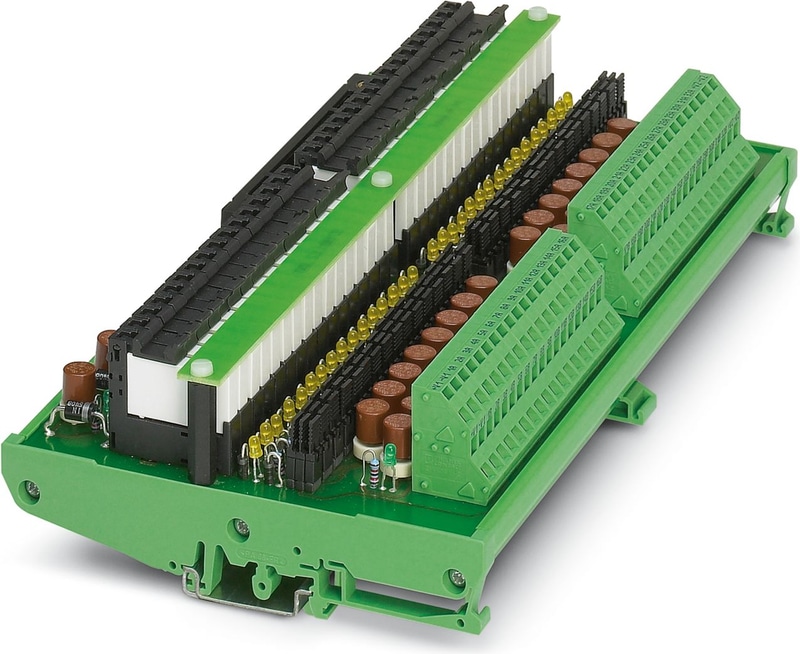

Phoenix Contact 2311111
AllPLC & HMISystem cabling for controllersModules

2311111

Official Distributor

By Phoenix Contact

SKU
PHX2311111
MPN
UM-KS50/32-MR/21/ADV151/SO207
Weight
0.832 kg
Series UM-KS

UM-KS50/32-MR/21/ADV151/SO207 - Active module

32-channel input relay module with spring-cage connection and 50-pos. system connection. The coil side is secured and optionally non-isolated. Suitable for the Yokogawa ADV 151 und ADV 161 cards.

Technical Specifications

Product properties

No. of channels32

Insulation characteristics

InsulationFunctional insulation

Insulation characteristics: Air clearances and creepage distances

InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2

Air clearances and creepage distances

Rated Insulation Voltage50 V
Rated surge voltage0.5 kV (1.2/50 μs)

Supported controller YOKOGAWA CS3000 CentumVP

Suitable I/O cardADV151
Suitable I/O cardADV161

Supported controller YOKOGAWA STARDOM

Suitable I/O cardNFDV151
Suitable I/O cardNFDV161

Input data

Nominal input voltage UN24 V DC (Supply, 2 A (V1+, V2+), pluggable fuse (IEC 60127-37/IV, 2AT))
Input voltage range in reference to UN0.8 ... 1.1
Input voltage range19.2 V DC ... 26.4 V DC
Typical input current at UN9 mA (per channel, pluggable fuse (IEC 60127-3/IV, 1AT))
Protective circuitFreewheeling diode
Protective circuitReverse polarity protection; Polarity protection diode
Operating voltage displayGreen LED
Status display/channelYellow LED

Switching

Contact switching type1 N/O contact
Type of switch contactSingle contact
Contact MaterialAgSnO, hard gold-plated
Maximum Switching Voltage< 50 V DC
Limiting Continuous Current100 mA
Maximum Inrush Current1 A (Supply, (P1+, P2+), pluggable fuse (IEC 60127-3/IV, 1AT))

Field level

Connection MethodSpring-cage connection
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 14

Controller level

Connection MethodYokogawa KS-compatible
Number of Connections1
Number of Positions50
NoteUsable system cables: Phoenix Contact YUC50, Yokogawa AKB331
Tightening torque0.5 Nm

Signaling

Status display presentYes

Dimensions

Width231 mm
Height128 mm
Depth58 mm

Ambient conditions

Degree of ProtectionIP00
Degree of protection (Installation location)≥ IP54 (Installation location)
Ambient Temperature (Operation)-20 °C ... 50 °C (95 %/50 °C (non-condensing))
Ambient temperature (storage/transport)-20 °C ... 70 °C
Altitude≤ 2000 m

Air clearances and creepage distances

Standards/regulationsEN IEC 60664-1

Mounting

Mounting TypeDIN rail mounting
Mounting Positionany

Notes

Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
