2276395
Official DistributorSKU
PHX2276395
MPN
PACT MCR-V2-10020-129-2500-5A
Weight
0.551 kg
Series PACT-MCR-V

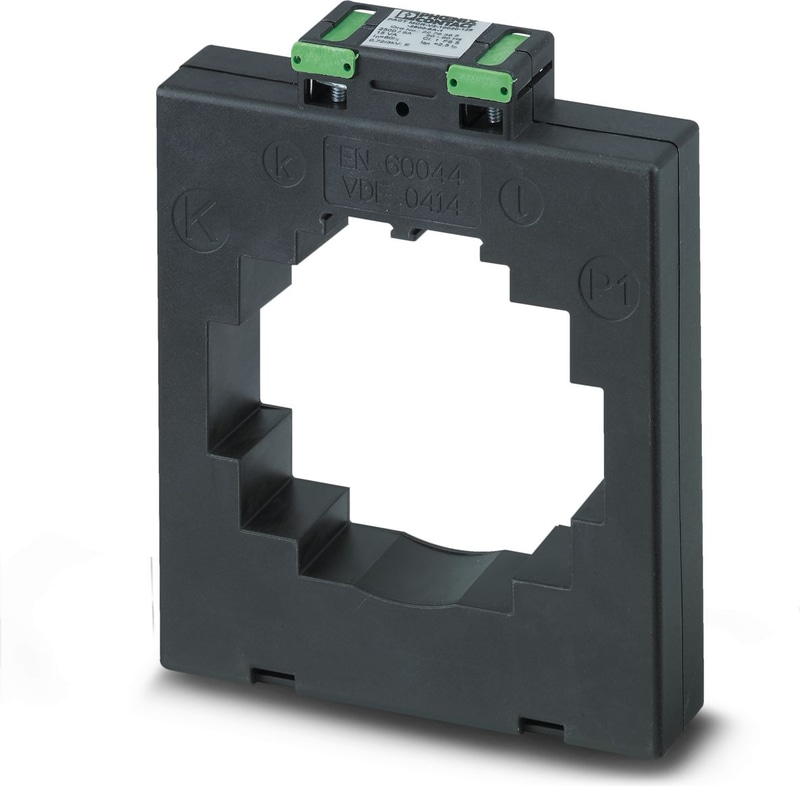

PACT MCR-V2-10020-129-2500-5A - Current transformer
Window-type current transformer, 2500 A AC primary current; 5 A AC secondary current; accuracy class 1; 15 VA rated power
Documents
Technical Specifications
Electrical properties
| Rated Insulation Voltage | 1 kV (Phase/neutral conductor) |
General
| Can be calibrated | no |
| Converter type | Window-type current transformer |
Current transformer
| Rated power | 15 VA |
| Thermal rated short-time current | Ith = 60 * In |
| Thermal rated continuous current | Id = 1.2 * In |
| Rated surge current | Idyn = 2.5 * Ith |
| Rated frequency fn | 50 Hz |
| Rated frequency fn | 60 Hz |
| Primary rated current Ipn | 0 A AC ... 2500 A AC |
| Can be calibrated | no |
| Converter type | Window-type current transformer |
Signal
| Designation | Current output |
| Secondary rated current Isn | 5 A AC |
| Surge current limitation factor | FS 5 |
| Accuracy class | 0.2 (depends on type) |
| Accuracy class | 0.5 (depends on type) |
| Accuracy class | 1 (depends on type) |
| Accuracy class | 0.2S (depends on type) |
| Accuracy class | 0.5S (depends on type) |
Connection data
| Connection Method | Screw connection |
| Conductor cross section flexible | 2x 10 mm² (Secondary terminals) |
| Tightening torque | 2 Nm |
Item dimensions
| Width | 31 mm |
| Height | 158 mm |
| Depth | 129 mm |
Item dimensions with alternative mounting
| Width | 129 mm |
| Height | 158 mm |
| Depth | 31 mm |
Copper rail
| Width | 100 mm |
| Height | 10 mm |
Copper rail 2
| Width | 80 mm |
| Height | 64 mm |
Circular conductor
| Diameter | 85 mm |
Material specifications
| Color | gray (RAL 7042) |
| Housing Material | PA 6.6 |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 40 °C |
| Ambient temperature (storage/transport) | -25 °C ... 40 °C |
| Altitude | ≤ 1000 m |
| Permissible humidity (operation) | Use only indoors, non-condensing |
| Insulating material class | H |
CE
| Certificate | CE-compliant |
UKCA
| Certificate | UKCA-compliant |
Standards and Regulations
| Standards/regulations | EN 61869 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Type | Panel mounting |
