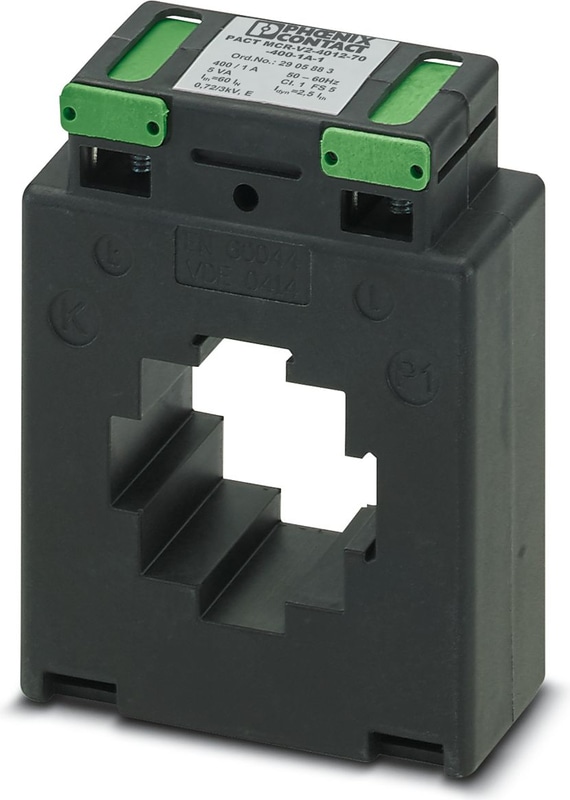

PACT MCR-V2-4012-70-400-1A-1
Weight
0.348 kg
Series PACT-MCR-V
PACT MCR-V2-4012-70-400-1A-1 - Current transformer
Window-type current transformer, 400 A AC primary current; 1 A AC secondary current; accuracy class 1; 5 VA rated power
Technical Specifications
Electrical properties
| Rated Insulation Voltage | 1 kV (Phase/neutral conductor) |
General
| Can be calibrated | no |
| Converter type | Window-type current transformer |
Current transformers
| Rated power | 5 VA |
| Thermal rated short-time current | Ith = 60 * In |
| Thermal rated continuous current | Id = 1.2 * In |
| Rated surge current | Idyn = 2.5 * Ith |
| Rated frequency fn | 50 Hz |
| Rated frequency fn | 60 Hz |
| Primary rated current Ipn | 0 A AC ... 400 A AC |
| Primary rated current range | 1 A AC ... 4000 A AC (depends on type) |
| Can be calibrated | no |
| Converter type | Window-type current transformer |
Signal
| Designation | Current output |
| Secondary rated current Isn | 1 A AC |
| Surge current limitation factor | FS 5 |
| Accuracy class | 1 |
Connection data
| Connection Method | Screw connection |
| Conductor cross section flexible | 2x 2.5 mm² ... 4 mm² (Secondary terminals) |
Item dimensions
| Width | 30 mm |
| Height | 90 mm |
| Depth | 70 mm |
Item dimensions with alternative mounting
| Width | 70 mm |
| Height | 90 mm |
| Depth | 30 mm |
Copper rail
| Width | 40 mm |
| Height | 12 mm |
Copper rail 2
| Width | 30 mm |
| Height | 10 mm |
Circular conductor
| Diameter | 33 mm |
Material specifications
| Housing Material | PA 6.6 |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 40 °C |
| Ambient temperature (storage/transport) | -25 °C ... 40 °C |
| Permissible humidity (operation) | Use only indoors, non-condensing |
CE
| Certificate | CE-compliant |
UKCA
| Certificate | UKCA-compliant |
Standards and Regulations
| Standards/regulations | EN 61869 |
Accessories
PACT-FAST-MNT-W13-L65 - The transformer quick-action mechanism enables the lightning-fast mounting of PACT current transformers on the power rail. The installation can be completed easily by hand without the use of tools. Fixing pins: 65 mm, holding latches: 13 mm
