Phoenix Contact 2866640
AllPower ProductsPower supply

2866640

Official Distributor

By Phoenix Contact

SKU
PHX2866640
MPN
MINI-DC-UPS/24DC/2
Weight
0.496 kg
This product is Not Cancellable/Not Returnable

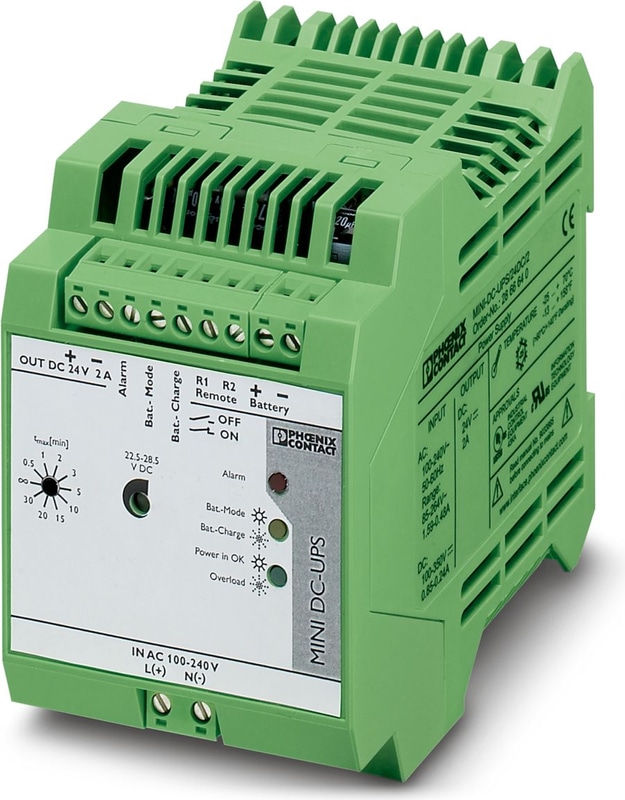

MINI-DC-UPS/24DC/2 - Uninterruptible power supply

Uninterruptible power supply with integrated power supply unit, 2 A, in combination with MINI-BAT/24/DC 0.8 AH or 1.3 AH

  • High operational safety - comprehensive signaling and temperature-dependent battery charging
  • Fast installation – minimal wiring effort with COMBICON connectors for easy connection
Technical Specifications

DC operation

Input Voltage24 V DC
Input voltage range100 V DC ... 350 V DC
Voltage type of supply voltageDC
Inrush Current< 34 A (< 1.1 A2s)
Inrush current integral (I2t)< 1.1 A2s
Mains buffering timesee diagram
Buffer period20 min. (2 A)
Rotary selector switchCan be set to: 0.5 min; 1 min; 2 min; 3 min; 5 min; 10 min; 15 min; 20 min; 30 min; permanent
Current consumption0.6 A
Current consumption0.85 A (230 V AC)
Current consumption1.1 A
Current consumption1.5 A (120 V AC)
Protective circuitVaristor
Power factor (cos phi)approx. 0.5
Typical response time100 ms
Input fuse3.15 A (slow-blow, internal)
Permissible backup fuseB6 B10 B16
Recommended breaker for input protection6 A ... 16 A (Characteristics B, C, D, K)

AC operation

Nominal input voltage range100 V AC ... 240 V AC
Input voltage range85 V AC ... 264 V AC
Voltage type of supply voltageAC

Output data

Efficiency> 83 %
Nominal Output Voltage24 V DC (AC input voltage available: 22.5 to 29.5 V DC, AC input voltage not available: 27.9 to 19.2 V DC)
Setting range of the output voltage (USet)22.5 V DC ... 29.5 V DC (normal mode; in the buffer mode, dependent on a battery voltage of 27.9 V DC ... 19.2 V DC)
Nominal output current (IN)2 A
Output current limitmax. 3 A
Bridging time1200 s
Derating60 °C ... 70 °C (2.5 %/K)
Feedback voltage resistance35 V DC
Protection against overvoltage at the output (OVP)< 35 V DC
Max. capacitive loadunlimited
Control deviation< 1 % (change in load, static 10 % ... 90 %)
Residual ripple< 50 mVPP
Output Power48 W
Peak switching voltages nominal load< 100 mVPP
Maximum no-load power dissipation3.8 W
Power loss nominal load max.15 W
Power dissipation battery operation2.1 W
Rise time< 100 ms
Connection in parallelyes
Connection in seriesNo

Mains operation

Nominal Output Voltage24 V DC
Output voltage range22.5 V DC ... 29.5 V DC
Nominal output current (IN)2 A

Battery operation

Nominal Output Voltage24 V DC
Output voltage range19.2 V DC ... 27.6 V DC (UOUT = UBAT - 0,5 V DC)
Nominal output current (IN)2 A

Signal: Active (high = buffer module is loaded)

Output descriptionPower Good
Maximum Switching Voltage≤ 24 V
Output Voltage+ 24 V
Continuous load current≤ 20 mA

Signal: Alarm

Output descriptionRelay output
Maximum Switching Voltage≤ 24 V
Output Voltage24 V
Continuous load current≤ 200 mA

Signal: Battery charge

Output descriptionRelay output
Maximum Switching Voltage≤ 24 V
Output Voltage24 V
Continuous load current≤ 200 mA

Signal: Battery mode

Output descriptionRelay output
Maximum Switching Voltage≤ 24 V
Output Voltage24 V
Continuous load current≤ 200 mA

Energy storage

Charging current1 A
Nominal capacity range0.8 Ah ... 1.3 Ah
Memory mediumexternal, battery 0.8 Ah / 1.3 Ah
IQ Technologyno
Network managementNo

Input

Connection MethodPluggable COMBICON screw connections
Conductor cross section, rigid min.0.2 mm²
Conductor cross section, rigid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length8 mm
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Output

Connection MethodPluggable COMBICON screw connections
Conductor cross section, rigid min.0.2 mm²
Conductor cross section, rigid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length8 mm
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Signal

Conductor cross section, rigid min.0.2 mm²
Conductor cross section, rigid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Signaling

Types of signalingLED

Signal output: Active (high = buffer module is loaded)

Status displayLED "Power Good", green
Note on status displayBuffer module is loaded: LED ON

Signal output: Alarm

Status displayLED red
Note on status displayMalfunction/alarm: LED permanently lit

Signal output: Battery charge

Status displayLED flashing yellow
Note on status displayBattery charge/battery is being charged: LED flashing

Signal output: Battery mode

Status displayYellow LED
Note on status displayBattery mode/buffer mode: LED permanently lit

Electrical properties

Insulation voltage input/output4 kV (type test)
Insulation voltage input/output2 kV (routine test)

Product properties

Product familyMINI UPS – UPS with integrated power supply
IQ Technologyno
MTBF (IEC 61709, SN 29500)> 753000 h (40 °C)

Insulation characteristics

Protection classII (in closed control cabinet)
Degree of pollution2

Dimensions

Width67.5 mm
Height99 mm
Depth107 mm

Installation dimensions

Installation distance right/left0 mm / 0 mm
Installation distance top/bottom30 mm / 30 mm

Mounting

Mounting TypeDIN rail mounting
Assembly instructionsalignable: horizontally 0 mm, vertically 50 mm
Mounting Positionhorizontal DIN rail NS 35, EN 60715

Material specifications

Housing MaterialPlastic
Type of housingPolyamide PA, color: green

Ambient conditions

Degree of ProtectionIP20
Ambient Temperature (Operation)-25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Climatic class3K3 (in acc. with EN 60721)
Max. permissible relative humidity (operation)95 % (at 25 °C, non-condensing)
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (Operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
Vibration (Operation)15 Hz ... 150 Hz, 2.3g, 90 min.

Standards and Regulations

Rail applicationsEN 50121-4
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
Standard - Electrical safetyEN 60950-1/VDE 0805 (SELV)
Standard - Electrical safetyEN 61558-2-17
Standard – Protection against shock currents, basic requirements for protective separation in electrical equipmentEN 50178
Standard – Safety extra-low voltageEN 60950-1 (SELV)
Standard – Safety extra-low voltageEN 60204 (PELV)
Standard - Safe isolationDIN VDE 0100-410

Approvals

UL approvalsUL Listed UL 508
UL approvalsUL/C-UL Recognized UL 60950-1
UL approvalsUL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)

EMC data

Low Voltage DirectiveConformance with Low Voltage Directive 2014/35/EC
EMC requirements for noise emissionEN 61000-6-3
EMC requirements for noise emissionEN 61000-6-4
EMC requirements for noise immunityEN 61000-6-1
EMC requirements for noise immunityEN 61000-6-2
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 55011 (EN 55022)

Electrostatic discharge

Standards/regulationsEN 61000-4-2
HousingLevel 3
Contact discharge6 kV
Discharge in air8 kV
CommentsCriterion B

Electromagnetic HF field

Standards/regulationsEN 61000-4-3
Frequency Range80 MHz ... 2 GHz
Test field strength10 V/m
CommentsCriterion A

Fast transients (burst)

Standards/regulationsEN 61000-4-4
Input4 kV (level 4 - asymmetrical: conductor to ground)
Output2 kV (level 3 - asymmetrical: conductor to ground)
Signal1 kV (level 2 - asymmetrical: conductor to ground)
CommentsCriterion B

Surge voltage load (surge)

Standards/regulationsEN 61000-4-5
Input4 kV (level 4 - asymmetrical: conductor to ground)
Input2 kV (level 4 - symmetrical: conductor to conductor)
Output2 kV (Level 3 - asymmetrical)
Output1 kV (Level 3 - symmetrical)
Signal2 kV (Level 3 - asymmetrical)
Signal1 kV (Level 3 - symmetrical)
CommentsCriterion B

Conducted interference

Standards/regulationsEN 61000-4-6
I/O/SLevel 3
Frequency Range10 kHz ... 80 MHz
CommentsCriterion A
Voltage10 V

Voltage dips

Standards/regulationsEN 61000-4-11

Emitted interference

Standards/regulationsEN 61000-6-3
Radio interference voltage in acc. with EN 55011EN 55011 (EN 55022) Class B, area of application: Industry and residential
Emitted radio interference in acc. with EN 55011EN 55011 (EN 55022) Class B, area of application: Industry and residential
Accessories
  • 2866666
    2866666
    MINI-BAT/24DC/0.8AH - Battery module, lead AGM, VRLA technology, 24 V DC, 0.8 Ah.
  • 2866417
    2866417
    Battery module, lead AGM, VRLA technology, 24 V DC, 1.2 Ah.
