2866569
Official DistributorSKU
PHX2866569
MPN
MINI-BAT/12DC/2.6AH
Weight
2.198 kg
Series MINI-BAT

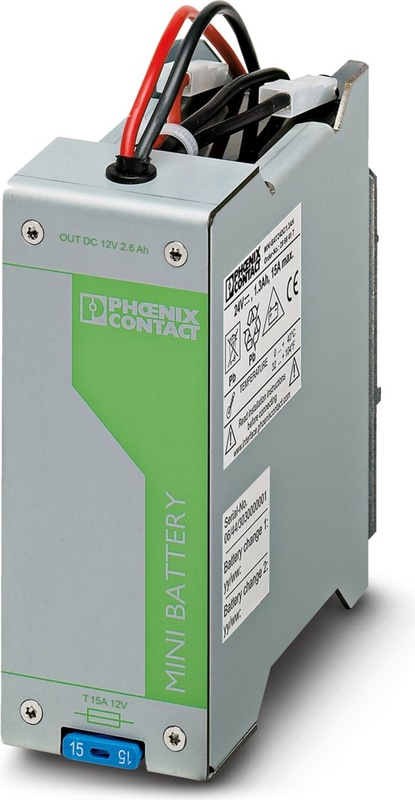

MINI-BAT/12DC/2.6AH - Battery module
Battery module, lead AGM, VRLA technology, 12 V DC, 2.4 Ah.
- Maximum buffer times
Technical Specifications
General
| Note on the battery | This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the technical data area under “Latest startup”. |
Input data
| Input Voltage | 12 V DC |
| Buffer period | 120 min. (1 A) |
| Buffer period | 20 min. (4 A) |
| Current consumption | 0.72 A (charging process) |
Output data
| Nominal Output Voltage | 12 V DC |
| Output current Imax | 15 A |
| Output fuse | 1x 15 A |
| Connection in parallel | 5 |
| Connection in series | No |
Battery operation
| Nominal Output Voltage | 12 V DC |
| Nominal output current (IN) | 15 A |
Energy storage
| End-of-charge voltage | 13.8 V |
| Charging current | 0.72 A |
| Nominal capacity | 2.4 Ah |
| Battery module service life | 6 Years (20 °C) |
| Latest startup (battery only) - range | 6 Months (0 °C ... 20 °C) |
| Latest startup (battery only) - range | 6 Months (20 °C ... 30 °C) |
| Latest startup (battery only) - range | 3 Months (30 °C ... 40 °C) |
| Battery technology | VRLA-AGM |
| Memory medium | Lead rechargeable battery module |
| Accumulator type | BB Battery BP1.2-12FR |
| Number of cells | 1 |
| Size designation | Block |
| Battery pack | yes |
| IQ Technology | no |
| Suitable for fast charging | yes |
Product properties
| Product family | Battery module |
| Application | for MINI DC-UPS |
| Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. |
| IQ Technology | no |
Insulation characteristics
| Protection class | III |
Dimensions
| Width | 52 mm |
| Height | 130 mm |
| Depth | 110 mm |
Installation dimensions
| Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 30 mm / 30 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 40 °C |
| Ambient temperature (storage/transport) | 0 °C ... 40 °C |
| Max. permissible relative humidity (operation) | 95 % |
Ex data
| Suited for EX-applications | No |
Accessories
UWA 182/52 - Universal wall adapter for securely mounting the device in the event of strong vibrations. The device is screwed directly onto the mounting surface. The universal wall adapter is attached on the top/bottom.
FUSE 25A/32V ATOF - Fuse, nominal current: 25 A, length: 19.1 mm, width: 5 mm, height: 18.8 mm
