Phoenix Contact 1425627
AllConnectorsCircular connectors
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
SACC-E-M12MSL4FEM16XL/0,2GR-1,5
Weight
0.031 kg
This product is Not Cancellable/Not Returnable
Series SACC-E-M

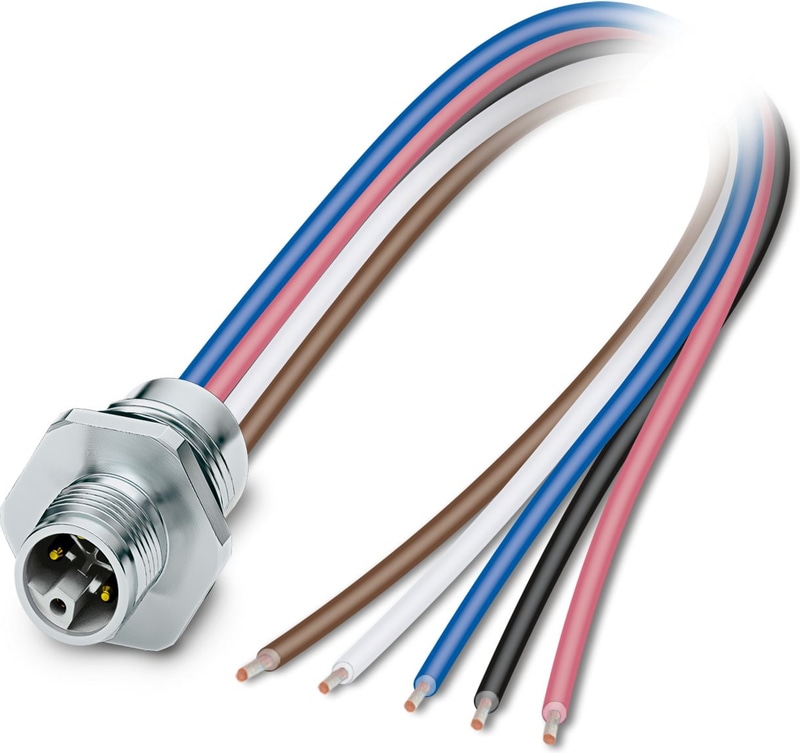

SACC-E-M12MSL4FEM16XL/0,2GR-1,5 - Device connector front mounting

Device connector front mounting, Power, 5-position, Pin, straight, M12-Standard, coding: L, on free cable end, Front mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 1.31 mm2, UL/cUL stranded hook-up wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239541

  • For compact devices: transmit high power in a confined space
  • Easy-to-install, optimized XL housing contour with wrench size 19
  • Mechanical tightening limitation for long-term-stable gasket
  • Preassembled with litz wires for immediate use
  • Customer-specific assemblies and litz wire lengths available
  • Sealed on the litz wire side for optimum leak-tightness
  • For high transmission safety: shield connection to the housing with optional EMC nut
Technical Specifications

Notes

Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Notes on operationFE not connected to metal parts that can be touched, no protective function
GeneralContact connection method: Crimp connection

Mounting

Mounting TypeFront mounting M16 x 1.5 XL version, tightening limitation
Assembly instructionsXL version, tightening limitation

Product properties

Sensor TypePower
Number of Positions5
No. of cable outlets1
Shieldedno
CodingL
Thread typeM12

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Material specifications

Colorgray
Flammability rating according to UL 94V0
Seal materialFKM
Contact MaterialCuZn
Contact surface materialNi/Au
Contact carrier materialPA
Material for screw connectionCuZn alloy, nickel-plated
Conductor materialBare Cu litz wires

Electrical properties

Rated voltage in acc. with IEC 61076-2-10163 V
Rated surge voltage1.5 kV
Rated surge voltage1.5 kV AC/DC
Nominal voltage UN63 V DC
Nominal current IN12 A
Test voltage1.5 kV
Test voltage Core/Core3 kV

Conductor connection

Connection MethodIndividual wires
Contact connection typePin
Conductor Cross Section1.31 mm²
Tightening torque0.8 Nm ... 1.3 Nm (Installation-side)

Mechanical data

Insertion/withdrawal cycles> 100

Connection 1

Head designPin
Head cable outletstraight
Head thread typeM12
Head locking typeStandard
CodingL

Connection 2

Head designfree cable end

Cable/line

Cable Length0.2 m
Cable TypeUL/cUL stranded hook-up wire
Signal type/categoryPower
Wire diameter incl. insulation2 mm
Single wire, colorbrown 1, white 2, blue 3, black 4, pink FE
Cable cross section1.31 mm²
Conductor materialBare Cu litz wires
AWG Signal Line16
Material wire insulationmPPE
Test voltage Core/Core3 kV
Halogen-freeyes
Flame resistancein acc. to UL 1581 VW1
Ambient Temperature (Operation)-40 °C ... 105 °C (cable, fixed installation)
Ambient Temperature (Operation)-25 °C ... 105 °C (Cable, flexible installation)

Ambient conditions

Degree of ProtectionIP67
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)-40 °C ... 85 °C (without mechanical actuation)
Ambient Temperature (Operation)-25 °C ... 105 °C (Cable, flexible installation)
Ambient Temperature (Operation)-40 °C ... 105 °C (cable, fixed installation)

Standards and Regulations

Flame resistancein acc. to UL 1581 VW1

M12

Standard designationM12 connector
Standards/specificationsIEC 61076-2-111
NoteIn line with
Accessories
  • Phoenix Contact1504097
    1504097
    Flat nut, Screw mounting, M16 x 1.5, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239863
  • Phoenix Contact1560251
    1560251
    Sealing cap - PROT-M12 FS
  • Phoenix Contact1430488
    1430488
    M12 metal sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field

Why Proax for Phoenix Contact 1425627?

Proax is an authorized distributor of Phoenix Contact 1425627 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size1
