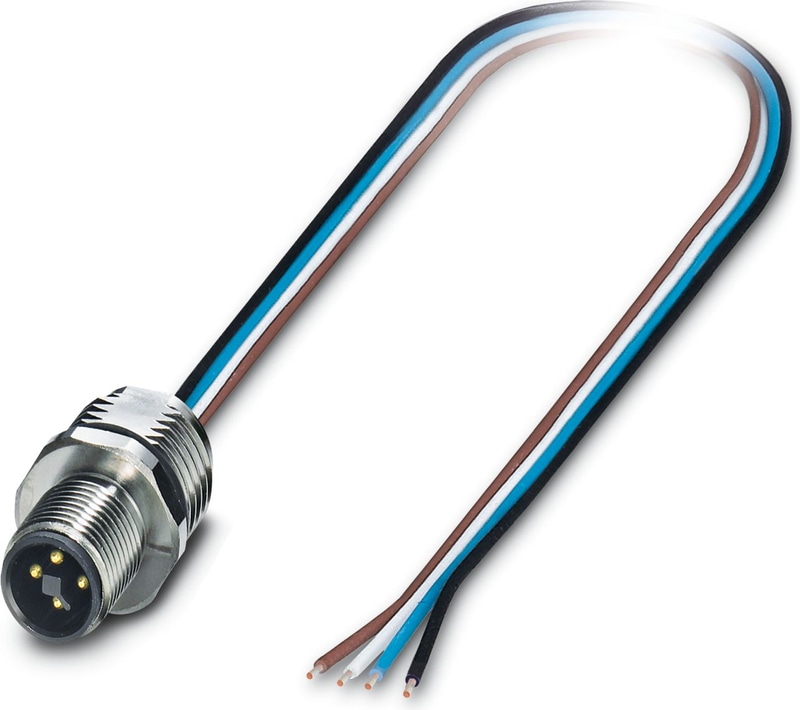

SACC-E-M12MST-4CON-M16/0,5 - Device connector front mounting

Device connector front mounting, Power, 4-position, Pin, straight, M12-Standard, coding: T, on free cable end, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 1.31 mm2, UL/cUL stranded hook-up wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239446

  • For compact devices: transmit high power in a confined space
  • Preassembled with litz wires for immediate use
  • Customer-specific assemblies and litz wire lengths available
  • Sealed on the litz wire side for optimum leak-tightness
  • For high transmission safety: shield connection to the housing with optional EMC nut
Technical Specifications

Notes

Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.

Mounting

Mounting TypeFront mounting M16 x 1.5

Product properties

Sensor TypePower
Number of Positions4
No. of cable outlets1
Shieldedno
CodingT
Thread typeM12

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Material specifications

Flammability rating according to UL 94V0
Seal materialFKM
Contact MaterialCuZn
Contact surface materialAu
Contact carrier materialPA
Material for screw connectionCuZn alloy, nickel-plated
Conductor materialBare Cu litz wires

Electrical properties

Rated surge voltage1.5 kV
Rated surge voltage1.5 kV AC/DC
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN63 V DC
Nominal current IN12 A
Test voltage1.5 kV

Conductor connection

Connection MethodIndividual wires
Contact connection typePin
Conductor Cross Section1.31 mm²
Tightening torqueM12 connector

Mechanical data

Insertion/withdrawal cycles> 100

Connection 1

Head designPin
Head cable outletstraight
Head thread typeM12
Head locking typeStandard
CodingT

Connection 2

Head designfree cable end

Cable/line

Cable Length0.5 m
Cable TypeUL/cUL stranded hook-up wire
Signal type/categoryPower
Wire diameter incl. insulation2 mm
Single wire, colorblack, brown, blue, white
Cable cross section1.31 mm²
Conductor materialBare Cu litz wires
AWG Signal Line16
Material wire insulationmPPE
Halogen-freeyes
Flame resistancein acc. to UL 1581 VW1
Ambient Temperature (Operation)-40 °C ... 85 °C (without mechanical actuation)
Ambient Temperature (Operation)-40 °C ... 85 °C (without mechanical actuation)
Ambient Temperature (Operation)-25 °C ... 105 °C (Cable, flexible installation)

Ambient conditions

Degree of ProtectionIP67
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)-40 °C ... 85 °C (without mechanical actuation)
Ambient Temperature (Operation)-25 °C ... 105 °C (Cable, flexible installation)
Ambient Temperature (Operation)-40 °C ... 105 °C (cable, fixed installation)

Standards and Regulations

Flame resistancein acc. to UL 1581 VW1

M12

Standard designationM12 connector
Standards/specificationsIEC 61076-2-111
NoteIn line with
Accessories
  • Phoenix Contact1504097
    1504097
    Flat nut, Screw mounting, M16 x 1.5, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239863
