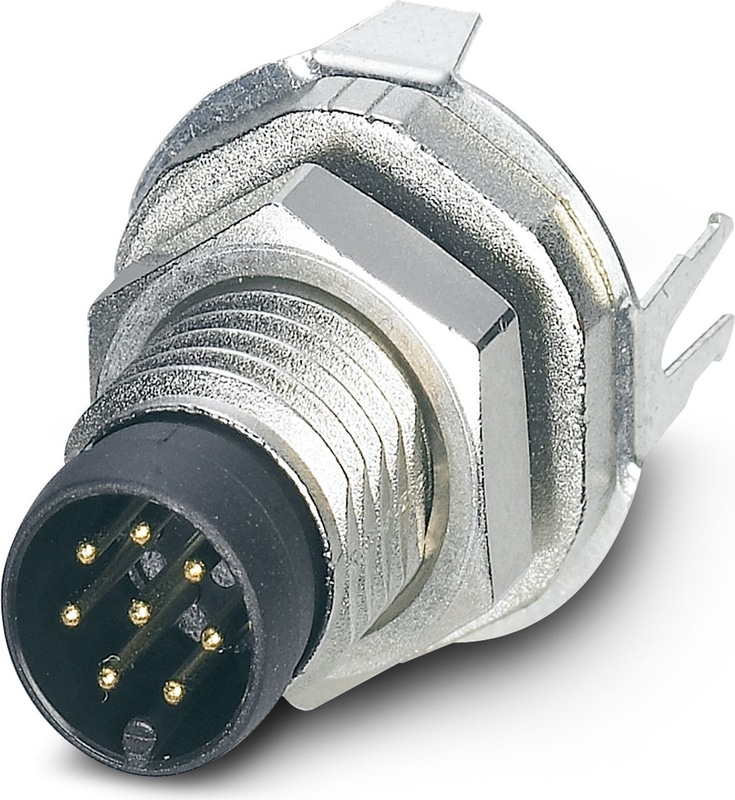

SACC-DSI-M8MS-8CON-M8-L180 SH - Device connector rear mounting
Device connector rear mounting, Universal, 8-position, Pin, straight, M8, Rear mounting, M8 x 1, Wave soldering
- Easy PCB assembly: one-piece connectors for wave soldering
- Standard pin assignments and codings for signal transmission with a uniform design-in design
- For high transmission reliability: optional shield connection to the housing and latching on the PCB
Technical Specifications
Mounting
| Mounting Type | Rear mounting M8 x 1 With flat nut |
| Assembly instructions | With flat nut |
Product properties
| Sensor Type | Universal |
| Number of Positions | 8 |
| Shielded | yes |
| Coding | A |
| Thread type | M8 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Contact Material | Cu alloy |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
Electrical properties
| Rated surge voltage | 0.8 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V AC |
| Nominal voltage UN | 30 V DC |
| Nominal current IN | 1.5 A |
Conductor connection
| Connection Method | Wave soldering |
| Contact connection type | Pin |
| Tightening torque | 1 Nm ... 1.5 Nm (Installation-side) |
Connection 1
| Head design | Pin |
| Head cable outlet | straight |
| Head thread type | M8 |
Cable/line
| Signal type/category | Universal |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient Temperature (Operation) | -25 °C ... 85 °C |
M8
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
