SACC-DSI-M8FS-3CON-M10-L180 SH
Weight
0.007 kg
This product is Not Cancellable/Not Returnable
Series SACC-DSI-M

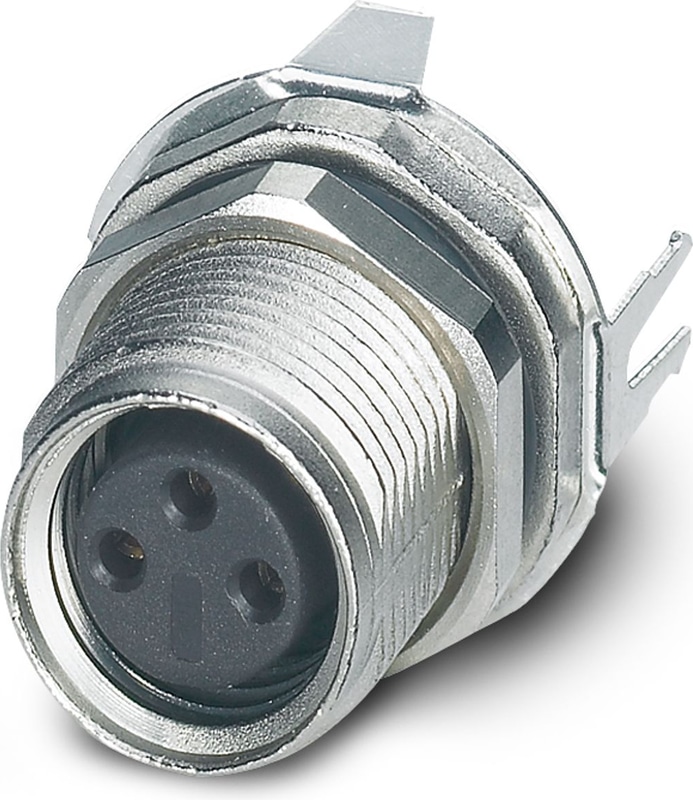

SACC-DSI-M8FS-3CON-M10-L180 SH - Device connector rear mounting
Device connector rear mounting, 3-position, Socket, straight, M8, Rear mounting, M10, Solder pins
- Easy PCB assembly: one-piece connectors for wave soldering
- Standard pin assignments and codings for signal transmission with a uniform design-in design
- For high transmission reliability: optional shield connection to the housing and latching on the PCB
Technical Specifications
Mounting
| Mounting Type | Rear mounting M10 With flat nut |
| Assembly instructions | With flat nut |
Product properties
| Number of Positions | 3 |
| Shielded | yes |
| Coding | A |
| Thread type | M8 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | FKM |
| Contact Material | Cu alloy |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
Electrical properties
| Rated surge voltage | 1.5 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| Nominal voltage UN | 60 V DC |
| Nominal current IN | 4 A |
Conductor connection
| Connection Method | Solder pins |
| Contact connection type | Socket |
| Tightening torque | 1 Nm ... 1.5 Nm (Installation-side) |
Mechanical data
| Insertion/withdrawal cycles | > 100 |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M8 |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
M8
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
