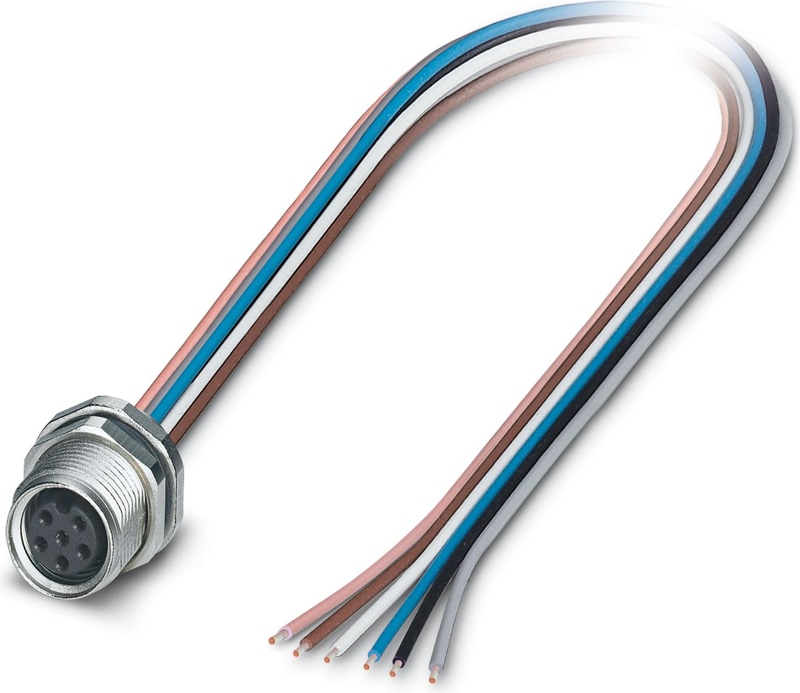

SACC-DSI-M8FS-6CON-M10/0,5 - Device connector rear mounting
Device connector rear mounting, 6-position, Socket, straight, M8, Rear mounting, M10, Individual wires, cable length: 0.5 m, 0.14 mm2, PVC litz wire
- Preassembled with litz wires for immediate use
- Customer-specific assemblies and litz wire lengths available
- Sealed on the litz wire side for optimum leak-tightness
- Standard pin assignments and codings for signal transmission with a uniform design-in design
Documents
Technical Specifications
Mounting
| Mounting Type | Rear mounting M10 With flat nut |
| Assembly note | With flat nut |
Product properties
| Number of Positions | 6 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
| Thread type | M8 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | Viton |
| Contact Material | Cu alloy |
| Contact surface material | Au |
| Contact carrier material | PUR/PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Conductor material | Tin-plated Cu litz wires |
Electrical properties
| Rated surge voltage | 0.8 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V AC |
| Nominal voltage UN | 30 V DC |
| Nominal current IN | 1.5 A |
| Max. conductor resistance | 80 Ω/km |
Conductor connection
| Connection Method | Individual wires |
| Contact connection type | Socket |
| Conductor Cross Section | 0.14 mm² |
| Tightening torque | 1 Nm ... 1.5 Nm (Installation-side) |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M8 |
Cable/line
| Cable Length | 0.5 m |
| Cable Type | PVC litz wire |
| Wire diameter incl. insulation | 1.3 mm ±0.1 mm |
| Single wire, color | black, brown,blue, white, gray, pink |
| Cable cross section | 0.14 mm² |
| Conductor material | Tin-plated Cu litz wires |
| Conductor structure signal line | 7x 0.16 mm |
| AWG Signal Line | 26 |
| Material wire insulation | PVC / UL |
| Thickness, insulation | 0.38 mm |
| Nominal voltage, cable | 300 V |
| Test voltage, cable | 2000 V AC |
| Cable resistance | ≥ 80 Ω/km |
| Cable insulation resistance | ≥ 20 MΩ*km |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -10 °C ... 105 °C |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Socket) |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -10 °C ... 105 °C |
Standards and Regulations
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
