Phoenix Contact 1419771
AllConnectorsDevice connectors
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
SACC-DSI-M12FS-4CON-M16 SH
Weight
0.014 kg
Series SACC-DSI-M

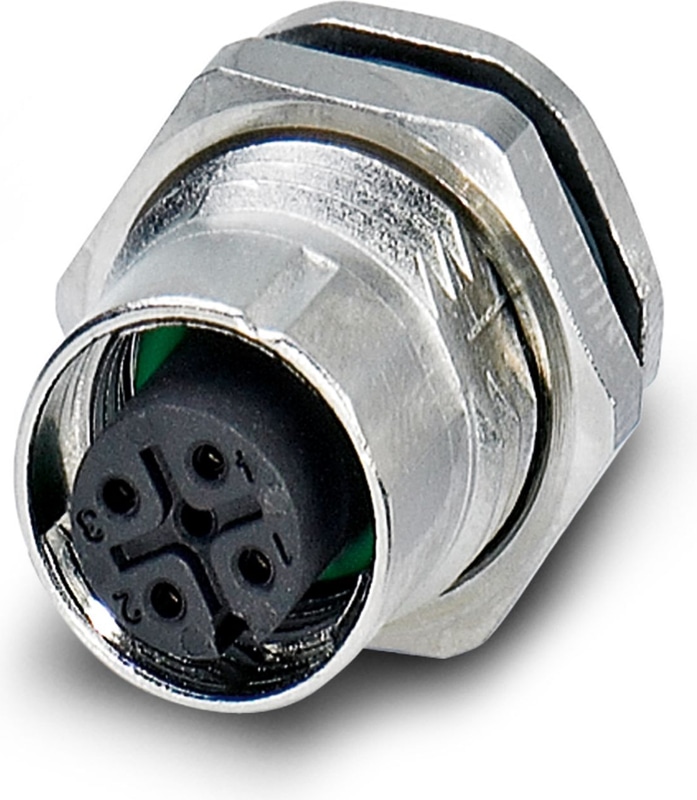

SACC-DSI-M12FS-4CON-M16 SH - Device connector rear mounting

Device connector rear mounting, 4-position, Socket, M12, coding: A, Rear mounting, M16 x 1.5, Wave soldering, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239288

  • Easy PCB assembly: one-piece connectors for wave soldering
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
  • SPEEDCON fast locking system reduces cabling times
  • For high transmission reliability: optional shield connection to the housing by means of shield contact
Technical Specifications

Notes

Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:Lock nut is included in the scope of delivery

Mounting

Mounting TypeRear mounting M16 x 1.5 With flat nut
Assembly instructionsWith flat nut

Product properties

Number of Positions4
Shieldedyes
CodingA
Thread typeM12

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Dimensions

Length of the solder pin6 mm
Length of the solder pin6 mm

Material specifications

Flammability rating according to UL 94V0
Seal materialNBR
Contact MaterialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated

Electrical properties

Rated surge voltage2.5 kV
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN250 V
Nominal current IN4 A

Conductor connection

Connection MethodWave soldering
Contact connection typeSocket
Tightening torque3 Nm ... 4 Nm (Installation-side)

Mechanical data

Insertion/withdrawal cycles> 100

Connection 1

Head designSocket
Head thread typeM12
CodingA

Cable/line

Ambient Temperature (Operation)-40 °C ... 85 °C (cable, fixed installation)
Ambient Temperature (Operation)-25 °C ... 85 °C (Cable, flexible installation)

Ambient conditions

Degree of ProtectionIP67 (When plugged in)
Degree of ProtectionIP65 (When plugged in)
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)-40 °C ... 85 °C (without mechanical actuation)
Ambient Temperature (Operation)-25 °C ... 85 °C (Cable, flexible installation)
Ambient Temperature (Operation)-40 °C ... 85 °C (cable, fixed installation)

M12

Standard designationM12 connector
Standards/specificationsIEC 61076-2-101
Accessories
  • Phoenix Contact1430394
    1430394
    Flat gasket - SACC-M16-SEAL CLM
  • Phoenix Contact1680539
    1680539
    Screw plug - PROT-M12
  • Phoenix Contact1503302
    1503302
    PROT-M12 SH - An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type connectors
  • Phoenix Contact1555538
    1555538
    PROT-M12 FB - M12 high-grade steel screw plug, for unoccupied M12 sockets of the sensor/actuator cables, boxes and flush-type connectors for the food industry

Why Proax for Phoenix Contact 1419771?

Proax is an authorized distributor of Phoenix Contact 1419771 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information

Pack Size20
