SACC-DSI-M12FS-5CON-L180 VA
Weight
0.016 kg
Series SACC-DSI-M

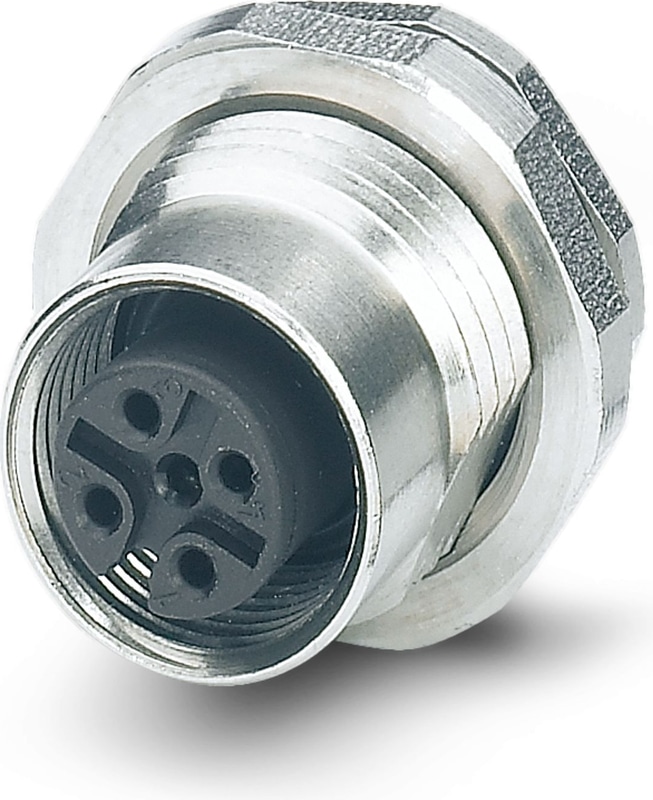

SACC-DSI-M12FS-5CON-L180 VA - Device connector rear mounting

Device connector rear mounting, 5-position, Socket, straight, M12, coding: A, Rear mounting, Pg9, Wave soldering, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240043

  • Easy PCB assembly: one-piece connectors for wave soldering
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
Technical Specifications

Notes

Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:Lock nut is included in the scope of delivery

Mounting

Mounting TypeRear mounting Pg9 With locking nut
Assembly instructionsWith locking nut

Product properties

Number of Positions5
CodingA
Thread typeM12

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Dimensions

Length of the solder pin6 mm
Length of the solder pin6 mm

Material specifications

Flammability rating according to UL 94V0
Seal materialFKM
Contact MaterialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionStainless steel

Electrical properties

Rated surge voltage1.5 kV
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN60 V
Nominal current IN4 A
Test voltage1.5 kV

Conductor connection

Connection MethodWave soldering
Contact connection typeSocket
Tightening torque3 Nm ... 4 Nm (Installation-side)

Mechanical data

Insertion/withdrawal cycles> 100

Connection 1

Head designSocket
Head cable outletstraight
Head thread typeM12
CodingA

Cable/line

Ambient Temperature (Operation)-40 °C ... 85 °C (cable, fixed installation)
Ambient Temperature (Operation)-25 °C ... 85 °C (Cable, flexible installation)

Ambient conditions

Degree of ProtectionIP65/IP67/IP69/IP69K
Degree of ProtectionIP69K
Degree of ProtectionIP65/IP67/IP69K
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)-40 °C ... 85 °C (without mechanical actuation)
Ambient Temperature (Operation)-25 °C ... 85 °C (Cable, flexible installation)
Ambient Temperature (Operation)-40 °C ... 85 °C (cable, fixed installation)

M12

Standard designationM12 connector
Standards/specificationsIEC 61076-2-101
Accessories
  • Phoenix Contact1556320
    1556320
    Flat gasket - SACC-PG9-SEAL CLM
  • Phoenix Contact1680539
    1680539
    Screw plug - PROT-M12
  • Phoenix Contact1503302
    1503302
    PROT-M12 SH - An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type connectors
  • Phoenix Contact1555538
    1555538
    PROT-M12 FB - M12 high-grade steel screw plug, for unoccupied M12 sockets of the sensor/actuator cables, boxes and flush-type connectors for the food industry
