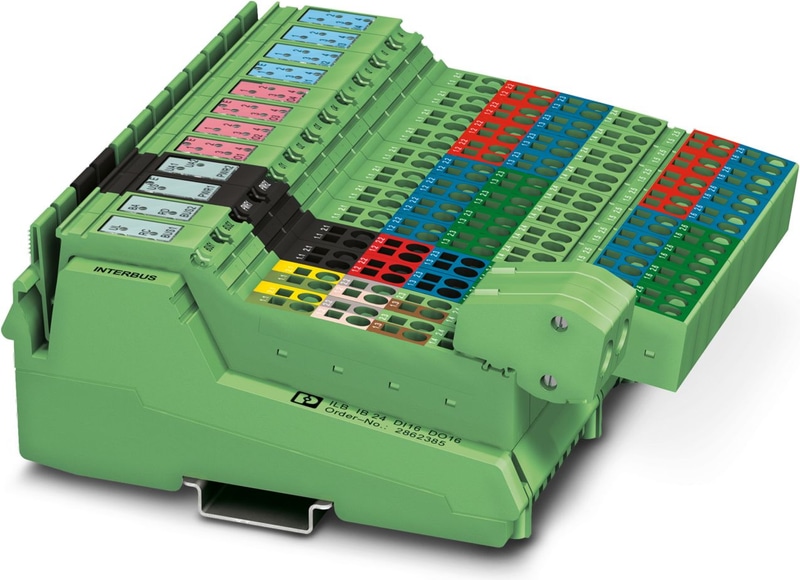

Phoenix Contact 2862385
AllPLC & HMII/O systemsI/O systems for the control cabinet (IP20)

2862385

Official Distributor

By Phoenix Contact

SKU
PHX2862385
MPN
ILB IB 24 DI16 DO16
Weight
0.548 kg
This product is Not Cancellable/Not Returnable
Series ILB-IB

ILB IB 24 DI16 DO16 - I/O module

Inline, Block IO, INTERBUS, Inline shield connector, Digital inputs: 16, 24 V DC, connection technology: 3-conductor, Digital outputs: 16, 24 V DC, connection technology: 3-conductor, degree of protection: IP20, including Inline connector

  • 16 digital inputs
  • 16 digital outputs
  • Maximum permissible load current per sensor: 125 mA
  • Maximum permissible load current from the terminal: 2 A
  • Nominal current per output: 500 mA
  • Total current of the terminal: 8 A
  • Diagnostic and status indicators
Technical Specifications

Dimensions

Width156 mm
Height141 mm
Depth57 mm
Note on dimensionsSpecfications with connectors

Material specifications

Colorgreen

INTERBUS

Connection MethodInline shield connector
Transmission Speed500 kbps

Digital:

Input nameDigital inputs
Description of the inputEN 61131-2 type 1
Number of Inputs16
Connection MethodSpring-cage connection
Connection technology3-conductor
Input Voltage24 V DC
Input voltage range "0" signal-30 V DC ... 5 V DC
Input voltage range "1" signal15 V DC ... 30 V DC
Nominal input voltage UIN24 V DC
Nominal input current at UIN5 mA
Total sensor currentmax. 2 A
Typical response timeapprox. 500 µs
Protective circuitShort-circuit protection, overload protection of the sensor supply
Output nameDigital outputs
Connection MethodSpring-cage connection
Connection technology3-conductor
Number of Outputs16
Protective circuitShort-circuit and overload protection
Output Voltage24 V DC
Maximum Output Current per channel500 mA
Maximum output current per module / terminal block8 A
Maximum Output Current per module8 A
Nominal Output Voltage24 V DC
Nominal load, inductive12 VA
Nominal load, lamp12 W
Nominal load, ohmic12 W

Product properties

Product familyInline
TypeBlock design
Scope of deliveryincluding Inline connector
No. of channels32

Potentials: Communications power (UL)

Supply Voltage24 V DC
Supply Voltage Range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw80 mA

Potentials

Current draw2 A
Supply Voltage24 V DC
Supply Voltage Range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw4 A
Supply Voltage24 V DC
Supply Voltage Range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw4 A

Potentials

Current draw80 mA
Current draw2 A

Electrical isolation/isolation of the voltage ranges

Test voltage: I/Os / incoming remote bus500 V AC, 50 Hz, 1 min.
Test voltage: I/Os / outgoing remote bus500 V AC, 50 Hz, 1 min.
Test voltage: I/O area / FE500 V AC, 50 Hz, 1 min.
Test voltage: Incoming remote bus / FE500 V AC, 50 Hz, 1 min.
Test voltage: Outgoing remote bus / FE500 V AC, 50 Hz, 1 min.
Test voltage: Incoming remote bus / Outgoing remote bus500 V AC, 50 Hz, 1 min.

Connection technology

Connection nameInline connector

Conductor connection

Connection MethodSpring-cage connection
Conductor cross section rigid0.08 mm² ... 1.5 mm²
Conductor cross section flexible0.08 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16
Stripping length8 mm

Inline connector

Connection MethodSpring-cage connection
Conductor cross section, rigid0.08 mm² ... 1.5 mm²
Conductor cross section, flexible0.08 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16
Stripping length8 mm

Ambient conditions

Ambient Temperature (Operation)-25 °C ... 60 °C
Degree of ProtectionIP20
Air pressure (operation)80 kPa ... 108 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)66 kPa ... 108 kPa (up to 3500 m above sea level)
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)max. 85 % (non-condensing)
Permissible humidity (storage/transport)95 % (non-condensing)

Standards and Regulations

Protection classIII (IEC 61140, EN 61140, VDE 0140-1)
Noise emissionClass B (residential)

Mounting

Mounting TypeNS 35/7,5
Mounting TypeDIN rail mounting
Accessories
  • 2727637
    2727637
    IB IL SCN-PWR IN-CP - Connector, colored, for Inline power and segment terminal blocks
  • 2727611
    2727611
    Inline connector - IB IL SCN-12-ICP
  • 2727624
    2727624
    Inline connector - IB IL SCN-12-OCP
  • 2863151
    2863151
    IB IL SCN-6 SHIELD-CP - Shield connector, for INTERBUS connection
  • 3022276
    3022276
    CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
  • 2727501
    2727501
    IB IL FIELD 2 - Marking field, width: 12.2 mm
  • 0809492
    0809492
    Insert strip - ESL 62X10
  • 0803618
    0803618
    Flat zack marker sheet - ZBFM 6/WH:UNBEDRUCKT
