2862330
Official DistributorSKU
PHX2862330
MPN
ILB IB 24 DI16
Weight
0.353 kg
This product is Not Cancellable/Not Returnable
Series ILB-IB

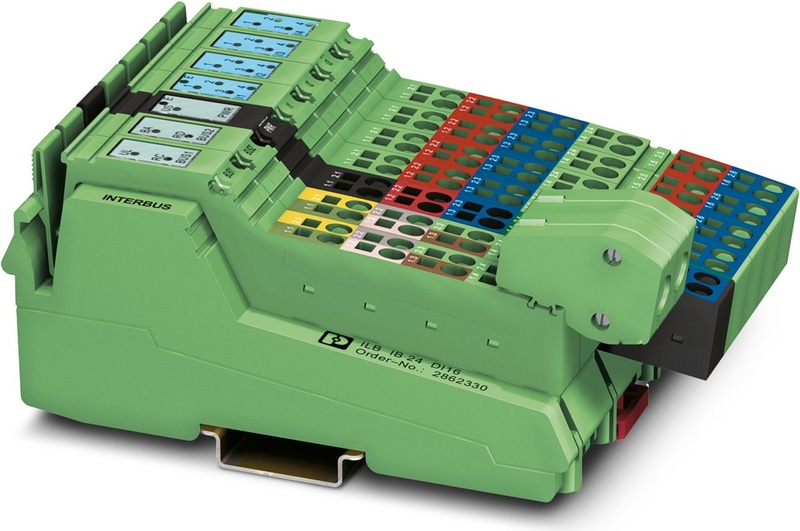

ILB IB 24 DI16 - I/O module
Inline, Block IO, INTERBUS, Inline shield connector, Digital inputs: 16, 24 V DC, connection technology: 3-conductor, degree of protection: IP20, including Inline connector
- Diagnostic and status indicators
- Connection of sensors in 2- and 3-conductor technology
- 16 digital inputs
- Maximum permissible load current per sensor: 125 mA
Technical Specifications
Dimensions
| Width | 95 mm |
| Height | 141 mm |
| Depth | 57 mm |
| Note on dimensions | Specfications with connectors |
Material specifications
| Color | green |
INTERBUS
| Connection Method | Inline shield connector |
| Transmission Speed | 500 kbps |
Digital:
| Input name | Digital inputs |
| Description of the input | EN 61131-2 type 1 |
| Number of Inputs | 16 |
| Connection Method | Spring-cage connection |
| Connection technology | 3-conductor |
| Input Voltage | 24 V DC |
| Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 15 V DC ... 30 V DC |
| Nominal input voltage UIN | 24 V DC |
| Nominal input current at UIN | 5 mA |
| Total sensor current | max. 4 A |
| Typical response time | approx. 500 µs |
| Protective circuit | Short-circuit protection, overload protection of the sensor supply |
Product properties
| Product family | Inline |
| Type | Block design |
| Type | Inline |
| Scope of delivery | including Inline connector |
| No. of channels | 16 |
Potentials: Communications power (UL)
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 60 mA |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 2 A |
Potentials
| Current draw | 60 mA |
| Current draw | 2 A |
Electrical isolation/isolation of the voltage ranges
| Test voltage: I/Os / incoming remote bus | 500 V AC, 50 Hz, 1 min. |
| Test voltage: I/Os / outgoing remote bus | 500 V AC, 50 Hz, 1 min. |
| Test voltage: I/O area / FE | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Incoming remote bus / FE | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Outgoing remote bus / FE | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Incoming remote bus / Outgoing remote bus | 500 V AC, 50 Hz, 1 min. |
Connection technology
| Connection name | Inline connector |
Conductor connection
| Connection Method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
Inline connector
| Connection Method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Degree of Protection | IP20 |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | max. 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Noise emission | Class B (residential) |
Mounting
| Mounting Type | DIN rail mounting |
Accessories
CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
Why Proax for Phoenix Contact 2862330?
Proax is an authorized distributor of Phoenix Contact 2862330 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
