ILB IB 24 DO32
Weight
0.566 kg
This product is Not Cancellable/Not Returnable
Series ILB-IB

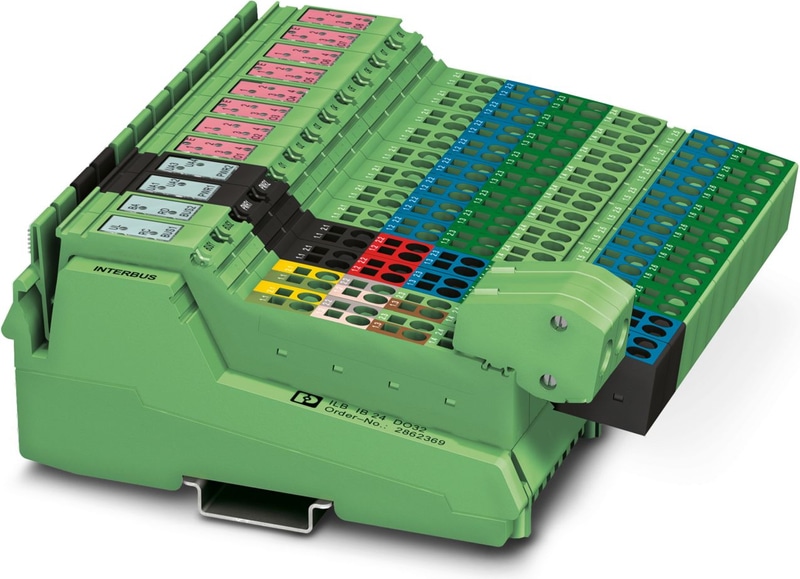

ILB IB 24 DO32 - I/O module
Inline, Block IO, INTERBUS, Inline shield connector, Digital outputs: 32, 24 V DC, connection technology: 3-conductor, degree of protection: IP20, including Inline connector
- 32 digital outputs
- Connection of actuators in 2- and 3-conductor technology
- Nominal current per output: 500 mA
- Total current of the terminal: 16 A
- Short-circuit and overload-protected outputs
- Diagnostic and status indicators
Technical Specifications
Dimensions
| Width | 156 mm |
| Height | 141 mm |
| Depth | 57 mm |
| Note on dimensions | Specfications with connectors |
Material specifications
| Color | green |
INTERBUS
| Connection Method | Inline shield connector |
| Transmission Speed | 500 kbps |
Digital:
| Output name | Digital outputs |
| Connection Method | Spring-cage connection |
| Connection technology | 3-conductor |
| Number of Outputs | 32 |
| Protective circuit | Short-circuit and overload protection |
| Output Voltage | 24 V DC |
| Maximum Output Current per channel | 500 mA |
| Maximum output current per module / terminal block | 16 A |
| Maximum Output Current per module | 16 A |
| Nominal Output Voltage | 24 V DC |
| Nominal load, inductive | 12 VA |
| Nominal load, lamp | 12 W |
| Nominal load, ohmic | 12 W |
Product properties
| Product family | Inline |
| Type | Block design |
| Scope of delivery | including Inline connector |
| No. of channels | 32 |
Potentials: Communications power (UL)
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 85 mA |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 4 A |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 4 A |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 4 A |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | 4 A |
Potentials
| Current draw | 85 mA |
Electrical isolation/isolation of the voltage ranges
| Test voltage: I/Os / incoming remote bus | 500 V AC, 50 Hz, 1 min. |
| Test voltage: I/Os / outgoing remote bus | 500 V AC, 50 Hz, 1 min. |
| Test voltage: I/O area / FE | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Incoming remote bus / FE | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Outgoing remote bus / FE | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Incoming remote bus / Outgoing remote bus | 500 V AC, 50 Hz, 1 min. |
Connection technology
| Connection name | Inline connector |
Conductor connection
| Connection Method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
Inline connector
| Connection Method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Degree of Protection | IP20 |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | max. 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Noise emission | Class B (residential) |
Mounting
| Mounting Type | DIN rail mounting |
Accessories
CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
