Official DistributorSKU
MPN
TTC-6-FC-UT
Weight
0.009 kg
Series TTC

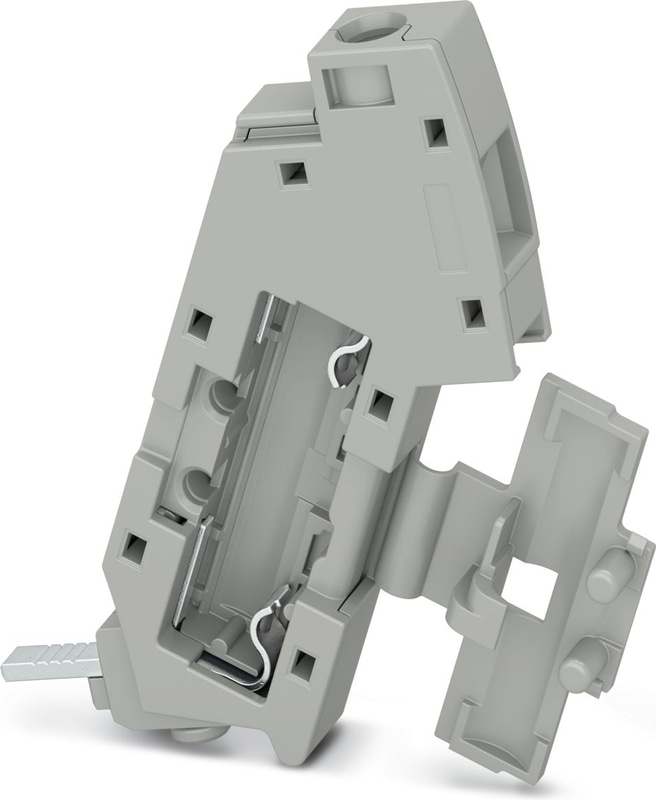

TTC-6-FC-UT - Fuse holder
Fuse carrier for surge protective devices of the TERMITRAB complete product range with screw connection technology. Multi-level connection on TTC-6 housings possible. For conventional 5x20 mm miniature fuses.
Technical Specifications
Product properties
| Product family | TERMITRAB complete |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Connection data
| Connection Method | Screw connection |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 6.2 mm +0.1 mm |
| Height | 24 mm |
| Depth | 47 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PBT |
Mechanical data
| Open side panel | No |
Protective circuit
| Operating voltage range | 60 V DC |
| Rated current | 6.3 A |
| Surge protection fault message | none |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
Standards and Regulations
| Standards/specifications | EN 60947-7-3 |
| Note | 2009 |
Mounting
| Mounting Type | Snapping and screwing components onto TERMITRAB complete |
Why Proax for Phoenix Contact 1054762?
Proax is an authorized distributor of Phoenix Contact 1054762 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
