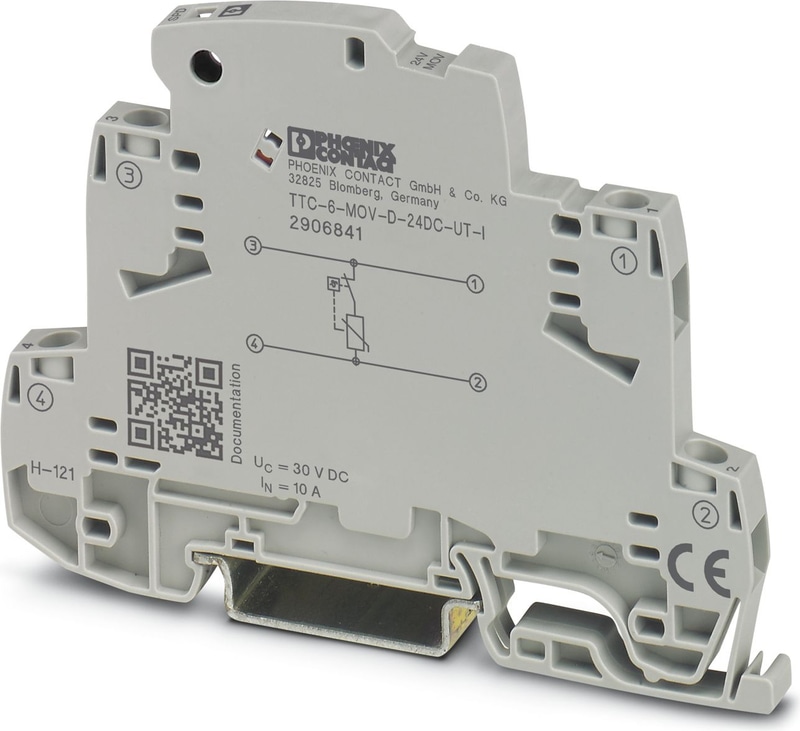

TTC-6-MOV-D-24DC-UT-I - Surge protection device
Medium surge protection with integrated status indicator for a 2-wire floating signal circuit.
- Space-saving and cost-saving with a narrow overall width of just 6 mm
- Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
- Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Technical Specifications
Product properties
| Product family | TERMITRAB complete |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| Type | DIN rail module, one-piece |
| Surge protection fault message | optical |
| Wire pairs per module | 1 |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 24 V DC |
Connection data
| Connection Method | Screw connection |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 6.2 mm |
| Height | 92 mm |
| Depth | 69.5 mm (incl. DIN rail 7.5 mm) |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V-0 |
| Insulating material | PBT |
| Housing Material | PBT |
Mechanical data
| Open side panel | Yes |
Protective circuit
| Direction of action | Line-Line |
| Maximum continuous voltage UC | 30 V DC |
| Maximum continuous voltage UC | 21 V AC |
| Rated current | 10 A (60 °C) |
| Operating effective current IC at UC | ≤ 100 µA |
| Nominal discharge current In (8/20) µs (line-line) | 2 kA |
| Voltage protection level Up (line-line) | ≤ 110 V (C1 - 700 V/350 A) |
| Voltage protection level Up (line-line) | ≤ 160 V (C2 - 4 kV) |
| Voltage protection level Up (line-line) | ≤ 80 V (C3 - 25 A) |
| Response time tA (line-line) | ≤ 25 ns |
| Input attenuation aE, sym. | typ. 0.3 dB (≤ 60 kHz / 150 Ω) |
| Cut-off frequency fg (3 dB), sym. in 150 Ω system | typ. 200 kHz |
| Capacity (core-core) | 10 nF |
| Resistance per path | ≤ 100 mΩ |
| Surge protection fault message | optical |
| Impulse durability (line-line) | C1 - 350 A |
| Impulse durability (line-line) | C2 - 2 kA |
| Impulse durability (line-line) | C3 - 25 A |
Ambient conditions
| Degree of Protection | IP20 (with end cover) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
Standards and Regulations
| Standards/specifications | IEC 61643-21 |
| Note | 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
EN 61643-21
| Standards/specifications | EN 61643-21 |
| Note | 2001 + A1:2009 + A2:2013 |
Mounting
| Mounting Type | DIN rail: 35 mm |
Accessories
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
