Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
TTC-6-FMRS-PT
Weight
0.074 kg
Series TTC

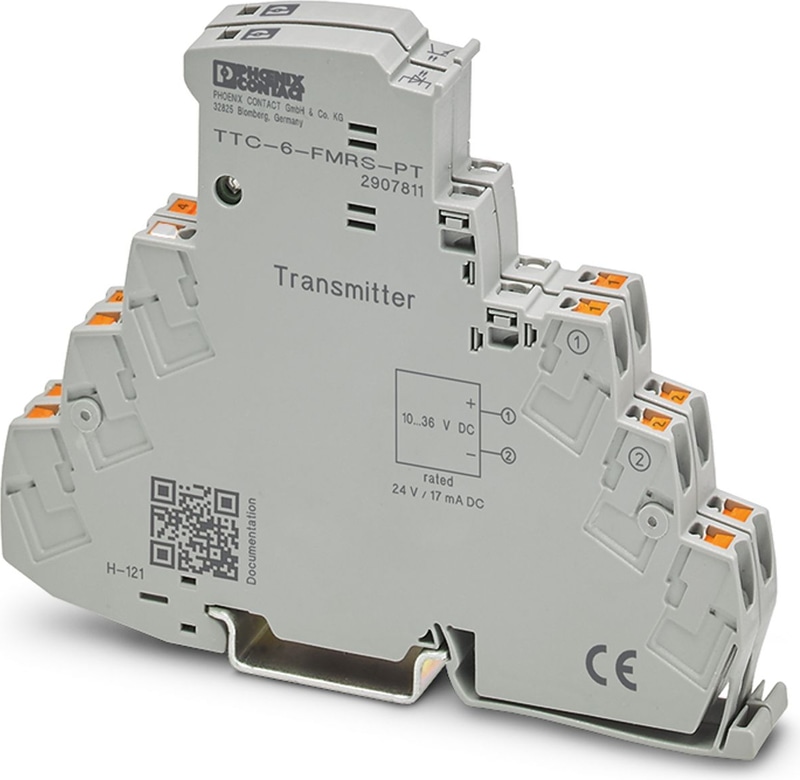

TTC-6-FMRS-PT - Remote signaling set

Module set for the optical monitoring and floating remote signaling of adjacent surge protective devices in the TERMITRAB complete or CLIXTRAB product family. Suitable for directly grounded DIN rails.

  • Space-saving and cost-saving with a narrow overall width of just 6 mm
  • Collective remote monitoring of up to 40 protective devices via optical monitoring
  • Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Technical Specifications

Product properties

Product familyTERMITRAB complete
TypeDIN rail module, one-piece

Insulation characteristics

Pollution degree2

Indicator/remote signaling

Switching functionN/C contact

Supply: Status indicator/remote signaling

Operating Voltage10 V DC ... 36 V DC
Operating current30 mA DC (24 V)
Operating current60 mA DC (10 V)

Connection data

Connection MethodPush-in connection
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 12

Ex data

Altitude≤ 2000 m (amsl)

Dimensions

Width12.6 mm +0.1 mm
Height105.8 mm
Depth83.5 mm (incl. DIN rail 7.5 mm)

Material specifications

Colorgray (RAL 7042)
Colorgray (RAL 7042)
Flammability rating according to UL 94V-0
Insulating materialPBT
Housing MaterialPBT

Protective circuit

Surge protection fault messageOptical, remote indicator contact

Ambient conditions

Degree of ProtectionIP20
Ambient Temperature (Operation)-40 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Altitude≤ 4000 m (amsl)
Permissible humidity (operation)5 % ... 95 %

Conformity/Approvals

UL, USA / CanadaClass I, Div. 2, Groups A, B, C, D T4A

Standards and Regulations

Standards/specificationsEN 61000-6-2
Note2005
Standards/specificationsEN 61000-6-3
Note2007 + A1:2011
Standards/specificationsEN IEC 60079-0
Note2018
Standards/specificationsEN IEC 60079-7
Note2015 + A1:2018
Standards/specificationsIEC 60079-0
Note2017
Standards/specificationsIEC 60079-7
Note2017

Mounting

Mounting TypeDIN rail: TH 35 - 7.5 mm
Accessories
