1038842
Official DistributorSKU
PHX1038842
MPN
BLT-SKT-230-A
Weight
0.041 kg

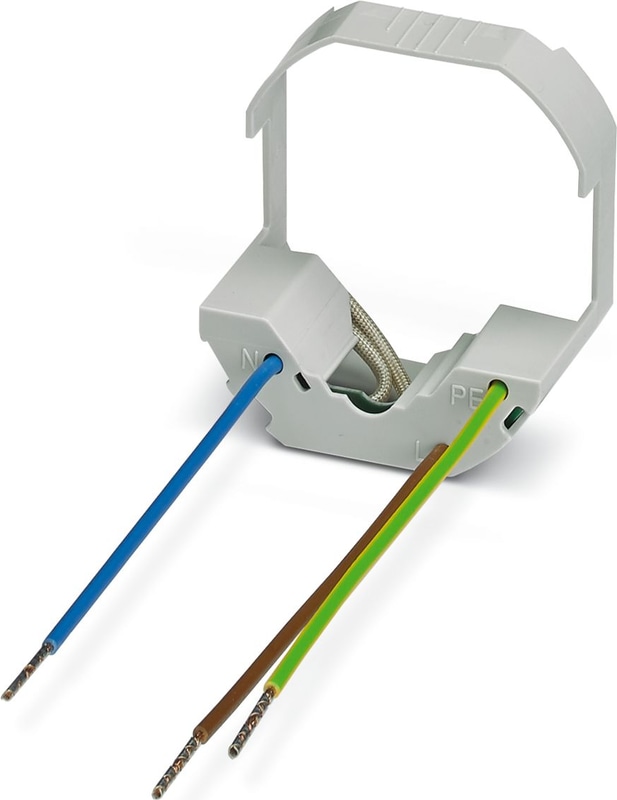

BLT-SKT-230-A - Type 3 surge protection device
Type 3 surge protection for permanent installation on ground contact sockets. Circuit with thermal monitoring, acoustic fault warning.
- Optimal additional protection of the building installation for longer service life and increased availability of the end devices
- Installs easily in deep and flat device sockets, thanks to normative device shape
- Cannot be stolen, since it is part of the fixed installation
- Concealed surge protection, thanks to flush-socket installation
- Can be installed directly using pre-assembled and color-coded cables
Technical Specifications
Product properties
| Product family | BLOCKTRAB |
| IEC power supply system | TN-S |
| IEC power supply system | TT |
| Type | Socket mounting module |
| Number of Positions | 2 |
| Surge protection fault message | Acoustic |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
| IEC test classification | III |
| IEC test classification | T3 |
| EN type | T3 |
| Number of Ports | One |
Connection data
| Connection Method | Single wires |
Dimensions
| Width | 53 mm |
| Height | 53 mm |
| Depth | 32 mm |
Material specifications
| Color | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PA 6.6-FR |
| Material group | I |
| Housing Material | PA 6.6-FR |
Protective circuit
| Mode of protection | L-N |
| Mode of protection | L-PE |
| Mode of protection | N-PE |
| Direction of action | 1L-N & N-PE |
| Nominal voltage UN | 230 V AC (TN-S) |
| Nominal voltage UN | 230 V AC (TT - only in use with RCD) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 255 V AC |
| Residual current IPE | ≤ 5 µA |
| Reference test voltage UREF | 255.00 V AC |
| Maximum discharge current Imax (8/20) µs | 4 kA |
| Combination wave UOC | 6 kV |
| Voltage protection level Up | ≤ 1.5 kV |
| TOV behavior at UT (L-N) | 440 V AC (5 s / withstand mode) |
| TOV behavior at UT (L-N) | 440 V AC (120 min / withstand mode) |
| TOV behavior at UT (L-PE) | 440 V AC (5 s / withstand mode) |
| TOV behavior at UT (L-PE) | 440 V AC (120 min / withstand mode) |
| TOV behavior at UT (L-PE) | 1455 V AC (200 ms / safe failure mode) |
| TOV behavior at UT (N-PE) | 1200 V AC (200 ms / safe failure mode) |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Response time tA (N-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (MCB B) |
| Short-circuit current rating ISCCR | 1 kA AC |
Ambient conditions
| Degree of Protection | IP20 (Installed) |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
EN 61643-11
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | in device sockets of insulating material with standard ground contact sockets |
Accessories
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
