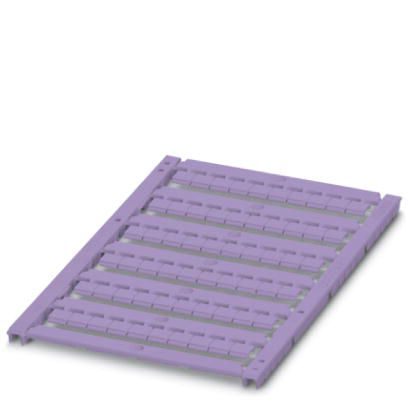

Marker for terminal blocks - UCT-TMF 6 VT
Marker for terminal blocks, Sheet, violet, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: snap in, for terminal block width: 6.2 mm, lettering field size: 5.4 x 4.7 mm, Number of individual labels: 60
- The UCT-TM... UniCard labeling range includes markers for Phoenix Contact products with tall and flat marker grooves, e.g. terminals
- Labeling service: Phoenix Contact can custom-label all UniCard markers according to your requirements
- The multi-section marking strips are easy to fit and can be easily separated if required
- The markers, which are supplied in uniform sheets, can be labeled quickly, easily, and precisely using the THERMOMARK CARD and the BLUEMARK LED
- The sheets provide space for including function texts
Technical Specifications
Dimensions
| Length (b) | 5 mm |
| Width (a) | 5.6 mm |
| Height (c) | 1.64 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 120 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Note | Can be labeled via thermal transfer |
| Color | violet |
| Slot type | flat |
| Components | free from silicone and halogen |
| Material | PC |
| Flammability rating according to UL 94 | V0 |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 60 |
| Number of individual labels per row | 10 |
| Mounting Type | snap in |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Testing substances harmful to the wetting properties of lacquers (LABS conformity) | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| UV resistance | Following ISO 4892-2:2013-03 |
| Result | Test passed |
| Test duration | 96 h |
| Test for wipe resistance of inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test for wipe resistance of inscriptions | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Testing in a condensation changing climate in the presence of sulfur dioxide | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1,0 S |
| Cycles | 2 |
| Salt spray test | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Silicone-free | Yes |
| Halogen-free | Yes |
