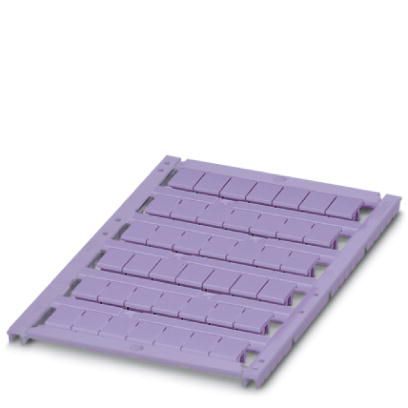

Marker for terminal blocks - UCT-TM 8 VT
Marker for terminal blocks, Sheet, violet, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: snap in, for terminal block width: 8.2 mm, lettering field size: 7.6 x 10.5 mm, Number of individual labels: 42
- The UCT-TM... UniCard labeling range includes markers for Phoenix Contact products with tall marker grooves, e.g. terminals
- Labeling service: Phoenix Contact can custom-label all UniCard markers according to your requirements
Technical Specifications
Dimensions
| Length (b) | 10.5 mm |
| Width (a) | 7.6 mm |
| Height (c) | 4.76 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 120 °C |
General
| Note | Can be labeled via thermal transfer |
| Color | violet |
| Slot type | high |
| Components | free from silicone and halogen |
| Material | PC |
| Flammability rating according to UL 94 | V0 |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 42 |
| Number of individual labels per row | 7 |
| Mounting Type | snap in |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Testing substances harmful to the wetting properties of lacquers (LABS conformity) | VDMA 24364-A1-L:2018-05 |
| Result | Test passed |
| Result | Test passed |
| UV resistance | Following ISO 4892-2:2013-03 |
| Result | Test passed |
| Test duration | 96 h |
| Temperature resistance | Following ANSI/UL 969-2018:03 |
| Test duration | 240 h |
| Rating 100 °C (121 °C) | Test passed |
| Test for wipe resistance of inscriptions | DIN EN 61010-1 (VDE 0411-01):2020-03 |
| Test for wipe resistance of inscriptions | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Test duration | 168 h |
| Test duration | 168 h |
| Testing in a condensation changing climate in the presence of sulfur dioxide | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1,0 S |
| Cycles | 2 |
| Salt spray test | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
| Silicone-free | Yes |
| Halogen-free | Yes |
Accessories
THERMOMARK CARD-UCT-MAG1, Magazine for the THERMOMARK CARD printer, for accommodating UCT sheets (UCT-TM..., UCT1-TM..., UCT5-TM...)
TMP-UCT-MAG1 - Magazine, for the THERMOMARK PRIME and the THERMOMARK CARD, for accommodating UCT-TM..., UCT1(U)-TM..., UCT5-TM..., UCT-EM (5x10), UCT-EM (6x10), length: 0.166 m, width: 114 mm, height: 11.5 mm
