2857015
Official DistributorSKU
PHX2857015
MPN
MNT-1 D/WH
Weight
0.117 kg
Series MNT

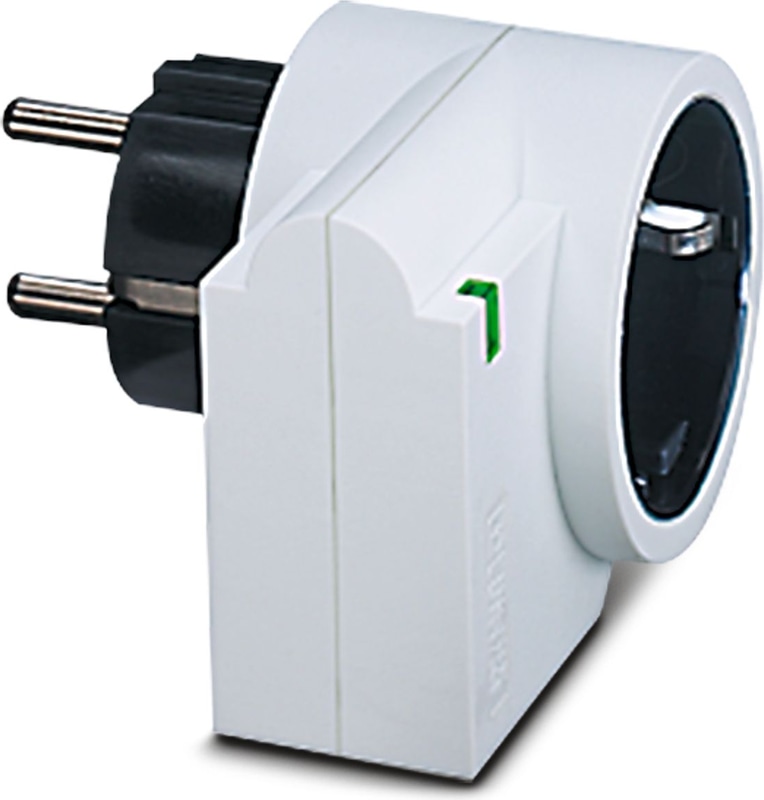

MNT-1 D/WH - Type 3 surge protection device
Attachment connector with surge protection for mains sockets, mains control lamp, optical power and error display. For country-specific use in: D, A, I, NL, S, N, FIN, E, P. Color: White
Technical Specifications
Product properties
| Type | Attachment plug |
| For country-specific use in | D, A, I, NL, S, E, FIN, P |
| Surge protection fault message | optical |
| IEC test classification | III |
| EN type | T3 |
Dimensions
| Width | 56 mm |
| Height | 76.3 mm |
| Depth | 78.2 mm |
Material specifications
| Housing Material | PA |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | 1L-N & N-PE |
| Nominal frequency fN | 50 Hz |
| Nominal frequency fN | 60 Hz |
| Maximum continuous voltage UC | 250 V AC |
| Residual current IPE | ≤ 1 µA |
| Operating effective current IC at UC | ≤ 4 mA |
| Nominal discharge current In (8/20) µs (L-N) | 1.5 kA |
| Nominal discharge current In (8/20) µs (L-PE) | 1.5 kA |
| Maximum discharge current Imax (8/20) µs | 5 kA (total current) |
| 100 % lightning impulse sparkover voltage (1.2/50) µs (L-PE) | ≤ 1.1 kV |
| Energy absorption symmetrical | 80 J |
| Enery absorption, asymmetrical | 40 J |
| Voltage protection level Up (L-N) | ≤ 1 kV |
| Voltage protection level Up (L-PE) | ≤ 1.5 kV |
| Voltage protection level Up (N-PE) | ≤ 1.5 kV |
| Residual voltage at In | ≤ 1.2 kV |
| Residual voltage at In | ≤ 900 V |
| Residual voltage at In | ≤ 900 V |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (gL) |
Ambient conditions
| Degree of Protection | IP40 |
| Ambient Temperature (Operation) | -20 °C ... 75 °C |
Standards
| Standards/regulations | IEC 61643-1 |
| Standards/regulations | DIN VDE 0675-6 |
Mounting
| Mounting Type | Plugging into the mains socket |
