2818177
Official DistributorSKU
PHX2818177
MPN
MNT-1 B/F
Weight
0.114 kg
Series MNT

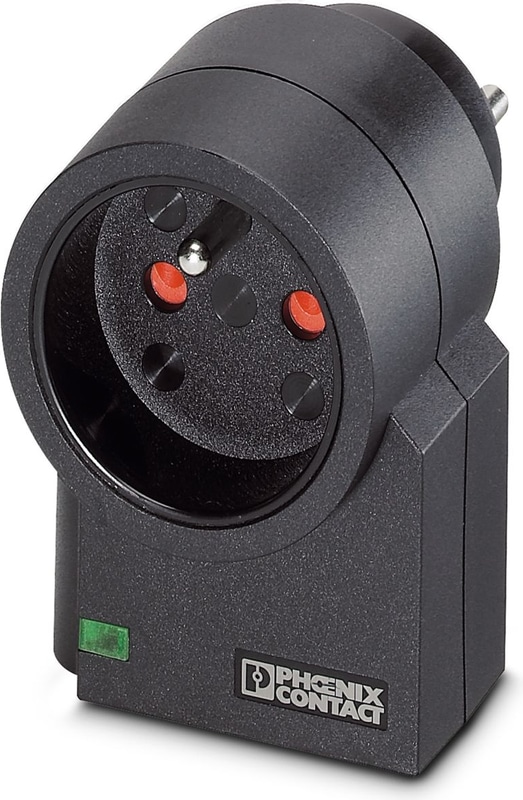

MNT-1 B/F - Type 3 surge protection device
Attachment plug with surge protection for mains sockets, optical power and error display.
Technical Specifications
Product properties
| Type | Attachment plug |
| For country-specific use in | B, F, CZ, SVK, PL |
| Surge protection fault message | optical |
| IEC test classification | III |
| EN type | T3 |
Dimensions
| Width | 63 mm |
| Height | 79 mm |
| Depth | 75.5 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing Material | PA |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | 1L-N & N-PE |
| Nominal frequency fN | 50 Hz |
| Nominal frequency fN | 60 Hz |
| Maximum continuous operating voltage UC (L-PE) | 250 V AC |
| Residual current IPE | ≤ 1 µA |
| Operating effective current IC at UC | ≤ 0.8 mA |
| Nominal discharge current In (8/20) µs (L-N) | 1.5 kA |
| Nominal discharge current In (8/20) µs (L-PE) | 1.5 kA |
| Maximum discharge current Imax (8/20) µs | 5 kA (total current) |
| 100 % lightning impulse sparkover voltage (1.2/50) µs (L-PE) | ≤ 1.1 kV |
| Energy absorption symmetrical | 80 J |
| Enery absorption, asymmetrical | 40 J |
| Voltage protection level Up (L-N) | ≤ 1 kV |
| Voltage protection level Up (L-PE) | ≤ 1.5 kV |
| Voltage protection level Up (N-PE) | ≤ 1.5 kV |
| Residual voltage at In | ≤ 1.2 kV |
| Residual voltage at In | ≤ 900 V |
| Residual voltage at In | ≤ 900 V |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (gL) |
Ambient conditions
| Degree of Protection | IP40, child-proof |
| Ambient Temperature (Operation) | -20 °C ... 75 °C |
Standards
| Standards/regulations | DIN VDE 0675-6 |
| Standards/regulations | IEC 61643-1 |
Mounting
| Mounting Type | Plugging into the mains socket |
Why Proax for Phoenix Contact 2818177?
Proax is an authorized distributor of Phoenix Contact 2818177 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
