2856993
Official DistributorSKU
PHX2856993
MPN
C-TV-SAT
Weight
0.073 kg

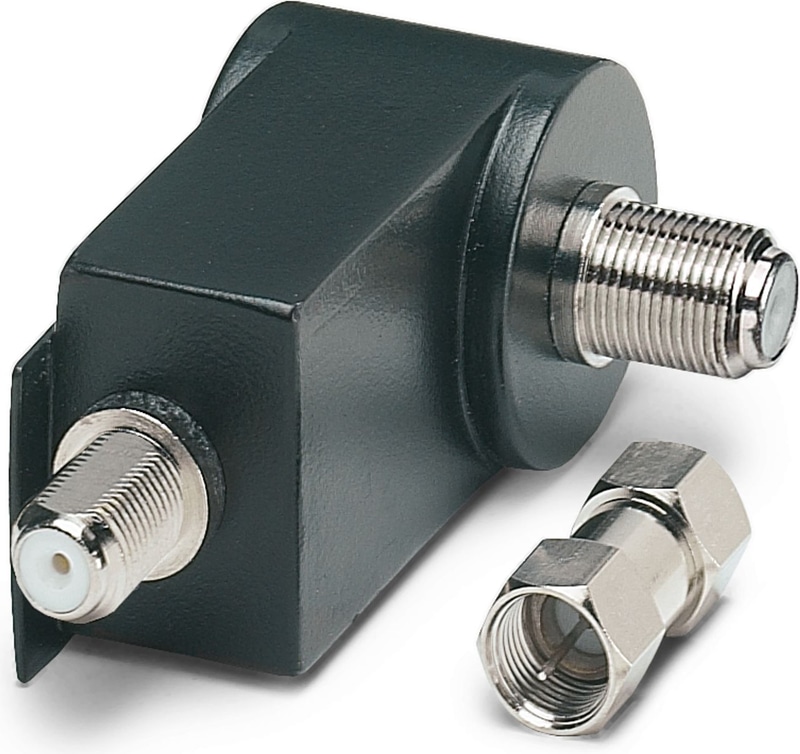

C-TV-SAT - Surge protection device
Attachment plug with surge protection for antenna inputs with F connector
- No signal interference with optimum transmission properties
- Space-saving, thanks to the compact design
- Ideal addition to the C-SAT-Box for direct end-device protection
Technical Specifications
Product properties
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| Type | Attachment plug |
| Number of Positions | 1 |
| Surge protection fault message | none |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Connection data
| Connection Method | F connector |
Dimensions
| Width | 28 mm |
| Height | 44 mm |
| Depth | 66 mm |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA 6.6 |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Shield/Earth Ground |
| Maximum continuous voltage UC | 24 V DC |
| Rated current | 1.5 A (25 °C) |
| Operating effective current IC at UC | ≤ 1 µA |
| Residual current IPE | ≤ 1 µA |
| Nominal discharge current In (8/20) µs (line-shield) | 2.5 kA |
| Pulse discharge current Iimp (10/350) µs | 0.5 kA |
| Nominal pulse current Ian (10/1000) µs (line-shield) | 120 A |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 600 V |
| Output voltage limitation at 1 kV/µs (line-shield) static | ≤ 600 V |
| Residual voltage at In (conductor-shield) | ≤ 30 V |
| Voltage protection level Up (line-shield) | ≤ 700 V (C2 - 4 kV / 2 kA) |
| Voltage protection level Up (line-shield) | ≤ 800 V (C2 - 5 kV/2,5 kA) |
| Response time tA (line-shield) | ≤ 100 ns |
| Input attenuation aE, asym. | typ. 0.5 dB (≤ 2.4 GHz /75 Ω) |
| Cut-off frequency fg (3 dB), asym. (shield) in 75 Ω system | > 3 GHz |
| Frequency Range | 4.7 MHz ... 2.5 GHz |
| Capacity asymmetrical (shield) | typ. 10 pF |
| Surge protection fault message | none |
| Impulse durability (line-shield) | C2 - 4 kV/2 kA |
| Impulse durability (line-shield) | C2 - 5 kV / 2.5 kA |
| Impulse durability (line-shield) | C3 - 100 A |
| Impulse durability (line-shield) | D1 - 500 A |
| Alternating current carrying capacity (line-shield) | 5 A - 1 s |
| Pulse reset time (line-shield) | < 3 s |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
| Altitude | ≤ 2000 m (amsl) |
Standards and Regulations
| Standards/specifications | IEC 61643-21 |
| Note | 2012 |
| Standards/specifications | EN 61643-21 |
| Note | 2013 |
| Standards/specifications | EN 50083 |
| Note | CLASS-A |
Mounting
| Mounting Type | Connection-specific intermediate plugging |
