Official DistributorSKU
MPN
SFP 1-20/120AC
Weight
0.615 kg
Series SFP

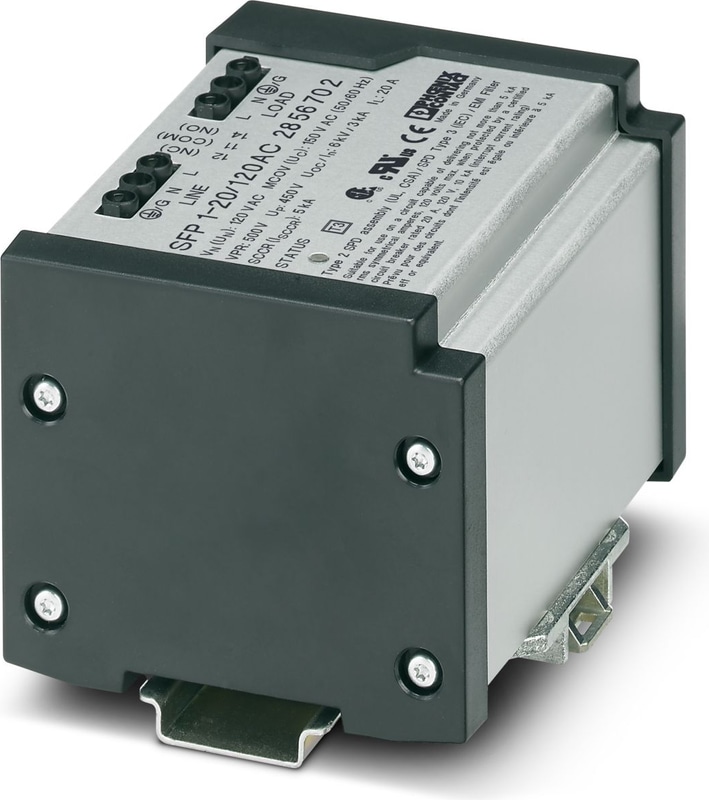

SFP 1-20/120AC - EMC filter surge protection device
Device protection, according to type 3/class III, with mains interference filter to prevent high-frequency interference voltages, for 1-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE), with remote indication contact.
- Optimized protective effect with combined protective circuit for absorbing transient overvoltages for attenuating high-frequency interference
- Symmetrical design of the protective circuit with surge protection components on the input and output sides of the filter
- Protection against excessive heating with thermal monitoring of the protective circuit
- Versatile in use with universal circuit design
Technical Specifications
General
| Note | For IT systems: only install the device in 120 V IT systems with common HV/LV grounding system. |
Product properties
| Product family | SFP |
| Type | DIN rail module, one-piece |
| Number of Positions | 2 |
| For country-specific use in | USA, CN, BR |
| Surge protection fault message | Optical, remote indicator contact |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
| IEC test classification | III |
| IEC test classification | T3 |
| EN type | T3 |
| Number of Ports | Two |
Indicator/remote signaling
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact |
| Operating Voltage | 12 V AC ... 250 V AC |
| Operating Voltage | 250 V DC (250 mA DC) |
| Operating current | 100 mA AC ... 1 A AC |
| Operating current | 1 A DC (48 V DC) |
Connection data
| Connection Method | Screw terminal blocks |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Tightening torque | 4.5 lbf-in. ... 5.5 lbf-in. |
| Conductor cross section flexible | 2.5 mm² ... 4 mm² |
| Conductor cross section rigid | 2.5 mm² ... 6 mm² |
| Conductor cross section AWG | 14 ... 10 |
Dimensions
| Width | 112 mm |
| Height | 86.6 mm |
| Depth | 79 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | Silver |
| Flammability rating according to UL 94 | V-0 |
| Insulating material | ABS |
| Housing Material | Aluminum |
Mechanical data
| Open side panel | No |
Protective circuit
| Mode of protection | L-N |
| Mode of protection | L-PE |
| Mode of protection | N-PE |
| Direction of action | L-N & L(N)-PE |
| Nominal voltage UN | 120 V AC (TN) |
| Nominal voltage UN | 120 V AC (TT - only in use with RCD) |
| Nominal voltage UN | 120 V AC (IT) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 150 V AC |
| Rated load current IL | 20 A (40 °C) |
| Residual current IPE | ≤ 0.6 mA |
| Standby power consumption PC | ≤ 7.50 VA (at UREF) |
| Standby power consumption PC | ≤ 10.00 VA (at UC) |
| Reference test voltage UREF | 132.00 V AC |
| Nominal discharge current In (8/20) µs | 3 kA |
| Combination wave UOC | 6 kV (3 kA) |
| Voltage protection level Up | ≤ 0.45 kV |
| TOV behavior at UT (L-N) | 175 V AC (5 s / withstand mode) |
| TOV behavior at UT (L-N) | 240 V AC (5 s / safe failure mode) |
| TOV behavior at UT (L-N) | 208 V AC (120 min / safe failure mode) |
| TOV behavior at UT (L-PE) | 208 V AC (5 s / withstand mode) |
| TOV behavior at UT (L-PE) | 175 V AC (120 min / withstand mode) |
| TOV behavior at UT (L-PE) | 1332 V AC (200 ms / safe failure mode) |
| TOV behavior at UT (N-PE) | 1200 V AC (200 ms / safe failure mode) |
| Response time tA | ≤ 25 ns |
| Capacity (L-N) | 1 µF ±10 % |
| Capacity (L-N) | 10 nF ±10 % (X2-275 V) |
| Capacity (L-PE) | 2.2 nF ±20 % (Y2-250 V) |
| Capacity (N-PE) | 2.2 nF ±20 % (Y2-250 V) |
| Max. required back-up fuse | 20 A (MCB B/general purpose) |
| Max. required back-up fuse | 16 A (IT - MCB B/general purpose) |
| Input attenuation aE, sym. | 20 dB (≥ 100 kHz / 50 Ω) |
| Input attenuation aE, asym. | 30 dB (≥ 1 MHz / 50 Ω) |
| Short-circuit current rating ISCCR | 5 kA AC (TN/TT) |
| Short-circuit current rating ISCCR | 1 kA AC (IT) |
Filter data
| Discharge resistance | 820 kΩ |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
UL specifications
| Maximum continuous operating voltage MCOV (L-N) | 150 V AC |
| Maximum continuous operating voltage MCOV (L-G) | 150 V AC |
| Maximum continuous operating voltage MCOV (N-G) | 150 V AC |
| Short-circuit current rating (SCCR) | 5 kA |
| Voltage protection rating VPR (L-N) | 500 V |
| Voltage protection rating VPR (L-G) | 500 V |
| Voltage protection rating VPR (N-G) | 500 V |
| Nominal discharge current In | 3 kA |
| Mode of protection | L-N |
| Mode of protection | L-G |
| Mode of protection | N-G |
| Power distribution system | Single phase |
| Nominal frequency | 50/60 Hz |
| SPD Type | 2CA |
UL indicator/remote signaling
| Operating Voltage | 12 V AC ... 250 V AC |
| DC operating voltage | 250 V DC (250 mA DC) |
| AC operating current | 100 mA AC ... 1 A AC |
| DC operating current | 1 A DC (48 V DC) |
UL connection data
| Tightening torque | 5 lbf-in. ... 7 lbf-in. |
| Conductor cross section AWG | 12 ... 10 |
Air clearances and creepage distances
| Standards/regulations | DIN VDE 0110-1 / IEC 60664-1 / IEC 61643-1 |
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | DIN rail: 35 mm |
