2838649
Official DistributorSKU
PHX2838649
MPN
CTM EST
Weight
0.008 kg
This product is Not Cancellable/Not Returnable

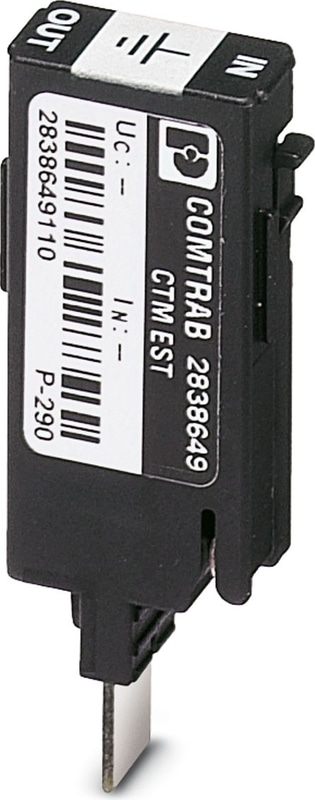

CTM EST - Short-circuit connector
LSA-PLUS grounding plug (COMTRAB CTM) to short-circuit and ground potentials in CT-TERMIBLOCK... and disconnect strip CT 10...
- Space-saving due to compact design
- Flexible fields of application with modular protective plug
- Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Technical Specifications
Product properties
| Product family | COMTRAB |
| Type | LSA-PLUS module |
| Number of Positions | 2 |
Dimensions
| Width | 9.5 mm |
| Height | 21 mm |
| Depth | 53.5 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | Copper |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA |
Mechanical data
| Open side panel | No |
Protective circuit
| Rated current | 1.5 A (25 °C) |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Total discharge current Itotal (10/350) µs | 2.5 kA |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
Air clearances and creepage distances
| Standards/regulations | DIN VDE 0110-1 / IEC 60664-1 |
Mounting
| Mounting Type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
Why Proax for Phoenix Contact 2838649?
Proax is an authorized distributor of Phoenix Contact 2838649 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
