IBS RL 24 OC-LK

Weight

0.714 kg

This product is Not Cancellable/Not Returnable

Series IBS-RL

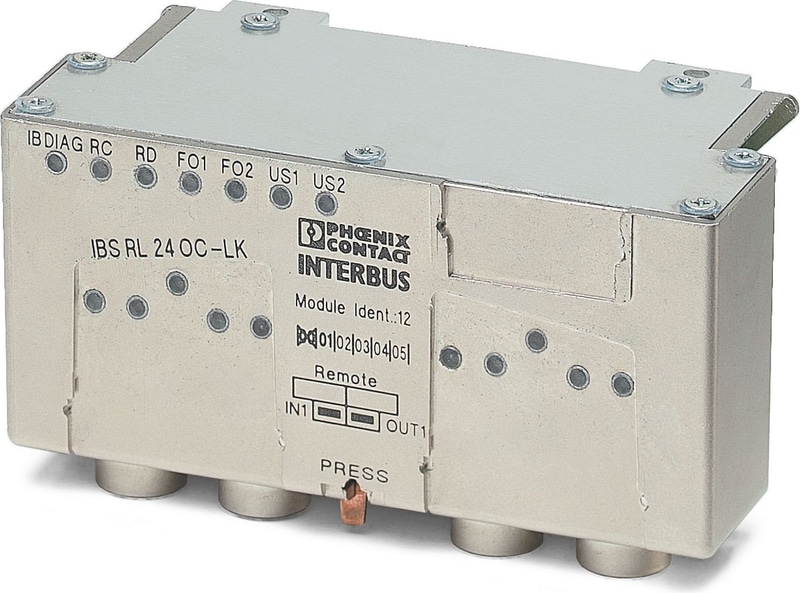

IBS RL 24 OC-LK - Monitoring block

Repeater for signal monitoring and amplification for INTERBUS; fiber optic technology with 500 kbaud, divides the system into segments and enables individual branches to be switched off during operation

Rugged metal housing
Comprehensive diagnostic functions
M12 connector for I/O devices
Rugged Line connector for INTERBUS, either with fiber optic or twisted pair, and supply voltage

Dimensions

Width	127 mm
Height	67 mm
Depth	71 mm

INTERBUS

Connection Method	IP67-RL connector with FO connection
Transmission Speed	500 kbps

Module

ID code (dec.)	0C
ID code (hex)	12
Length code (hex)	0
Length code (dec)	0
Process data channel	0 bit
Input address area	0 Byte
Output address area	0 Byte
Register length	0 bit

Product properties

Product family	Ruggedline
Type	Block design

Supply: Module electronics

Supply Voltage	24 V DC
Supply Voltage Range	18.5 V DC ... 32 V DC (including ripple)
Ripple	Max 3.6 VSS within the permissible voltage range

Connection data

Connection Method

M12 connector

Ambient conditions

Ambient Temperature (Operation)	0 °C ... 55 °C
Degree of Protection	IP65/IP67
Air pressure (operation)	860 hPa ... 1080 hPa (up to 1500 m above sea level)
Air pressure (storage/transport)	660 hPa ... 1080 hPa (up to 3500 m above sea level)
Ambient temperature (storage/transport)	-25 °C ... 70 °C
Permissible humidity (operation)	100 %
Permissible humidity (storage/transport)	95 % (non-condensing)

Standards and Regulations

Protection class

III (IEC 61140, EN 61140, VDE 0140-1)

Air clearances and creepage distances

in accordance with EN 50178: 1998

Mounting

Mounting Type	on mounting panel
Mounting Type	Wall mounting
