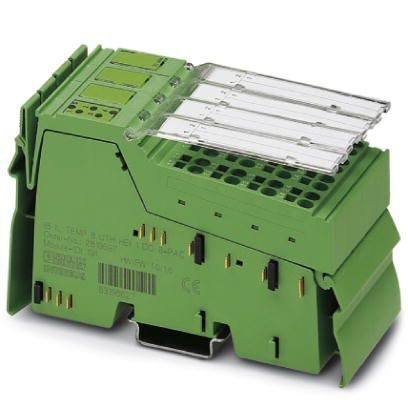

Inline function terminal - IB IL TEMP 8 UTH HEI 1 DO8-PAC
Inline temperature measurement terminal, complete with accessories (connector and labeling field) with process data multiplex with 8 thermocouple inputs, 8 binary outputs (24 V, 70 mA), 1 input for recording the total current of heating elements.
- I/Os for 8 closed-loop control circuits
- Connection of thermocouples according to DIN EN 60584-1 and DIN 43710
- Output for solid-state relay
- Input for heating current acquisition
Technical Specifications
Dimensions
| Width | 48.8 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75% average, 85% seldom |
| Permissible humidity (storage/transport) | 75% average, 85% seldom |
| Degree of Protection | IP20 |
General
| Mounting Type | DIN rail |
| Color | green |
| Net weight | 122 g |
Interfaces
| Designation | Inline local bus |
| Connection Method | Inline data jumper |
| Transmission Speed | 500 kbps |
| Transmission physics | Copper |
Inline potentials
| Designation | Communications power (UL) |
| Supply Voltage | 7.5 V DC (via voltage jumper) |
| Current consumption | typ. 90 mA |
| Current consumption | max. 150 mA |
| Designation | Supply of analog modules (UANA) |
| Supply Voltage | 24 V DC (via voltage jumper) |
| Supply Voltage Range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 20 mA |
| Current consumption | max. 30 mA |
| Designation | Segment circuit supply (US) |
| Supply Voltage | 24 V DC (via voltage jumper) |
| Supply Voltage Range | 19.2 V DC ... 30 V DC |
| Current consumption | max. 600 mA |
Analog inputs
| Input name | Analog UTH inputs |
| Number of Inputs | 8 |
| Connection Method | Spring-cage connection |
| Connection technology | 2-conductor (floating) |
| Sensor types that can be used (TC) | B, C, D, E, J, K, L, N, R, S, T |
| Measured value representation | Depends on thermocouple |
| A/D conversion time | max. 225 ms |
Digital outputs
| Output name | Digital outputs |
| Number of Outputs | 8 |
| Output Voltage | 24 V DC |
| Output Current | 70 mA (short-circuit-proof) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
