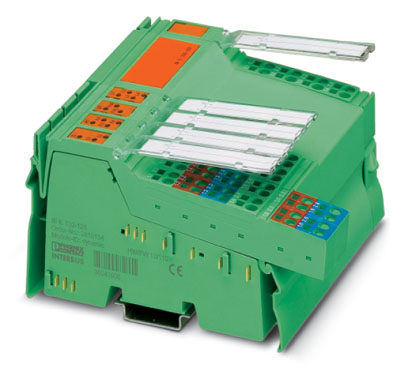

2819642
Official DistributorSKU
PHX2819642
Weight
0.486 kg
Inline CPU, for Assembler or "C" programming, 256 kbyte RAM, complete with accessories (connector and labeling field), transmission speed 2 Mbaud
Technical Specifications
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
| Degree of Protection | IP20 |
| Programming Tool | High-level language |
| Weight | 260 g |
| Diagnostics display | No |
| Controller redundancy | No |
| Interface | INTERBUS local bus (master) |
| Connection Method | Inline data jumper |
| Transmission Speed | 500 kBaud / 2 MBaud (can be switched) |
| Interface | Lower-level I/O expansion |
| Connection Method | Inline power distributor (can be integrated in Loop) |
| Interface | Integrated inputs /outputs |
| Connection Method | 2 Inline double signal connectors |
| Interface | BDM interface |
| Connection Method | 8-pos. Inline connector |
| Interface | RS-422/-485 |
| Typical current consumption | 650 mA |
| Supply Voltage | 7.5 V DC |
| Power dissipation | max. 4.875 W |
| Memory Type | RAM 32 kByte RAM, FLASH-EPROM 16 kByte, NV-RAM 1 kByte |
| Amount of Process Data | 0 ... 6 words (configurable) |
| Number of parameter data | 0 ... 4 words (configurable) |
| Number of supported devices | 64 |
| Number of devices with parameter channel | 8 |
| Clock frequency | 20 MHz |
| CPU | MC 68332 |
| Number of Inputs | 6 |
| Connection Method | Inline connector |
| Number of Outputs | 2 |
| Maximum Output Current per channel | 500 mA |
