Phoenix Contact 2775375
AllConnectorsTerminal blocksScrew connection
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
UDK 3
Weight
0.013 kg
Series UDK

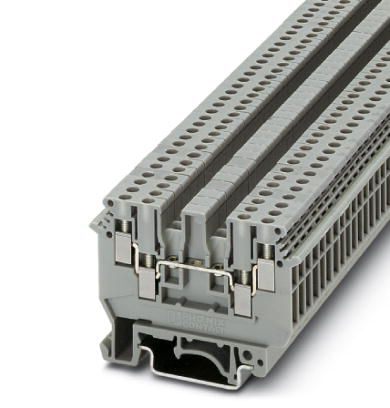

UDK 3 - Feed-through terminal block

1-level terminal block with double connection on both sides, cross section: 0.2 - 2.5 mm2, AWG: 30 - 12, width: 5.2 mm, color: gray

  • Two connection points on each side to accommodate several conductors
  • Double bridge shaft enables individual potential distribution and supply
Technical Specifications

General

Number of rows2
Number of Connections4
Potentials1
Nominal cross section2.5 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V2
Mounting TypeNS 35/7,5
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.77 W
Maximum Load Current32 A (in case of a 4 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors.)
Nominal current IN24 A (with 4 mm² conductor cross section)
Nominal voltage UN500 V
Open side panelYes
General informationThe max. load current must not be exceeded by the total current of all connected conductors.
Shock protection test specificationDIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protectionguaranteed
Finger protectionguaranteed
Result of surge voltage testTest passed
Surge voltage test setpoint7.3 kV
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint1.89 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)Test passed
Result of flexion and pull-out testTest passed
Bending test rotation speed10 rpm
Bending test turns135
Bending test conductor cross section/weight0.2 mm² / 0.2 kg
Bending test conductor cross section/weight2.5 mm² / 0.7 kg
Bending test conductor cross section/weight4 mm² / 0.9 kg
Tensile test resultTest passed
Conductor cross section tensile test0.2 mm²
Tractive force setpoint10 N
Conductor cross section tensile test2.5 mm²
Tractive force setpoint50 N
Conductor cross section tensile test4 mm²
Tractive force setpoint60 N
Result of tight fit on supportTest passed
Tight fit on carrierNS 32/NS 35
Setpoint1 N
Result of voltage-drop testTest passed
Requirements, voltage dropU1 ≤ 3.2 mV; U2 ≤ 1.5 x U1
Result of temperature-rise testTest passed
Requirement temperature-rise testIncrease in temperature ≤ 45 K
Short circuit stability resultTest passed
Conductor cross section short circuit testing2.5 mm²
Short-time current0.3 kA
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width5.2 mm
End cover width1.5 mm
Length63.5 mm
Height NS 35/7,547 mm
Height NS 35/1554.5 mm
Height NS 3252 mm

Connection data

Connection1 level
Connection MethodScrew connection
Screw threadM3
Stripping length8 mm
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible14
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1.5 mm²
Cross section with insertion bridge, solid max.2.5 mm²
Cross section with insertion bridge, stranded max.2.5 mm²
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1.5 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum0.5 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum1 mm²
Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum0.25 mm²
Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum1.5 mm²
Internal cylindrical gageA3

Ambient conditions

Operating Temperature-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
Accessories
  • Phoenix Contact2775113
    2775113
    D-UDK 4 - End cover, depth: 35.9 mm, width: 1.5 mm, height: 63.5 mm, color: gray
  • Phoenix Contact0201595
    0201595
    FB-150 METER - Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long
  • Phoenix Contact2303543
    2303543
    Short-circuit connector - KSS 5
  • Phoenix Contact0201647
    0201647
    Reducing plug - RPS
  • Phoenix Contact2770215
    2770215
    TS-KK 3 - Separating plate, depth: 16 mm, width: 0.5 mm, height: 14 mm, color: gray
  • Phoenix Contact1007219
    1007219
    SBS 5:UNBEDRUCKT, Marker card, Card, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, perforated, mounting type: snap into tall marker groove, snap into flat marker groove, for terminal block width: 5 mm, lettering field size: 6 x 5.1 mm
  • Phoenix Contact3000515
    3000515
    Fixed bridge - FBRI 20-5 N
  • Phoenix Contact3000476
    3000476
    Fixed bridge - FBRI 16-5 N
  • Phoenix Contact3000434
    3000434
    Fixed bridge - FBRI 12-5 N
  • Phoenix Contact3000227
    3000227
    Fixed bridge - FBRI 2-5 N
  • Phoenix Contact3000201
    3000201
    Fixed bridge - FBRI 3-5 N
  • Phoenix Contact3000191
    3000191
    Fixed bridge - FBRI 4-5 N
  • Phoenix Contact2770642
    2770642
    Fixed bridge - FBRI 10-5 N
  • Phoenix Contact3006823
    3006823
    Fixed bridge - FBRI 40-5 N
  • Phoenix Contact2303158
    2303158
    Insertion bridge, pitch: 5.2 mm, number of positions: 3, color: gray
  • Phoenix Contact2303145
    2303145
    EBL 2- 5 - Insertion bridge, pitch: 5.2 mm, number of positions: 2, color: gray
  • Phoenix Contact2303132
    2303132
    EBL 10- 5 - Insertion bridge, pitch: 5.2 mm, number of positions: 10, color: gray
  • Phoenix Contact2303239
    2303239
    Switching jumper - USBR 2-7
  • Phoenix Contact2305538
    2305538
    Switching jumper - USBRJ 2-7
  • Phoenix Contact1413230
    1413230
    Switching jumper - SBRN 2-7
  • Phoenix Contact1201002
    1201002
    NS 32 PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • Phoenix Contact1201015
    1201015
    NS 32 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • Phoenix Contact0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0801681
    0801681
    NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1204119
    1204119
    NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1204122
    1204122
    NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact0801704
    0801704
    NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206421
    1206421
    DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206434
    1206434
    NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206560
    1206560
    NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
  • Phoenix Contact1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0806602
    0806602
    NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
  • Phoenix Contact1204135
    1204135
    NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206599
    1206599
    NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206586
    1206586
    NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206573
    1206573
    NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
  • Phoenix Contact1201798
    1201798
    NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
  • Phoenix Contact1050004
    1050004
    Zack marker strip - ZB 5 :UNBEDRUCKT
  • Phoenix Contact1050017
    1050017
    1050017 -
  • Phoenix Contact1050020
    1050020
    Zack marker strip - ZB 5,QR:FORTL.ZAHLEN
  • Phoenix Contact1050033
    1050033
    Zack marker strip - ZB 5,LGS:GLEICHE ZAHLEN
  • Phoenix Contact1050415
    1050415
    Zack marker strip - ZB 5,LGS:L1-N,PE
  • Phoenix Contact0818108
    0818108
    Marker for terminal blocks - UC-TM 5
  • Phoenix Contact0824581
    0824581
    Marker for terminal blocks - UC-TM 5 CUS
  • Phoenix Contact0828734
    0828734
    Marker for terminal blocks - UCT-TM 5
  • Phoenix Contact3022218
    3022218
    CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
  • Phoenix Contact3022276
    3022276
    CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
  • Phoenix Contact0800886
    0800886
    E/NS 35 N - End clamp, width: 9.5 mm, color: gray
  • Phoenix Contact0201304
    0201304
    Female test connector - PSBJ 3/13/4
  • Phoenix Contact0601292
    0601292
    Female test connector - PSB 3/10/4
  • Phoenix Contact1201442
    1201442
    E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
  • Phoenix Contact1201413
    1201413
    E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
