Phoenix Contact 2775207
AllConnectorsTerminal blocksScrew connection

2775207

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX2775207
MPN
UDK 4-DUR
Weight
0.015 kg
Series UDK

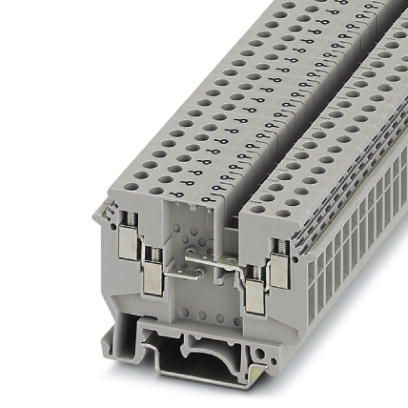

UDK 4-DUR - Feed-through terminal block

Feed-through terminal block, for installing components that can be individually selected, nom. voltage: 630 V, nominal current: 32 A, 1 level, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting: NS 35/7,5, NS 35/15, NS 32, color: gray

  • The four-conductor connection enables user-friendly wiring
  • A voltage signal pick-off can be implemented in the measuring line using this terminal block, enabling the signal to be used as an analog signal for process computers
  • The constant circuits common in process automation transmit the measured values as a load-independent current of 0 - 20 mA
Technical Specifications

General

Number of rows1
Number of Connections4
Potentials1
Nominal cross section4 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V2
Mounting TypeNS 35/7,5
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.02 W
Maximum Load Current A
Nominal current IN32 A (the current is determined by the component used)
Nominal voltage UN630 V
Open side panelYes
Shock protection test specificationDIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protectionguaranteed
Finger protectionguaranteed
Result of surge voltage testTest passed
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint3 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)Test passed
Result of flexion and pull-out testTest passed
Bending test conductor cross section/weight0.2 mm² / 0.2 kg
Bending test conductor cross section/weight4 mm² / 0.9 kg
Bending test conductor cross section/weight6 mm² / 1.4 kg
Tensile test resultTest passed
Result of tight fit on supportTest passed
Setpoint1 N
Result of voltage-drop testTest passed
Result of temperature-rise testTest passed
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Relative insulation material temperature index (Elec., UL 746 B)125 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C

Dimensions

Width6.2 mm
End cover width1.5 mm
Length63.5 mm
Height NS 35/7,547 mm
Height NS 35/1554.5 mm
Height NS 3252 mm

Connection data

Connection1 level
Connection MethodScrew connection
Screw threadM3
Stripping length8 mm
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.6 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.10
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.4 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1.5 mm²
Cross section with insertion bridge, solid max.2.5 mm²
Cross section with insertion bridge, stranded max.2.5 mm²
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1.5 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum0.5 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum1 mm²
Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum0.25 mm²
Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum1.5 mm²
Internal cylindrical gageA4

Ambient conditions

Operating Temperature-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
Accessories
  • Phoenix Contact2775113
    2775113
    D-UDK 4 - End cover, depth: 35.9 mm, width: 1.5 mm, height: 63.5 mm, color: gray
  • Phoenix Contact2770215
    2770215
    TS-KK 3 - Separating plate, depth: 16 mm, width: 0.5 mm, height: 14 mm, color: gray
  • Phoenix Contact1007222
    1007222
    Marker card - SBS 6:UNBEDRUCKT
  • Phoenix Contact1205053
    1205053
    Screwdriver - SZS 0,6X3,5
  • Phoenix Contact1302338
    1302338
    IS-K 4 - Bridge bar isolator, color: gray
  • Phoenix Contact0301505
    0301505
    Bridge - ISSBI 10- 6
  • Phoenix Contact0201650
    0201650
    Fixed bridge - FBI 100- 6
  • Phoenix Contact0203250
    0203250
    Fixed bridge - FBI 10- 6
  • Phoenix Contact0201867
    0201867
    Fixed bridge - FBI 20- 6
  • Phoenix Contact0201142
    0201142
    EB 3- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 3, color: gray
  • Phoenix Contact0201155
    0201155
    EB 2- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 2, color: gray
  • Phoenix Contact0201139
    0201139
    EB 10- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 10, color: gray
  • Phoenix Contact1201002
    1201002
    NS 32 PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • Phoenix Contact1201015
    1201015
    NS 32 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • Phoenix Contact0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0801681
    0801681
    NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1204119
    1204119
    NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1204122
    1204122
    NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact0801704
    0801704
    NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206421
    1206421
    DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206434
    1206434
    NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206560
    1206560
    NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
  • Phoenix Contact1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0806602
    0806602
    NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
  • Phoenix Contact1204135
    1204135
    NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206599
    1206599
    NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206586
    1206586
    NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206573
    1206573
    NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
  • Phoenix Contact1201798
    1201798
    NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
  • Phoenix Contact1051003
    1051003
    Zack marker strip - ZB 6:UNBEDRUCKT
  • Phoenix Contact0824992
    0824992
    Zack marker strip - ZB 6 CUS
  • Phoenix Contact1051016
    1051016
    1051016 -
  • Phoenix Contact1051032
    1051032
    Zack marker strip - ZB 6,LGS:GLEICHE ZAHLEN
  • Phoenix Contact1051414
    1051414
    1051414 -
  • Phoenix Contact1051430
    1051430
    Marker for terminal blocks - ZB 6,LGS:U-N
  • Phoenix Contact0818085
    0818085
    Marker for terminal blocks - UC-TM 6
  • Phoenix Contact0824589
    0824589
    Marker for terminal blocks - UC-TM 6 CUS
  • Phoenix Contact0828736
    0828736
    Marker for terminal blocks - UCT-TM 6
  • Phoenix Contact3022218
    3022218
    CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
  • Phoenix Contact3022276
    3022276
    CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
  • Phoenix Contact0800886
    0800886
    E/NS 35 N - End clamp, width: 9.5 mm, color: gray
  • Phoenix Contact1201442
    1201442
    E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
  • Phoenix Contact1201413
    1201413
    E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
