Phoenix Contact 2770846
AllConnectorsTerminal blocksScrew connection
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
UKK 3-MSTBVH-5,08
Weight
0.01 kg
Series UKK

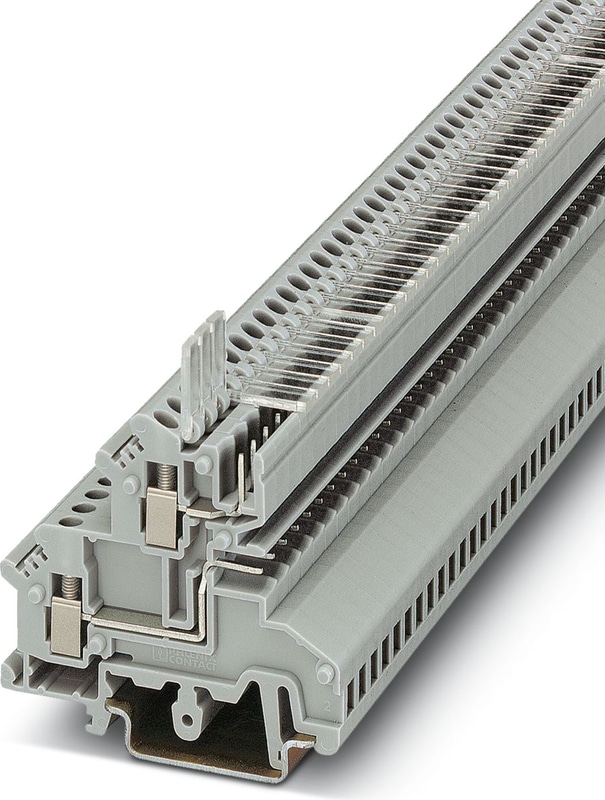

UKK 3-MSTBVH-5,08 - Double-level terminal block

Double-level terminal block, nom. voltage: 250 V, nominal current: 12 A, number of connections: 4, number of positions: 1, connection method: Screw/plug-in connection, 1st and 2nd level connection left, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray

Technical Specifications

Notes

GeneralCurrent and voltage are determined by the plug used.

Product properties

Product familyUKK 3-MSTB
Number of Positions1
Pitch5.08 mm
Number of Connections4
Number of rows2
Potentials2

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage4 kV
Maximum power dissipation for nominal condition0.77 W

Connection data

Nominal cross section2.5 mm²
Rated cross section AWG12

1st and 2nd level connection left

Screw threadM3
Tightening torque0.5 ... 0.6 Nm
Stripping length8 mm
Internal cylindrical gageA3
Conductor cross section rigid0.2 mm² ... 4 mm²
Cross section AWG24 ... 12 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]24 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 0.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1 mm²
Nominal Current12 A
Maximum Load Current12 A (with 4 mm² conductor cross section)
Nominal Voltage250 V

Dimensions

Width5.08 mm
End cover width2.5 mm
Height50 mm
Depth on NS 35/7,552.5 mm
Pitch5.08 mm

Material specifications

Colorgray
Flammability rating according to UL 94V2
Insulating material groupI
Insulating materialPA
Contact surfaceTin Sn
Static insulating material application in cold-40 °C
Relative insulation material temperature index (Elec., UL 746 B)125 °C

Surge voltage test

Test voltage setpoint4.8 kV
ResultTest passed
Short-time withstand current 1 mm²0.12 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint1.5 kV
ResultTest passed

Mechanical data

Open side panelYes

Attachment on the carrier

DIN rail/fixing supportNS 32/NS 35
Test force setpoint1 N
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Oscillation/broadband noise

SpecificationDIN EN 50155 (VDE 0115-200):2022-06
SpectrumService life test category 1, class B, body mounted
Frequencyf1 = 5 Hz to f2 = 150 Hz
ASD level0.964 (m/s²)²/Hz
Acceleration0.58g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed

Shocks

SpecificationDIN EN 50155 (VDE 0115-200):2022-06
Pulse shapeHalf-sine
Acceleration5g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
Mounting TypeNS 32
Accessories
  • Phoenix Contact2770875
    2770875
    D-UKK 3-MSTBVH-5,08 - End cover, pitch: 5.08 mm, depth: 52.3 mm, width: 2.5 mm, height: 56.7 mm, number of positions: 1, color: gray
  • Phoenix Contact2770862
    2770862
    D-UKK 3-MSTBVH-5,08 L - End cover, pitch: 5.08 mm, depth: 52.3 mm, width: 2.5 mm, height: 56.7 mm, number of positions: 1, color: gray
  • Phoenix Contact1007219
    1007219
    SBS 5:UNBEDRUCKT, Marker card, Card, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, perforated, mounting type: snap into tall marker groove, snap into flat marker groove, for terminal block width: 5 mm, lettering field size: 6 x 5.1 mm
  • Phoenix Contact1205053
    1205053
    Screwdriver - SZS 0,6X3,5
  • Phoenix Contact2303145
    2303145
    EBL 2- 5 - Insertion bridge, pitch: 5.2 mm, number of positions: 2, color: gray
  • Phoenix Contact2303158
    2303158
    Insertion bridge, pitch: 5.2 mm, number of positions: 3, color: gray
  • Phoenix Contact1201002
    1201002
    NS 32 PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • Phoenix Contact1201015
    1201015
    NS 32 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • Phoenix Contact0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0801681
    0801681
    NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1204119
    1204119
    NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1204122
    1204122
    NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact0801704
    0801704
    NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206421
    1206421
    DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206434
    1206434
    NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206560
    1206560
    NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
  • Phoenix Contact1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0806602
    0806602
    NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
  • Phoenix Contact1204135
    1204135
    NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206599
    1206599
    NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206586
    1206586
    NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206573
    1206573
    NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
  • Phoenix Contact1201798
    1201798
    NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
  • Phoenix Contact0809793
    0809793
    Zack marker strip - ZB 5,08:UNBEDRUCKT
  • Phoenix Contact0809803
    0809803
    Zack marker strip - ZB 5,08,LGS:FORTL.ZAHLEN
  • Phoenix Contact0809858
    0809858
    0809858 -
  • Phoenix Contact0809832
    0809832
    Zack marker strip - ZB 5,08,LGS:L1-N,PE
  • Phoenix Contact0809845
    0809845
    0809845 -
  • Phoenix Contact3022218
    3022218
    CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
  • Phoenix Contact3022276
    3022276
    CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
  • Phoenix Contact0800886
    0800886
    E/NS 35 N - End clamp, width: 9.5 mm, color: gray
  • Phoenix Contact1201442
    1201442
    E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
  • Phoenix Contact1201413
    1201413
    E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
