Phoenix Contact PSM-ME-RS232/RS485-P
AllIndustrial communication & NetworkingFieldbus communicationMedia converters and isolators
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
2744416
Weight
0.206 kg
Series PSM-ME-RS

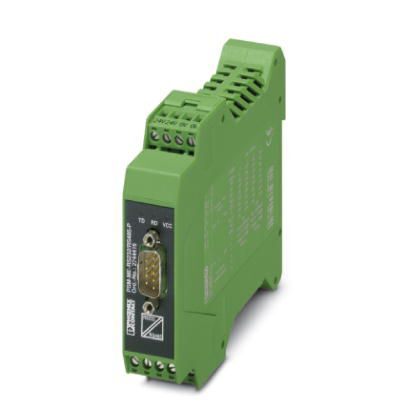

Interface converter - PSM-ME-RS232/RS485-P

Interface converter, for converting RS-232 (V.24) to RS-422 (V.11) and RS-485, with electrical isolation, 2 channels, rail-mountable

  • RS-422 4-wire point-to-point operation
  • Mounting on standard EN DIN rails
  • Transmission speed of 4.8 Kbps ... 115.2 Kbps
  • High-quality 3-way isolation between power supply, RS-232, and RS-422/RS-485 for safe decoupling of potentials with 2 kV
  • RS-485 2-wire operation, half duplex
  • RS-485 4-wire operation, full duplex
  • Automatic RS-485 transmit/receive changeover
  • Integrated data indicator for dynamic indication of transmit and receive data
  • Integrated surge protection with transient discharge to the DIN rail
  • Shipbuilding approval in accordance with DNV GL and ABS
Technical Specifications

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area
Utilization restrictionUse in potentially explosive areas is not permitted in China.

Dimensions

CaptionSlim design
Width22.5 mm
Height99 mm
Depth114.5 mm

Ambient conditions

Ambient Temperature (Operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Altitude≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
Degree of ProtectionIP20
Noise immunityEN 61000-6-2:2005

General

Transmission channels2 (1/1), RxD, TxD, full duplex
Bit delay≤ 2.5 µs
Bit distortion≤ 5 %
Electrical isolationVCC // V.24 (RS-232) // RS-485
Test voltage data interfaces1.5 kV AC
Test voltage data interface/power supply1.5 kV AC
Test voltage data interface/power supply1.5 kV AC
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 61000-6-4
Mounting TypeDIN rail mounting
Net weight196.1 g
Housing MaterialPA 6.6-FR
Colorgreen
MTBF10 Years (Telcordia standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day))
MTTF1654 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
MTTF746 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
MTTF310 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
Degree of pollution2

Power supply

Nominal Supply Voltage24 V AC/DC
Supply Voltage Range18 V AC/DC ... 30 V AC/DC (via pluggable COMBICON screw terminal block)
Max. current consumption100 mA
Typical current consumption85 mA (24 V DC)
Conductor cross section flexible max.2.50 mm²
Conductor cross section flexible min.0.20 mm²
Conductor cross section solid max.2.50 mm²
Conductor cross section solid min.0.20 mm²
Max. AWG conductor cross section, flexible12
Min. AWG conductor cross section, flexible24
Conductor cross section AWG max.12
Conductor cross section AWG min.24

Interfaces

Interface 1V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
Connection MethodD-SUB 9 plug
Transmission length15 m (shielded twisted pair)
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Pin assignmentDTE/DCE switchover via switch
Protocols Supportedtransparent protocol
Serial transmission speed1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 31.25; 38.4; 57.6; 75; 93.75; 115.2 kbps
Interface 2RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
Connection MethodPluggable screw connection
Transmission length1200 m (shielded twisted pair)
Termination resistor390 Ω
Termination resistor150 Ω
Termination resistor390 Ω (Can be connected)
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.13
Protocols Supportedtransparent protocol
Serial transmission speed1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 75; 93.75; 115.2 kbps
Interface 3RS-485 interface in acc. with EIA/TIA-485, DIN 66259-1
Connection MethodPluggable screw connection
Data direction switchingAutomatic control or via RTS/CTS
Transmission length1200 m (shielded twisted pair)
Termination resistor390 Ω
Termination resistor150 Ω
Termination resistor390 Ω (Can be connected)
Conductor cross section flexible max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section AWG max.14
Conductor cross section AWG min.24
Protocols Supportedtransparent protocol
Serial transmission speed1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 75; 93.75; 115.2 kbps

Conformance/approvals

DesignationCE
CertificateCE-compliant
DesignationEAC
IdentificationEAC
DesignationATEX
Identification??? II 3 G Ex nA IIC T4 Gc
CertificateIBExU16ATEXB004 X
Additional textPlease follow the special installation instructions in the documentation!
DesignationIECEx
IdentificationEx nA IIC T4 Gc
CertificateIECEx IBE 15.0034X
DesignationUL, USA / Canada
Identification508 Recognized
IdentificationClass I, Div. 2, Groups A, B, C, D
IdentificationClass I, Zone 2, AEx nA IIC T4
IdentificationClass I, Zone 2, Ex nA IIC T4 Gc X
DesignationKC approval for South Korea
CertificateMSIP-REI-PCK-ME2744416
DesignationCorrosive gas test
IdentificationISA-S71.04-1985 G3 Harsh Group A
DesignationShipbuilding
IdentificationDNV GL
IdentificationABS
TemperatureB
HumidityA
VibrationA
EMCB
EnclosureRequired protection according to the Rules shall be provided upon installation on board

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Type of testFree fall in acc. with IEC 60068-2-32
Test result1 m
Type of testVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test result5g, 10...150 Hz, 2.5 h, in XYZ direction
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result25g, 11 ms period, half-sine shock pulse
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2:2005
Standards/regulationsEN 61000-4-2
Contact discharge± 6 kV (Test Level 3)
Standards/regulationsEN 61000-4-3
Frequency Range26 MHz ... 3 GHz (Test Level 3)
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-4-5
Signal± 1 kV (Data line, asymmetrical)
Standards/regulationsEN 55011
Standards/regulationsEN 61000-4-6
Frequency Range0.15 MHz ... 80 MHz

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50 years
China RoHSFor details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Accessories
  • Phoenix ContactPSM-KA9SUB9/BB/2METER
    PSM-KA9SUB9/BB/2METER
    2799474 - RS-232 cable, 9-pos. D-SUB socket on 9-pos. D-SUB socket, 9-wire, 1:1
  • Phoenix ContactME-SAS
    ME-SAS
    2853899 - Shield connection clamp for terminal points starting from 2.5 mm2
  • Phoenix ContactSZF 1-0,6X3,5
    SZF 1-0,6X3,5
    1204517 - Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip
  • Phoenix ContactPSI-TERMINATOR-PB-TBUS
    PSI-TERMINATOR-PB-TBUS
    2702636 - Active termination resistor for PROFIBUS and RS-485 bus systems, redundant power supply, routing of the supply voltage via DIN rail connector, electrical isolation, switchable termination, integrated programming interface
  • Phoenix ContactSUBCON 9/F-SH
    SUBCON 9/F-SH
    2761499 - D-SUB plug, 9-pos. female connector, one 35° cable entry, universal type for all systems, pin assignment: 1, 2, 3, 4, 5, 6, 7, 8, 9 to screw connection terminal block
