Series PSM-ME-RS

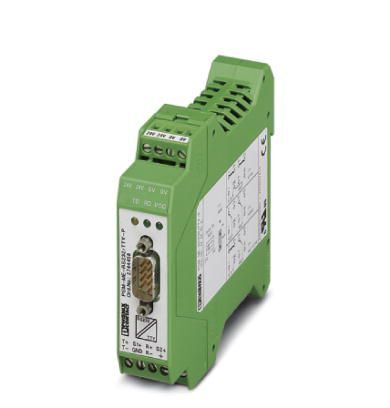

Interface converter - PSM-ME-RS232/TTY-P
Interface converter, for converting RS-232 (V.24) to TTY, with electrical isolation, 2 channels, rail-mountable
- Mounting on standard EN DIN rails
- Transmission distances of up to 1000 m in active TTY mode
- High-quality 3-way isolation up to 2 kV (VCC // RS-232 // TTY)
- In the case of variable cable lengths, the TTY connection on the field side can be established conveniently using plug-in screw terminal blocks
- Integrated surge protection with transient discharge to the DIN rail
- Conversion of RS-232 TxD/RxD full duplex data signals to the TTY current loop standard
- Semi-active, active or passive TTY mode, depending on pin assignment
- 24 V DC or AC power supply suitable for the control cabinet
- Active data transmission indicated by separate data indicators for the transmit and receive channels
- RS-232 connection via 9-pos. D-SUB and standard RS-232 cable
- Transmission speed of up to 19.2 kbps
- Shipbuilding approval in accordance with DNV GL
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
| Utilization restriction | Use in potentially explosive areas is not permitted in China. |
Dimensions
| Caption | Slim design |
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 118.6 mm |
Ambient conditions
| Ambient Temperature (Operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Degree of Protection | IP20 |
| Noise immunity | EN 61000-6-2:2005 |
General
| Transmission channels | 2 (1/1), RxD, TxD, full duplex |
| Bit delay | < 3 µs |
| Bit distortion | < 5 % |
| Electrical isolation | VCC // V.24 (RS-232) // TTY |
| Test voltage data interfaces | 2 kV AC |
| Test voltage data interface/power supply | 2 kV AC |
| Test voltage data interface/power supply | 2 kVrms (50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4 |
| Mounting Type | DIN rail mounting |
| Net weight | 179.6 g |
| Housing Material | PA |
| Color | green |
| MTBF | 1989 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| MTBF | 410 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
Power supply
| Nominal Supply Voltage | 24 V AC/DC ±20 % (via pluggable COMBICON screw terminal block) |
| Typical current consumption | 75 mA (24 V DC) |
| Protective circuit | Surge protection Suppressor diode |
Interfaces
| Interface 1 | V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1 |
| Connection Method | D-SUB 9 plug |
| Transmission length | 15 m (shielded twisted pair) |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 13 |
| Pin assignment | DTE/DCE switchover via switch |
| Protocols Supported | transparent protocol |
| Serial transmission speed | ≤ 19.2 kbps |
| Interface 2 | TTY interface, CL2 in acc. with DIN 66348-1 |
| Operating mode | Active, semi active, passive |
| Connection Method | Pluggable screw connection |
| Transmission length | 1000 m (shielded twisted pair) |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 13 |
| Load/Output Load Current Output | ≤ 500 Ω |
| Impedance | ≤ 117 Ω (Output) |
| Impedance | 126 Ω (Input) |
| Serial transmission speed | ≤ 19.2 kbps |
| Output Current | 2x 20 mA ±10 % (Loop current) |
Conformance/approvals
| Designation | CE |
| Certificate | CE-compliant |
| Designation | EAC |
| Identification | EAC |
| Designation | UL, USA / Canada |
| Identification | 508 Recognized |
| Identification | Class I, Div. 2, Groups A, B, C, D |
| Identification | Class I, Zone 2, AEx nA IIC T4 |
| Identification | Class I, Zone 2, Ex nA IIC T4 Gc X |
| Designation | Corrosive gas test |
| Identification | ISA-S71.04-1985 G3 Harsh Group A |
| Designation | Shipbuilding |
| Identification | DNV GL |
| Temperature | B |
| Humidity | A |
| Vibration | A |
| EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 6 kV (Test Level 3) |
| Standards/regulations | EN 61000-4-3 |
| Frequency Range | Test Level 3 |
| Standards/regulations | EN 61000-4-4 |
| Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 |
| Signal | ± 2 kV (42 Ω) |
| Standards/regulations | EN 55011 |
| Standards/regulations | EN 61000-4-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
2799474 - RS-232 cable, 9-pos. D-SUB socket on 9-pos. D-SUB socket, 9-wire, 1:1
1204517 - Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip
2761499 - D-SUB plug, 9-pos. female connector, one 35° cable entry, universal type for all systems, pin assignment: 1, 2, 3, 4, 5, 6, 7, 8, 9 to screw connection terminal block
