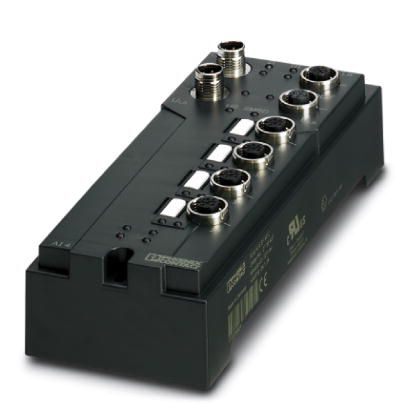

Distributed I/O device - FLM AI 4 SF M12

The local bus device has 4 analog inputs. Functions: 3 current and 4 voltage measuring ranges, 500 kbaud/2 Mbaud selection, PCP or process data communication, channel-specific diagnostics, short-circuit/overload protection, M12 fast connection technology.

Flexible power supply concept
SPEEDCON fast locking system
Short-circuit and overload protection
Diagnostic and status indicators
Consistent connection via M12 connectors

Dimensions

Width	70 mm
Height	178 mm
Depth	50 mm
Drill hole spacing	168 mm

Ambient conditions

Ambient Temperature (Operation)	-25 °C ... 60 °C
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (operation)	95 %
Permissible humidity (storage/transport)	95 %
Air pressure (operation)	80 Pa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of Protection	IP65/IP67

General

Mounting Type	Wall mounting
Color	anthracite
Net weight	280 g

Interfaces

Designation	Fieldline local bus
Connection Method	M12 connector, B-coded
Transmission Speed	500 kbps / 2 Mbps

Power supply for module electronics

Supply Voltage	24 V DC
Supply Voltage Range	18 V DC ... 30 V DC (including ripple)

Fieldline potentials

Voltage supply U_L	24 V DC (including ripple)
Power supply at U_L	max. 4 A
Current consumption from U_L	max. 100 mA (At 2 Mbaud)
Current consumption from U_L	typ. 70 mA
Voltage supply U_S	24 V DC
Power supply at U_S	max. 4 A
Current consumption from U_S	typ. 5 mA (plus power supply for sensors)
Current consumption from U_S	max. 400 mA

Analog inputs

Input name	Analog inputs
Number of Inputs	max. 4 (differential inputs, voltage or current)
Connection Method	M12 connector
Connection technology	2-, 4-conductor
Type of protection	Reverse polarity protection
Current Input Signal	0 mA ... 20 mA
Current Input Signal	4 mA ... 20 mA
Current Input Signal	-20 mA ... 20 mA
Voltage input signal	0 V ... 5 V
Voltage input signal	-5 V ... 5 V
Voltage input signal	0 V ... 10 V
Voltage input signal	-10 V ... 10 V

Electrical isolation

Test section

To I/O 500 V AC

Standards and Regulations

Mechanical tests	Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Load 30g, half sine wave, positive and negative per direction
Mechanical tests	Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g in each space direction
Protection class	III (IEC 61140, EN 61140, VDE 0140-1)

Environmental Product Compliance

REACh SVHC	Lead 7439-92-1
China RoHS	Environmentally friendly use period: unlimited = EFUP-e
China RoHS	No hazardous substances above threshold values

0809735
Zack Marker strip, flat - ZBF 12:UNBEDRUCKT
1507065
SAC-5P-M12MSB/ 2,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 2 m
1507078
SAC-5P-M12MSB/ 5,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 5 m
1507081
SAC-5P-M12MSB/10,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 10 m
1507094
SAC-5P-M12MSB/15,0-900 - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on free cable end, cable length: 15 m
1507117
Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded, free cable end, on Socket straight M12, coding: B, cable length: 2 m
1507120
SAC-5P- 5,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), free cable end, on Socket straight M12, coding: B, cable length: 5 m
1507133
SAC-5P-10,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), free cable end, on Socket straight M12, coding: B, cable length: 10 m
1507146
SAC-5P-15,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), free cable end, on Socket straight M12, coding: B, cable length: 15 m
1507162
SAC-5P-M12MSB/ 0,3-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 0.3 m
1507175
SAC-5P-M12MSB/ 0,5-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 0.5 m
1507188
SAC-5P-M12MSB/ 1,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 1 m
1507191
Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded, Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 2 m
1507201
SAC-5P-M12MSB/ 5,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 5 m
1507214
SAC-5P-M12MSB/10,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 10 m
1507227
SAC-5P-M12MSB/15,0-900/M12FSB - Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded (Braided copper wires), Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 15 m
1518326
Sensor/actuator cable - SAC-5P-MS/ 2,0-186 SCO
1518339
Sensor/actuator cable - SAC-5P-MS/ 5,0-186 SCO
1518342
Sensor/actuator cable - SAC-5P-MS/10,0-186 SCO
1518355
Sensor/actuator cable - SAC-5P-MS/15,0-186 SCO
1518368
Sensor/actuator cable - SAC-5P- 2,0-186/FS SCO
1518371
Sensor/actuator cable - SAC-5P- 5,0-186/FS SCO
1518384
Sensor/actuator cable - SAC-5P-10,0-186/FS SCO
1518397
Sensor/actuator cable - SAC-5P-15,0-186/FS SCO
1518407
Sensor/actuator cable - SAC-5P-MS/ 0,3-186/FS SCO
1518410
Sensor/actuator cable - SAC-5P-MS/ 0,5-186/FS SCO
1518423
Sensor/actuator cable - SAC-5P-MS/ 1,0-186/FS SCO
1518436
Sensor/actuator cable - SAC-5P-MS/ 2,0-186/FS SCO
1518449
Sensor/actuator cable - SAC-5P-MS/ 5,0-186/FS SCO
1518452
Sensor/actuator cable - SAC-5P-MS/10,0-186/FS SCO
1518465
Sensor/actuator cable - SAC-5P-MS/15,0-186/FS SCO
1507764
Data connector, PROFIBUS, INTERBUS, 5-position, shielded, Plug straight M12, coding: B, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6.5 mm ... 8.5 mm
1507777
SACC-M12FSB-5CON-PG9 SH AU - Data connector, PROFIBUS, INTERBUS, 5-position, shielded, Socket straight M12, coding: B, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6.5 mm ... 8.5 mm
0810038
ZBF 12:SO/CMS Marker 12mm, divisible, 5pos, special printing
1513570
SACC-M12MSB-5SC SH - Connector, 5-position, shielded, Plug straight M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1513596
SACC-M12FSB-5SC SH - Connector, 5-position, shielded, Socket straight M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1513583
SACC-M12MRB-5SC SH - Connector, 5-position, shielded, Plug angled M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1513606
SACC-M12FRB-5SC SH - Connector, 5-position, shielded, Socket angled M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
1508187
SACC-M12MS-5SC M - Connector, 5-position, Plug straight M12, coding: A, Spring-cage connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
1518481
Sensor/actuator cable - SAC-5P-MS/ 0,13-186/FS SCO
1518478
Sensor/actuator cable - SAC-5P-MSB/0,13-PUR/FSB SCO SH
